56007
56008
92104
92104A
92106
92107
92110
92110A
92110B
92110C
92112

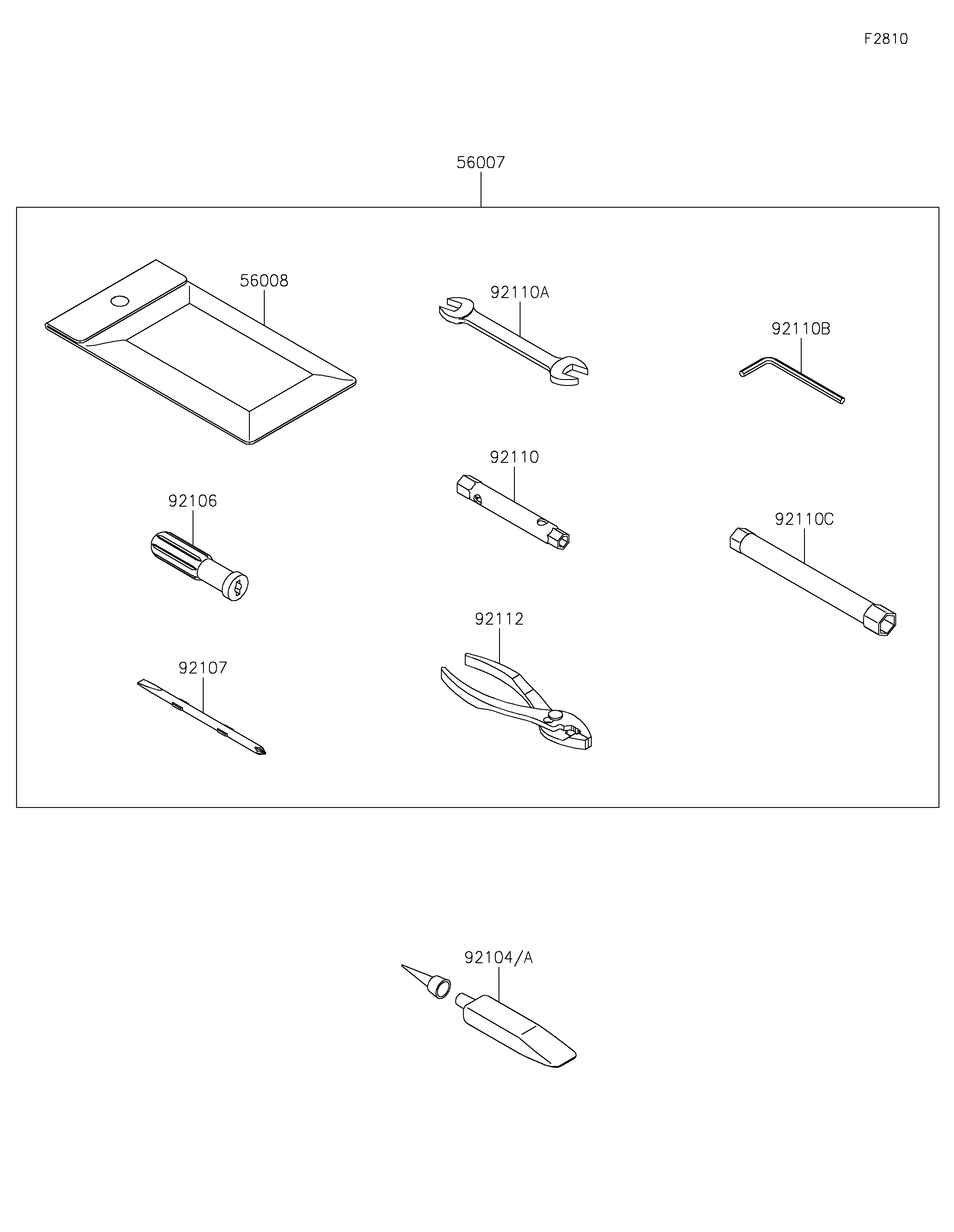

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOOL-KIT 56007 56007-0196 1
BAG,TOOL 56008 56008-0036 1
GASKET-LIQUID,TB1211F,CLEAR 92104 92104-0004 1
GASKET-LIQUID,TB1216B,BLACK 92104A 92104-1064 1
GRIP-SCREW DRIVER 92106 92106-0004 1
TOOL-DRIVER,#2PHILLIPS&SLOT 92107 92107-0019 1
TOOL-WRENCH,BOX,8X10 92110 92110-0049 1
TOOL-WRENCH,OPEN END,14X17 92110A 92110-0057 1
TOOL-WRENCH,ALLEN,4MM 92110B 92110-0567 1
TOOL-WRENCH,BOX,12MM 92110C 92110-0579 1
TOOL-PLIERS 92112 92112-0007 1
