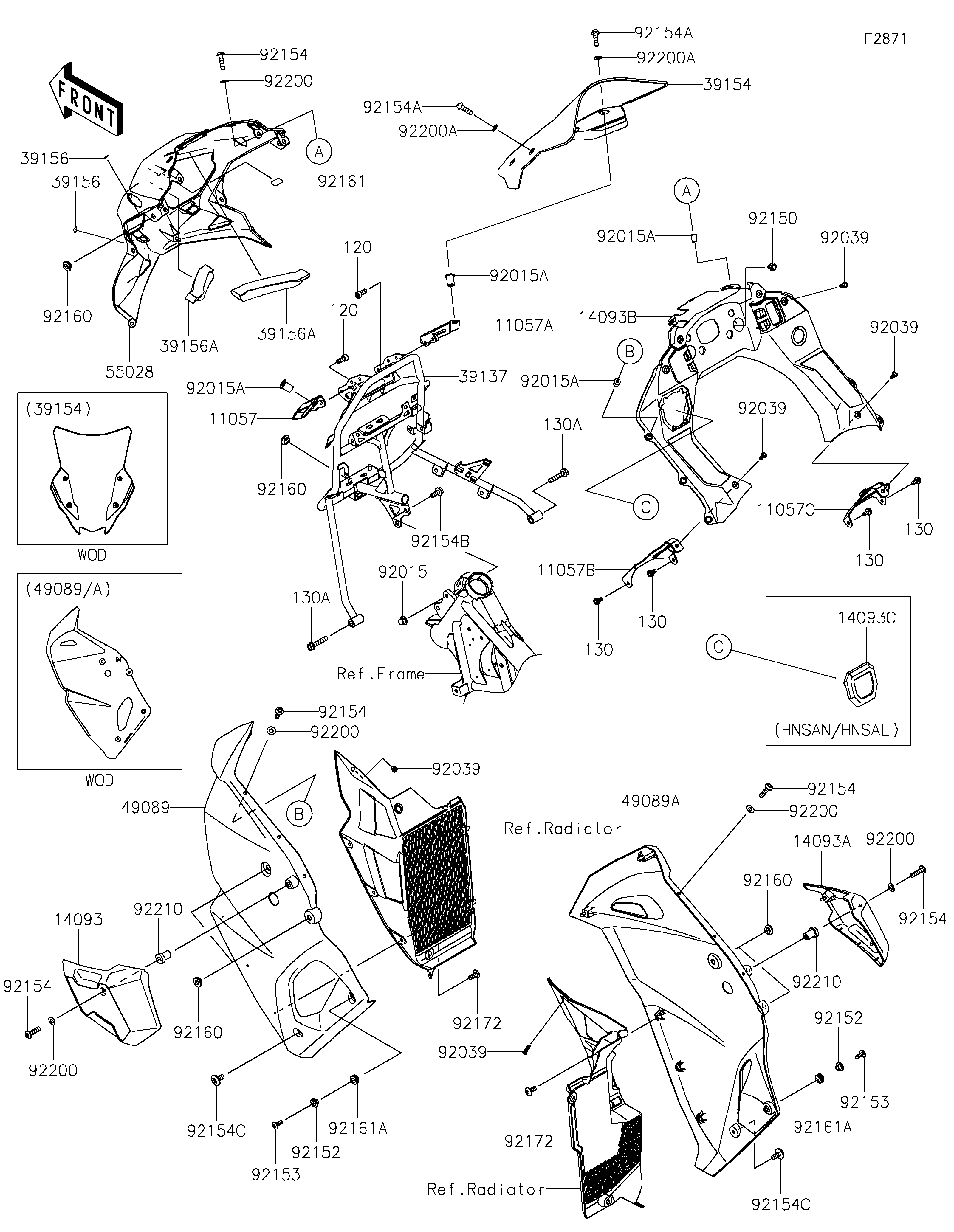

Parts Diagrams |
11057
11057A
11057B
11057C
14093
14093A
14093B
39137
39154
39156
39156
39156A
39156A
49089
49089A
55028
92015
92015A
92015A
92015A
92015A
92039
92039
92039
92039
92039
92150
92152
92152
92153
92153
92154
92154
92154
92154
92154
92154A
92154A
92154B
92154C
92154C
92160
92160
92160
92160
92161
92161A
92161A
92172
92172
92200
92200
92200
92200
92200
92200A
92200A
92210
92210
120
120
130
130
130
130
130A
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,WINDSHIELD,LH | 11057 | 11057-4397 | 1 | ||
| BRACKET,WINDSHIELD,RH | 11057A | 11057-4398 | 1 | ||
| BRACKET,DASHBOARD,LH | 11057B | 11057-7243 | 1 | ||
| BRACKET,DASHBOARD,RH | 11057C | 11057-7245 | 1 | ||
| COVER,SHROUD,LH | 14093 | 14093-1074 | 1 | ||
| COVER,SHROUD,RH | 14093A | 14093-1075 | 1 | ||
| COVER,DASHBOARD | 14093B | 14093-1076 | 1 | ||
| STAY-COMP,COWLING | 39137 | 39137-0712 | 1 | ||
| WINDSHIELD | 39154 | 39154-0391 | 1 | ||
| PAD,UPP COWLING,CNT | 39156 | 39156-0632 | 4 | ||
| PAD,20X15X150 | 39156A | 39156-2762 | 2 | ||
| SHROUD-ENGINE,LH,C.C.GRAY | 49089 | 49089-0995-63G | 1 | ||
| SHROUD-ENGINE,RH,C.C.GRAY | 49089A | 49089-0996-63G | 1 | ||
| COWLING,UPP | 55028 | 55028-0800 | 1 | ||
| NUT,CAP,8MM | 92015 | 92015-1151 | 2 | ||
| NUT,WELL,5MM | 92015A | 92015-1757 | 12 | ||
| RIVET | 92039 | 92039-0709 | 8 | ||
| BOLT,FLANGED,6X14 | 92150 | 92150-1689 | 2 | ||
| COLLAR | 92152 | 92152-2770 | 2 | ||
| BOLT,6X18 | 92153 | 92153-0816 | 2 | ||
| BOLT,SOCKET,5X20 | 92154 | 92154-0216 | 10 | ||
| BOLT,SOCKET,5X18 | 92154A | 92154-1945 | 4 | ||
| BOLT,SOCKET,8X20 | 92154B | 92154-2314 | 2 | ||
| BOLT,SOCKET,6X12 | 92154C | 92154-2355 | 2 | ||
| DAMPER | 92160 | 92160-1613 | 9 | ||
| DAMPER,12X23 | 92161 | 92161-1367 | 1 | ||
| DAMPER,10X18X6.5 | 92161A | 92161-2091 | 2 | ||
| SCREW,5X12 | 92172 | 92172-0821 | 6 | ||
| WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 10 | ||
| WASHER,5.2X10X1 | 92200A | 92200-2286 | 4 | ||
| NUT,5MM | 92210 | 92210-0001 | 2 | ||
| BOLT-SOCKET,5X12 | 120 | 120CB0512 | 4 | ||
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 4 | ||
| BOLT-FLANGED,8X40 | 130A | 130BA0840 | 2 |
