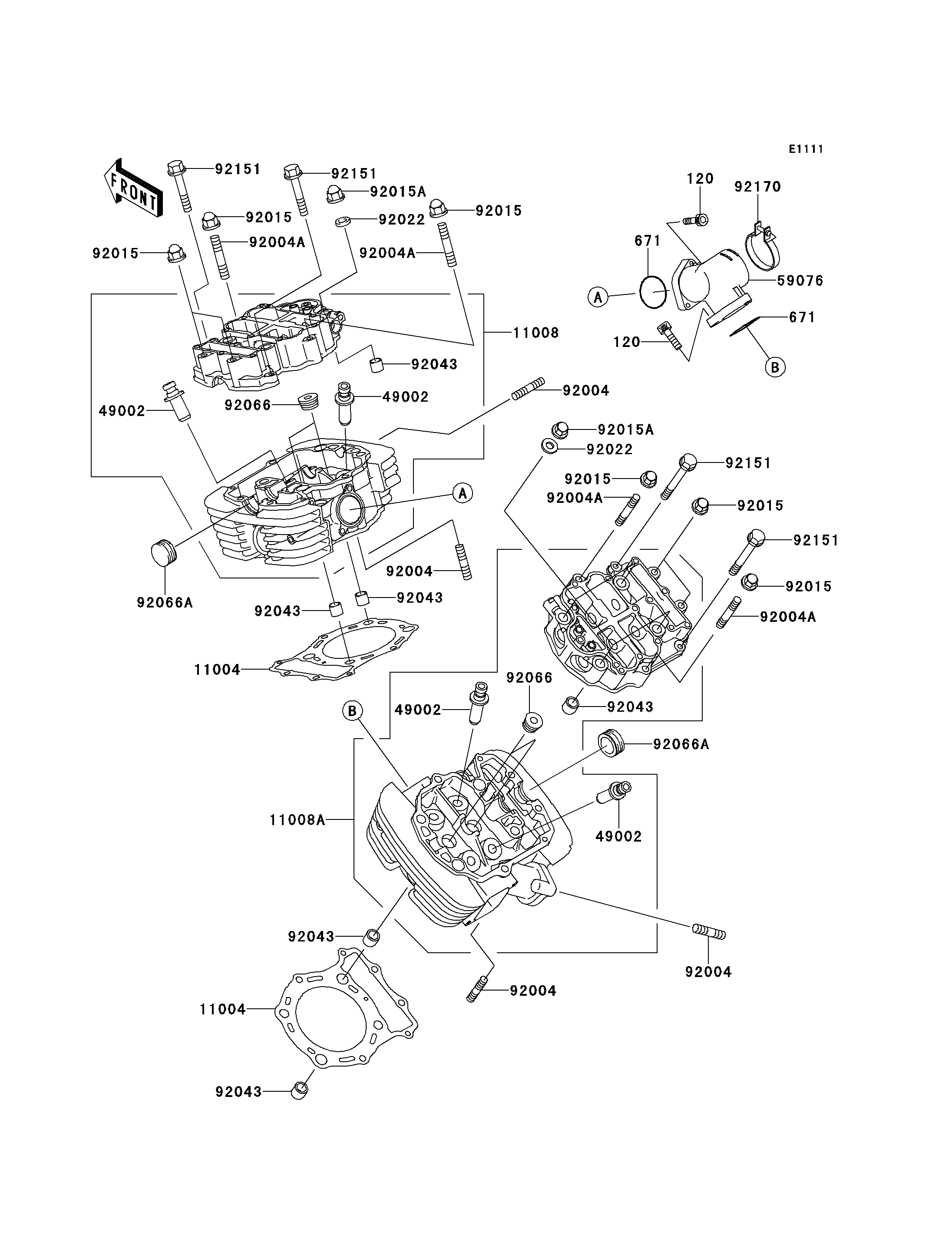

1999 Vulcan 1500 Nomad - Cylinder Head
120
120
671
671
11004
11004
11008
11008A
49002
49002
49002
49002
59076
92004
92004
92004
92004
92004A
92004A
92004A
92004A
92015
92015
92015
92015
92015
92015
92015A
92015A
92022
92022
92043
92043
92043
92043
92043
92043
92066
92066
92066A
92066A
92151
92151
92151
92151
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120Z0620 | 4 | ||
O RING | 671 | 671E2540 | 2 | ||
GASKET-HEAD | 11004 | 11004-1334 | 2 | ||
HEAD-COMP-CYLINDER,FR | 11008 | 11008-1352 | 1 | ||
HEAD-COMP-CYLINDER,RR | 11008A | 11008-1353 | 1 | ||
GUIDE-VALVE | 49002 | 49002-1088 | AR | ||
MANIFOLD-INTAKE | 59076 | 59076-1105 | 1 | ||
STUD,8X25 | 92004 | 92004-1214 | 8 | ||
STUD,8X46.5 | 92004A | 92004-1224 | 4 | ||
NUT,FLANGED,8MM | 92015 | 92015-1406 | 8 | ||
NUT,12MM | 92015A | 92015-1991 | 8 | ||
WASHER,12.3X25X3.2 | 92022 | 92022-1862 | 8 | ||
PIN,13X16X14 | 92043 | 92043-1608 | 8 | ||
PLUG,PT1/2X12.5 | 92066 | 92066-1253 | 4 | ||
PLUG | 92066A | 92066-1442 | 2 | ||
BOLT,6X115 | 92151 | 92151-1058 | 4 | ||
CLAMP | 92170 | 92170-1644 | 1 |
BOLT-SOCKET | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
O RING | |
REF # | 671 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET-HEAD | |
REF # | 11004 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HEAD-COMP-CYLINDER,FR | |
REF # | 11008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HEAD-COMP-CYLINDER,RR | |
REF # | 11008A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-VALVE | |
REF # | 49002 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
MANIFOLD-INTAKE | |
REF # | 59076 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STUD,8X25 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
STUD,8X46.5 | |
REF # | 92004A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
NUT,12MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
WASHER,12.3X25X3.2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PIN,13X16X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PLUG,PT1/2X12.5 | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X115 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
