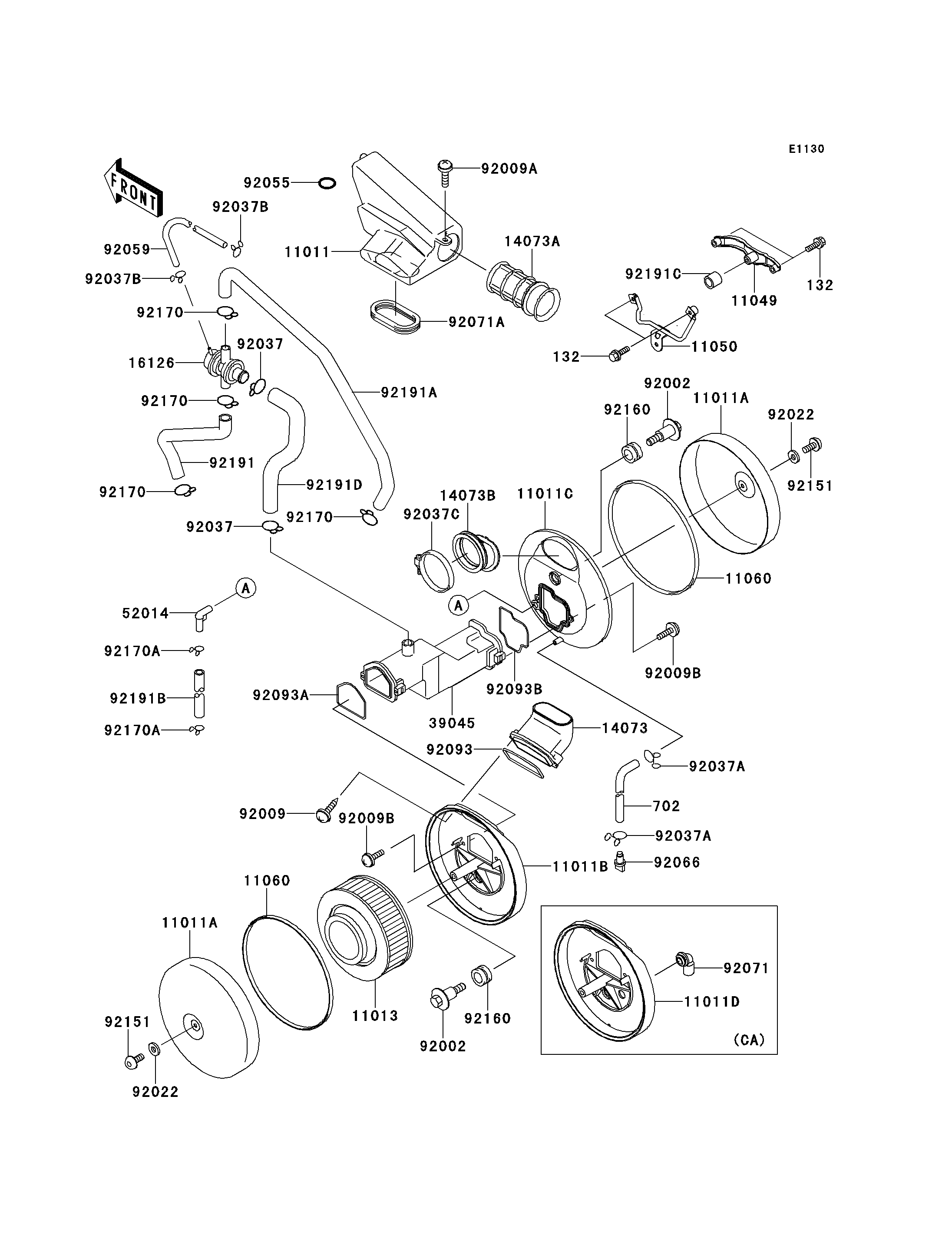

Parts Diagrams |
11011
11011
11011A
11011A
11011A
11011A
11011C
11011C
11013
11013
11049
11049
11050
11050
11060
11060
11060
11060
14073
14073
14073A
14073A
14073B
14073B
16126
16126
39045
39045
52014
52014
92002
92002
92002
92002
92009
92009
92009A
92009A
92009B
92009B
92009B
92009B
92022
92022
92022
92022
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037B
92037B
92037B
92037B
92037C
92037C
92055
92055
92059
92059
92066
92066
92071A
92071A
92093
92093
92093A
92093A
92093B
92093B
92151
92151
92151
92151
92160
92160
92160
92160
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92170A
92170A
132
132
132
132
702
702
92191
92191
92191A
92191A
92191B
92191B
92191C
92191C
92191D
92191D
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CASE-AIR FILTER,CENTER | 11011 | 11011-1488 | 1 | ||
CASE-AIR FILTER,OUTSIDE | 11011A | 11011-1489 | 2 | ||
CASE-AIR FILTER,RH | 11011C | 11011-1529 | 1 | ||
ELEMENT-AIR FILTER | 11013 | 11013-1248 | 1 | ||
BRACKET,AIR FILTER,RH | 11049 | 11049-1539 | 1 | ||
BRACKET,AIR FILTER,LH | 11050 | 11050-1510 | 1 | ||
GASKET,AIR FILTER CASE,LH | 11060 | 11060-1736 | 2 | ||
DUCT,AIR FILTER,LH | 14073 | 14073-1658 | 1 | ||
DUCT | 14073A | 14073-1660 | 1 | ||
DUCT,AIR FILTER,RH | 14073B | 14073-1712 | 1 | ||
VALVE,AIR SWITCH | 16126 | 16126-1356 | 1 | ||
DUCT-ASSY | 39045 | 39045-1056 | 1 | ||
ELBOW | 52014 | 52014-1083 | 1 | ||
BOLT | 92002 | 92002-1595 | 2 | ||
SCREW,TAPPING,5X16 | 92009 | 92009-1264 | 2 | ||
SCREW,6X14 | 92009A | 92009-1288 | 1 | ||
SCREW,5X20 | 92009B | 92009-1905 | 4 | ||
WASHER,6.5X20X1.6,WHITE | 92022 | 92022-193 | 2 | ||
CLAMP,TUBE | 92037 | 92037-1076 | 2 | ||
CLAMP,TUBE | 92037A | 92037-147 | 2 | ||
CLAMP | 92037B | 92037-1712 | 2 | ||
CLAMP | 92037C | 92037-1859 | 1 | ||
RING-O | 92055 | 92055-1282 | 1 | ||
TUBE,4X9X290 | 92059 | 92059-1133 | 1 | ||
PLUG,DRAIN | 92066 | 92066-1211 | 1 | ||
GROMMET | 92071A | 92071-1233 | 1 | ||
SEAL,AIR FILTER CASE | 92093 | 92093-1408 | 1 | ||
SEAL,DUCT,LH | 92093A | 92093-1459 | 1 | ||
SEAL,DUCT,RH | 92093B | 92093-1460 | 1 | ||
BOLT,6X14 | 92151 | 92151-1503 | 2 | ||
DAMPER | 92160 | 92160-1594 | 2 | ||
CLAMP,TUBE | 92170 | 92170-1445 | 4 | ||
CLAMP | 92170A | 92170-1695 | 2 | ||
BOLT-FLANGED-SMALL | 132 | 132J0625 | 4 | ||
TUBE-RUBBER | 702 | 702A07260 | 1 | ||
TUBE,HEAD,FR-AIR SWITCH | 92191 | 92191-1050 | 1 | ||
TUBE,HEAD,RR-AIR SWITCH | 92191A | 92191-1051 | 1 | ||
TUBE,BREATHER | 92191B | 92191-1054 | 1 | ||
TUBE,15.5X22.5X20 | 92191C | 92191-1089 | 1 | ||
TUBE,AIR SWITCH-DUCT | 92191D | 92191-1266 | 1 | ||
CASE-AIR FILTER,LH | 11011B | 11011-1528 | 1 | CNUS | |
CASE-AIR FILTER,LH | 11011D | 11011-1533 | 1 | CA | |
GROMMET,AIR FILTER | 92071 | 92071-1114 | 1 | CA |
