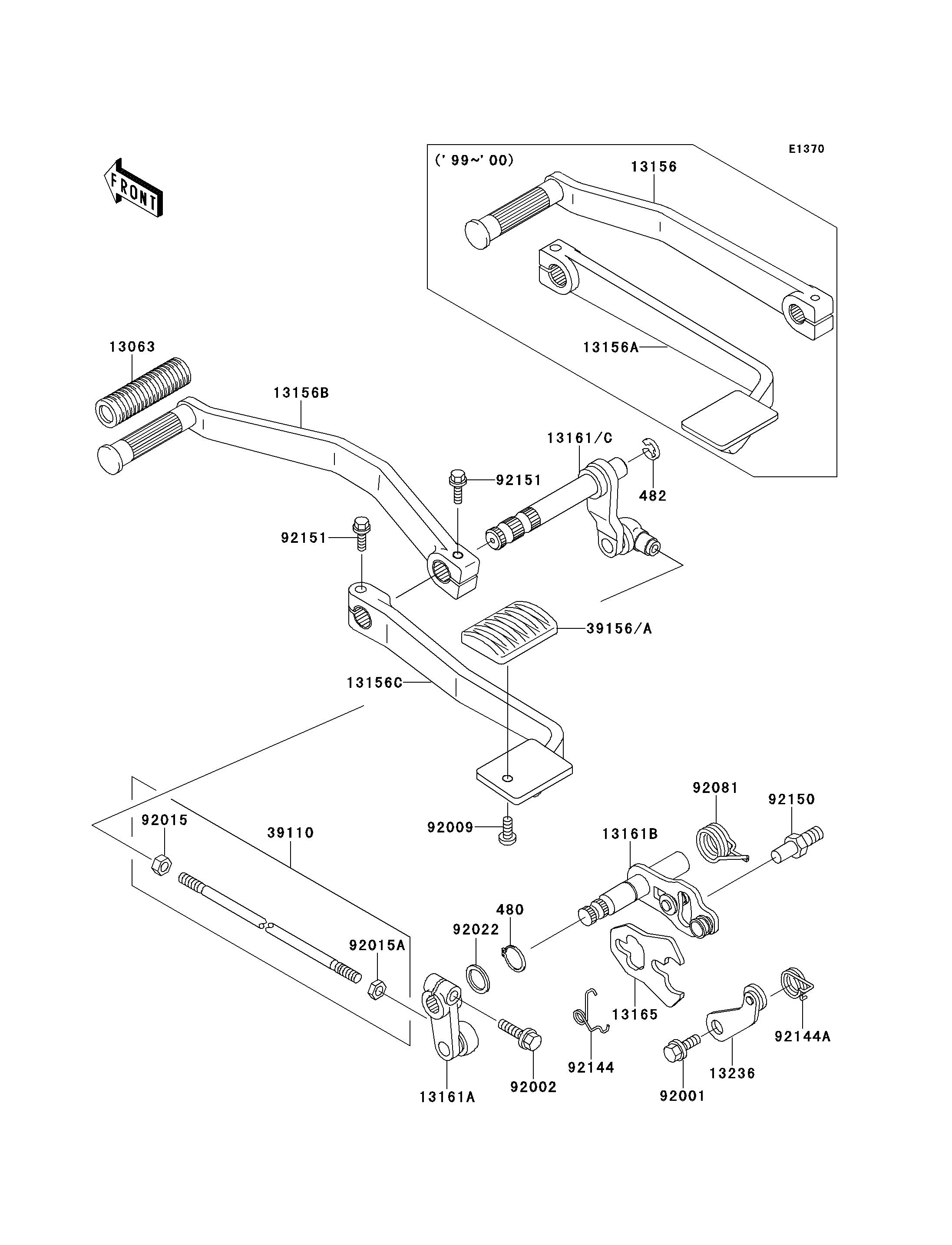

1999 Vulcan 1500 Nomad - Gear Change Mechanism
480
482
13063
13156
13156A
13161
13161A
13161B
13165
13236
39110
39156
92001
92002
92015
92015A
92022
92081
92144
92144A
92150
92151
92151
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CIRCLIP-TYPE-C,13MM | 480 | 480J1300 | 1 | ||
CIRCLIP-TYPE-E,10MM | 482 | 482L0100 | 1 | ||
DAMPER,PEDAL | 13063 | 13063-002 | 1 | ||
LEVER-CHANGE,PEDAL | 13156 | 13156-1422 | 1 | ||
LEVER-CHANGE,PEDAL | 13156A | 13156-1423 | 1 | ||
LEVER-COMP-CHANGE SHAFT | 13161 | 13161-1248 | 1 | ||
LEVER-COMP-CHANGE SHAFT | 13161A | 13161-1253 | 1 | ||
LEVER-COMP-CHANGE SHAFT | 13161B | 13161-1254 | 1 | ||
PAWL | 13165 | 13165-1120 | 1 | ||
LEVER-COMP,POSITION | 13236 | 13236-1126 | 1 | ||
ROD-ASSY-TIE | 39110 | 39110-1119 | 1 | ||
PAD,BRAKE PEDAL | 39156 | 39156-1071 | 1 | ||
BOLT,GEAR CHANGE LEVER | 92001 | 92001-1715 | 1 | ||
BOLT,6X20 | 92002 | 92002-1237 | 1 | ||
NUT,LH,THREAD | 92015 | 92015-1443 | 1 | ||
NUT,RH,THREAD | 92015A | 92015-1444 | 1 | ||
WASHER,13.2X20X0.5 | 92022 | 92022-1224 | 1 | ||
SPRING,CHANGE PEDAL RETURN | 92081 | 92081-1869 | 1 | ||
SPRING | 92144 | 92144-1029 | 1 | ||
SPRING,RETURN | 92144A | 92144-1140 | 1 | ||
BOLT,RETURN SPRING | 92150 | 92150-1869 | 1 | ||
BOLT,6X25 | 92151 | 92151-1898 | 2 |
CIRCLIP-TYPE-C,13MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-E,10MM | |
REF # | 482 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,PEDAL | |
REF # | 13063 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-CHANGE,PEDAL | |
REF # | 13156 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-CHANGE,PEDAL | |
REF # | 13156A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP-CHANGE SHAFT | |
REF # | 13161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP-CHANGE SHAFT | |
REF # | 13161A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP-CHANGE SHAFT | |
REF # | 13161B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAWL | |
REF # | 13165 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,POSITION | |
REF # | 13236 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-ASSY-TIE | |
REF # | 39110 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,BRAKE PEDAL | |
REF # | 39156 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,GEAR CHANGE LEVER | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LH,THREAD | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,RH,THREAD | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,13.2X20X0.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CHANGE PEDAL RETURN | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,RETURN | |
REF # | 92144A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,RETURN SPRING | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X25 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
