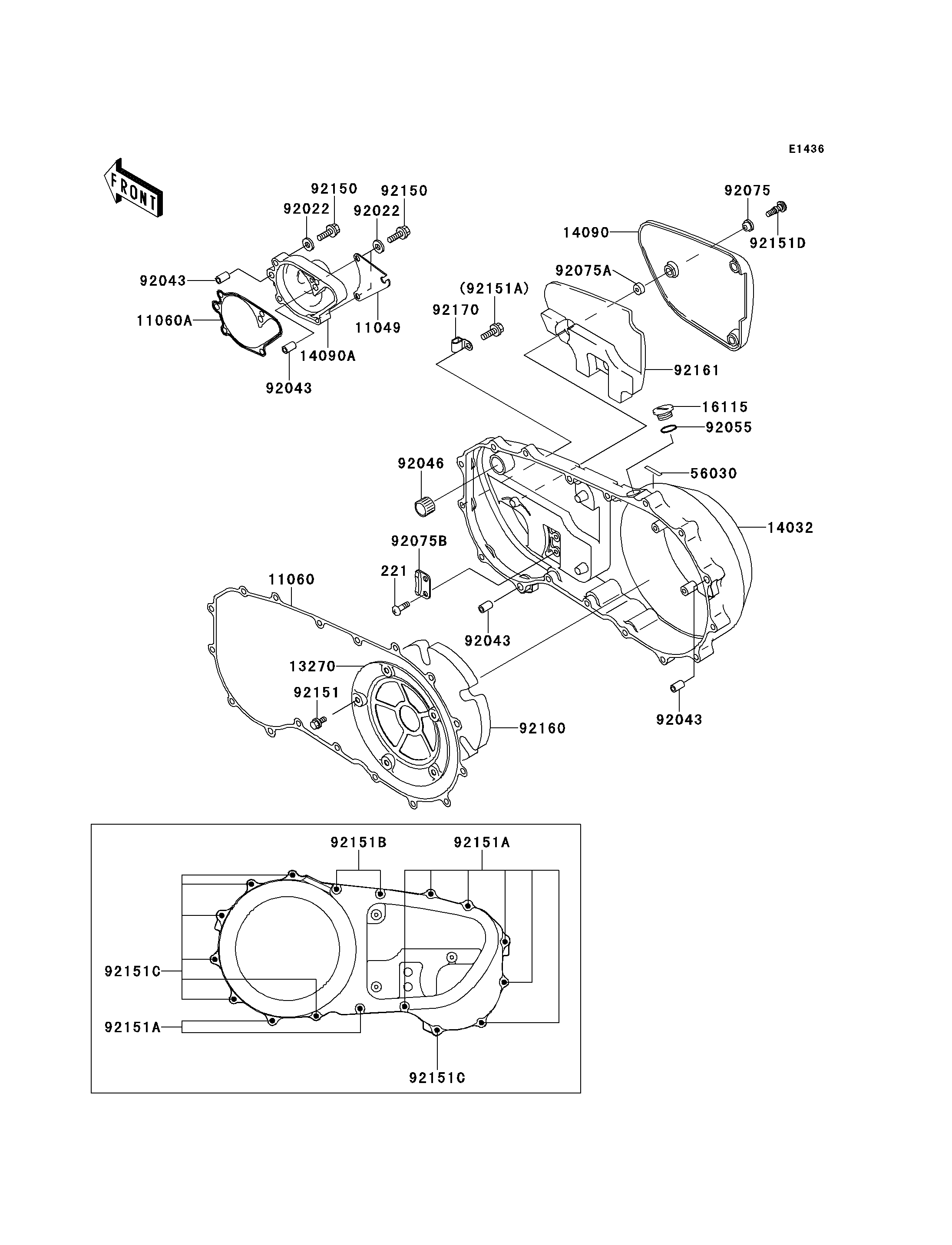

1999 Vulcan 1500 Nomad - Right Engine Cover(s)(VN1500-G1)
221
11049
11060
11060A
13270
14032
14090
14090A
16115
56030
92022
92022
92043
92043
92043
92043
92046
92055
92075
92075A
92075B
92150
92150
92151
92151A
92151A
92151B
92151C
92151C
92151D
92160
92161
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-CSK-CROS,6X12 | 221 | 221B0612 | 2 | ||
BRACKET | 11049 | 11049-1789 | 1 | ||
GASKET,CLUTCH COVER | 11060 | 11060-1121 | 1 | ||
GASKET,WATER PUMP COVER | 11060A | 11060-1124 | 1 | ||
PLATE | 13270 | 13270-1592 | 1 | ||
COVER-CLUTCH | 14032 | 14032-1435 | 1 | ||
COVER,CLUTCH OUTER | 14090 | 14090-1678 | 1 | ||
COVER,WATER PUMP | 14090A | 14090-1932 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-1063 | 1 | ||
LABEL,OIL CAPACITY | 56030 | 56030-1184 | 1 | ||
WASHER,6.1X12X1 | 92022 | 92022-077 | 4 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 4 | ||
BEARING-NEEDLE,HK1212 | 92046 | 92046-1163 | 1 | ||
RING-O,31.7X2.4 | 92055 | 92055-049 | 1 | ||
DAMPER | 92075 | 92075-1855 | 3 | ||
DAMPER | 92075A | 92075-1856 | 3 | ||
DAMPER | 92075B | 92075-1905 | 1 | ||
BOLT,6X30 | 92150 | 92150-1021 | 4 | ||
BOLT,6X10 | 92151 | 92151-1064 | 5 | ||
BOLT,6X25 | 92151A | 92151-1130 | 8 | ||
BOLT,6X30 | 92151B | 92151-1134 | 2 | ||
BOLT,6X35 | 92151C | 92151-1135 | 7 | ||
BOLT,L=22.5 | 92151D | 92151-1273 | 3 | ||
DAMPER | 92160 | 92160-1716 | 1 | ||
DAMPER,DRAIN | 92161 | 92161-1139 | 1 | ||
CLAMP,METER HARNESS | 92170 | 92170-1804 | 1 |
