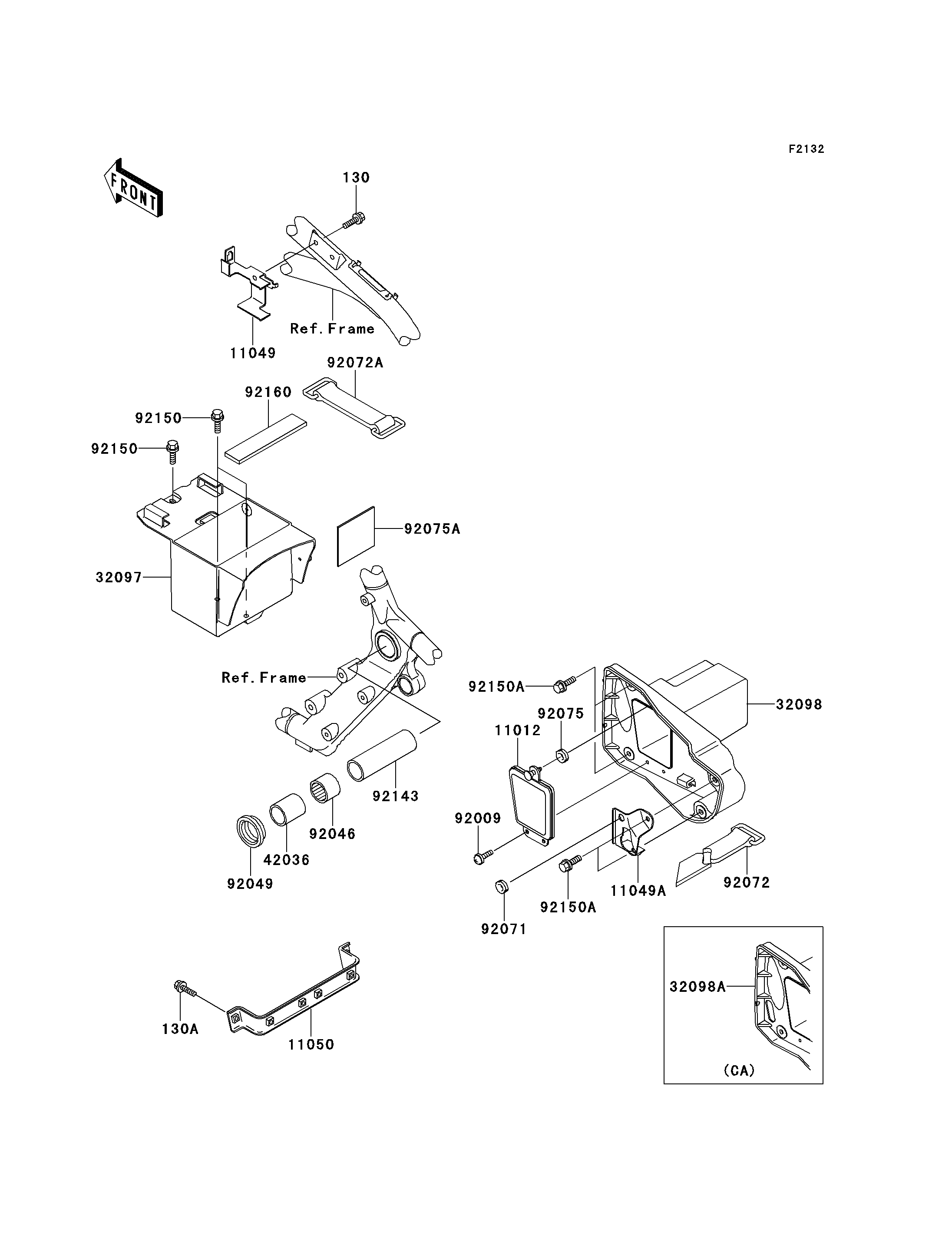

1999 Vulcan 1500 Nomad - Battery Case

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11012
11049
11049A
11050
32097
42036
92009
92046
92049
92071
92072A
92075
92075A
92143
92150
92150
92150A
92150A
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0610 1
BOLT-FLANGED,6X16,BLACK 130A 130J0616 2
CAP,TOOL CASE 11012 11012-1956 1
BRACKET,FUEL PUMP 11049 11049-1599 1
BRACKET,LOCK 11049A 11049-1600 1
BRACKET,REGULATOR 11050 11050-1694 1
CASE-BATTERY 32097 32097-1161 1
SLEEVE,L=45 42036 42036-1330 2
SCREW,TAPPING,5X14 92009 92009-1635 2
BEARING-NEEDLE,BM2824 92046 92046-1202 2
SEAL-OIL 92049 92049-1181 2
GROMMET 92071 92071-056 1
BAND 92072A 92072-1384 1
DAMPER 92075 92075-1629 1
DAMPER,BATTERY 92075A 92075-1864 1
COLLAR,20.2X27X90 92143 92143-1878 1
BOLT,6X14 92150 92150-1133 3
BOLT,6X16 92150A 92150-1198 4
DAMPER 92160 92160-1779 1
CASE-TOOL 32098 32098-1109 1 CNUS
CASE-TOOL 32098A 32098-1124 1 CA
BAND,L=470 92072 92072-1331 1 CNUS
