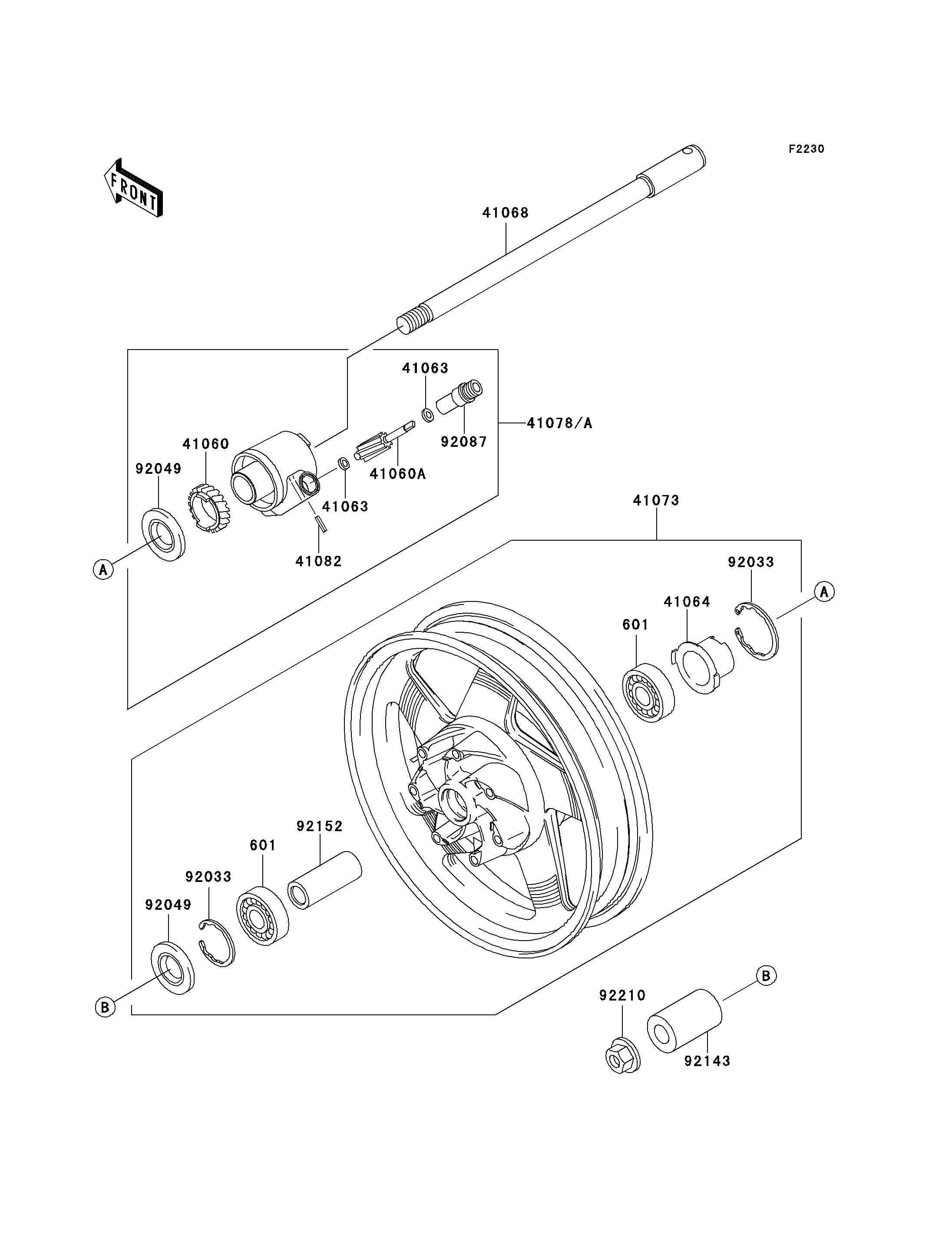

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BEARING-BALL,#6004UUC3 601 601B6004UU 2
GEAR-METER SCREW,25T 41060 41060-1160 1
GEAR-METER SCREW,9T 41060A 41060-1161 1
WASHER,5.1X9X0.4 41063 41063-001 2
RECEIVER-SPEEDOMETER 41064 41064-1056 1
AXLE,FR 41068 41068-1411 1
WHEEL-ASSY,FR,SILVER 41073 41073-1631-CX 1
CASE-ASSY-METER GEAR 41078 41078-1103 1
PIN,SPRING 41082 41082-001 1
RING-SNAP,42MM 92033 92033-1041 2
SEAL-OIL,BJN30427-C3 92049 92049-1057 2
BUSHING-METER GEAR 92087 92087-1056 1
COLLAR,FR AXLE,LH,L=48.5 92143 92143-1837 1
COLLAR,FR HUB,L=100 92152 92152-1057 1
NUT,FLANGED,18MM 92210 92210-1158 1
