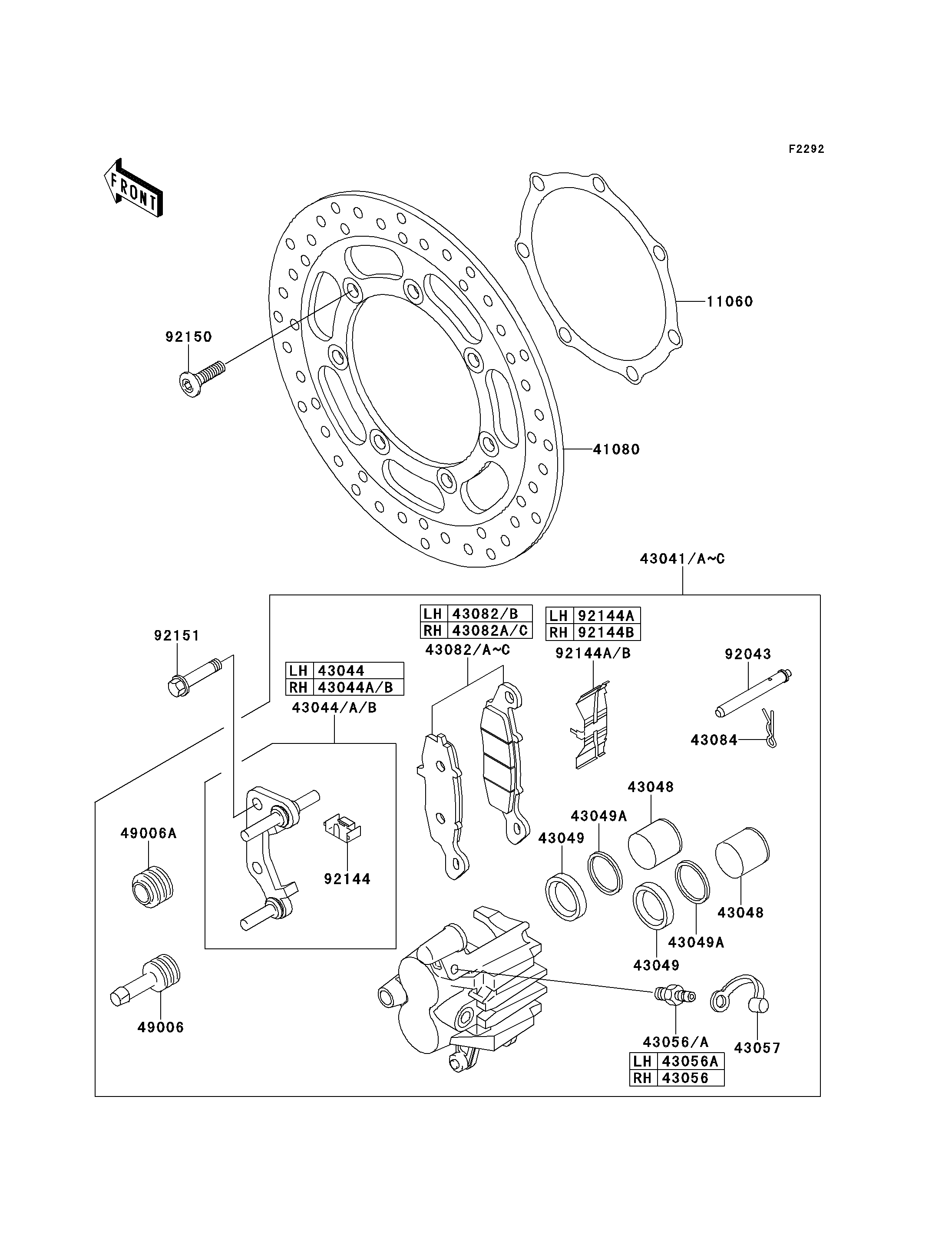

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,DISC | 11060 | 11060-1865 | 2 | ||
DISC,FR,SILVER | 41080 | 41080-1447-CM | 2 | ||
CALIPER-ASSY,FR,LH,SILVER | 43041 | 43041-1657-GN | 1 | ||
CALIPER-ASSY,FR,RH,SILVER | 43041A | 43041-1658-GN | 1 | ||
HOLDER-COMP-CALIPER,FR | 43044 | 43044-1117 | 1 | ||
HOLDER-COMP-CALIPER,RR | 43044A | 43044-1124 | 1 | ||
PISTON-CALIPER | 43048 | 43048-1052 | 4 | ||
PACKING,PISTON SEAL | 43049 | 43049-1054 | 4 | ||
PACKING,PISTON | 43049A | 43049-1055 | 4 | ||
BREATHER | 43056 | 43056-003 | 1 | ||
BREATHER-BRAKE | 43056A | 43056-1054 | 1 | ||
CAP-BREATHER | 43057 | 43057-003 | 2 | ||
PAD-ASSY-BRAKE | 43082 | 43082-1223 | 1 | ||
PAD-ASSY-BRAKE | 43082A | 43082-1226 | 1 | ||
CLAMP,PAD | 43084 | 43084-003 | 2 | ||
BOOT,CALIPER | 49006 | 49006-1054 | 2 | ||
BOOT,CALIPER | 49006A | 49006-1095 | 2 | ||
PIN,PAD | 92043 | 92043-1489 | 2 | ||
SPRING,STOPPER | 92144 | 92144-1831 | 2 | ||
SPRING,PAD,LH | 92144A | 92144-1832 | 1 | ||
SPRING,PAD,RH | 92144B | 92144-1844 | 1 | ||
BOLT,SOCKET,8X30 | 92150 | 92150-1771 | 14 | ||
BOLT,FLANGED,10X47 | 92151 | 92151-1321 | 4 |
