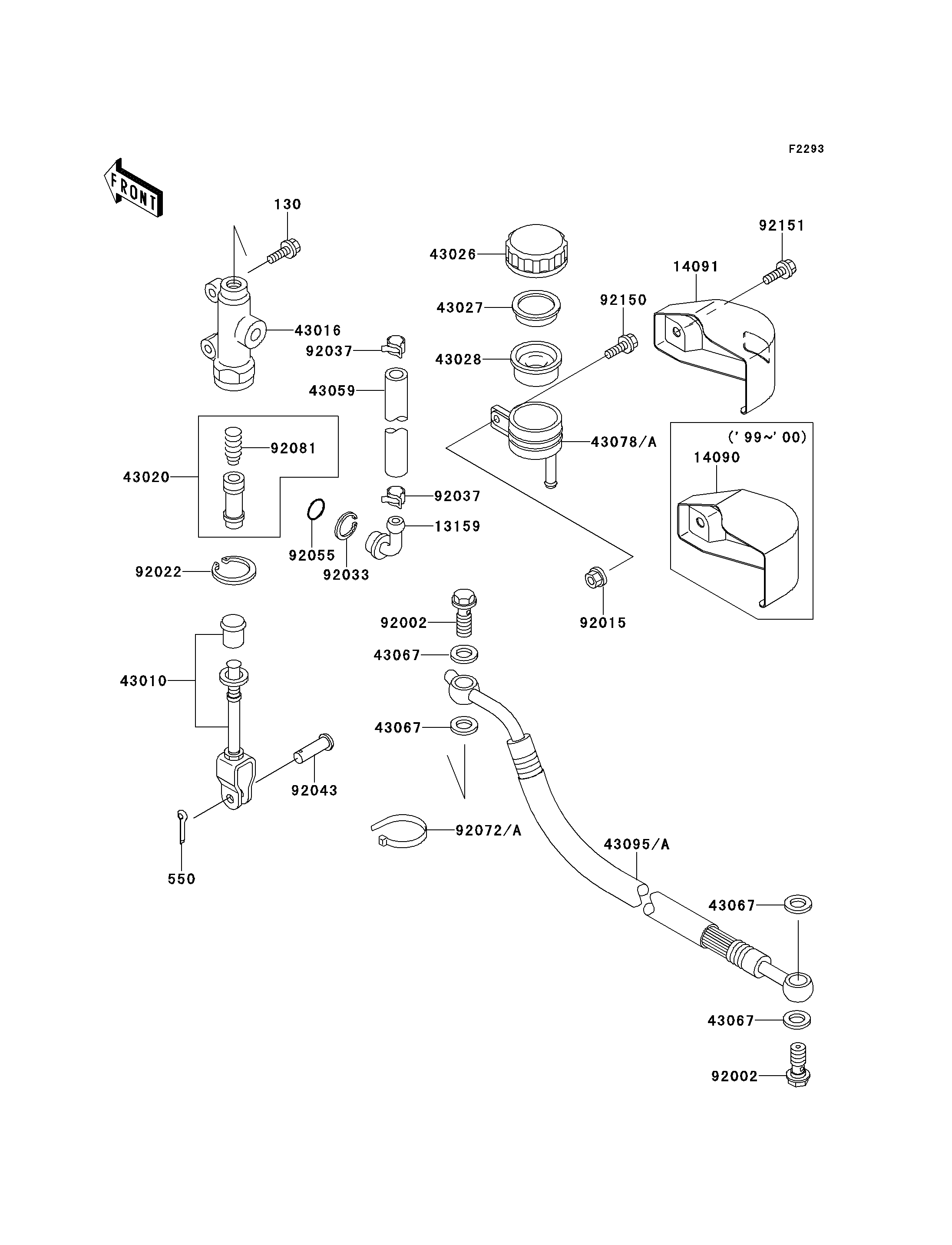

1999 Vulcan 1500 Nomad - Rear Master Cylinder
130
550
13159
14090
43010
43016
43020
43026
43027
43028
43059
43067
43067
43067
43067
43078
43095
92002
92002
92015
92022
92033
92037
92037
92043
92055
92072A
92081
92150
92151
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,8X30 | 130 | 130J0830 | 2 | ||
PIN-COTTER,2.0X15 | 550 | 550D2015 | 1 | ||
CONNECTOR,RR MASTER CYLINDER | 13159 | 13159-1052 | 1 | ||
COVER,RESERVOIR | 14090 | 14090-1939 | 1 | ||
ROD-ASSY-BRAKE | 43010 | 43010-1055 | 1 | ||
CYLINDER-MASTER,RR | 43016 | 43016-1122 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1057 | 1 | ||
CAP-BRAKE | 43026 | 43026-1051 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1057 | 1 | ||
HOSE-BRAKE,RR MASTER CYLINDER | 43059 | 43059-1318 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 4 | ||
RESERVOIR,RR MASTER CYLINDER | 43078 | 43078-1082 | 1 | ||
HOSE-BRAKE,RR | 43095 | 43095-1120 | 1 | ||
BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
NUT | 92015 | 92015-1700 | 1 | ||
WASHER,CIRCRIP | 92022 | 92022-1601 | 1 | ||
RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
CLAMP,BRAKE HOSE | 92037 | 92037-1547 | 2 | ||
PIN,8X16 | 92043 | 92043-1013 | 1 | ||
RING-O,MASTER CYLINDER | 92055 | 92055-1251 | 1 | ||
BAND,L=365 | 92072A | 92072-1197 | 1 | ||
SPRING,MASTER CYLINDER | 92081 | 92081-1737 | 1 | ||
BOLT,6X25 | 92150 | 92150-1829 | 1 | ||
BOLT,FLANGED,6X12 | 92151 | 92151-1401 | 1 |
