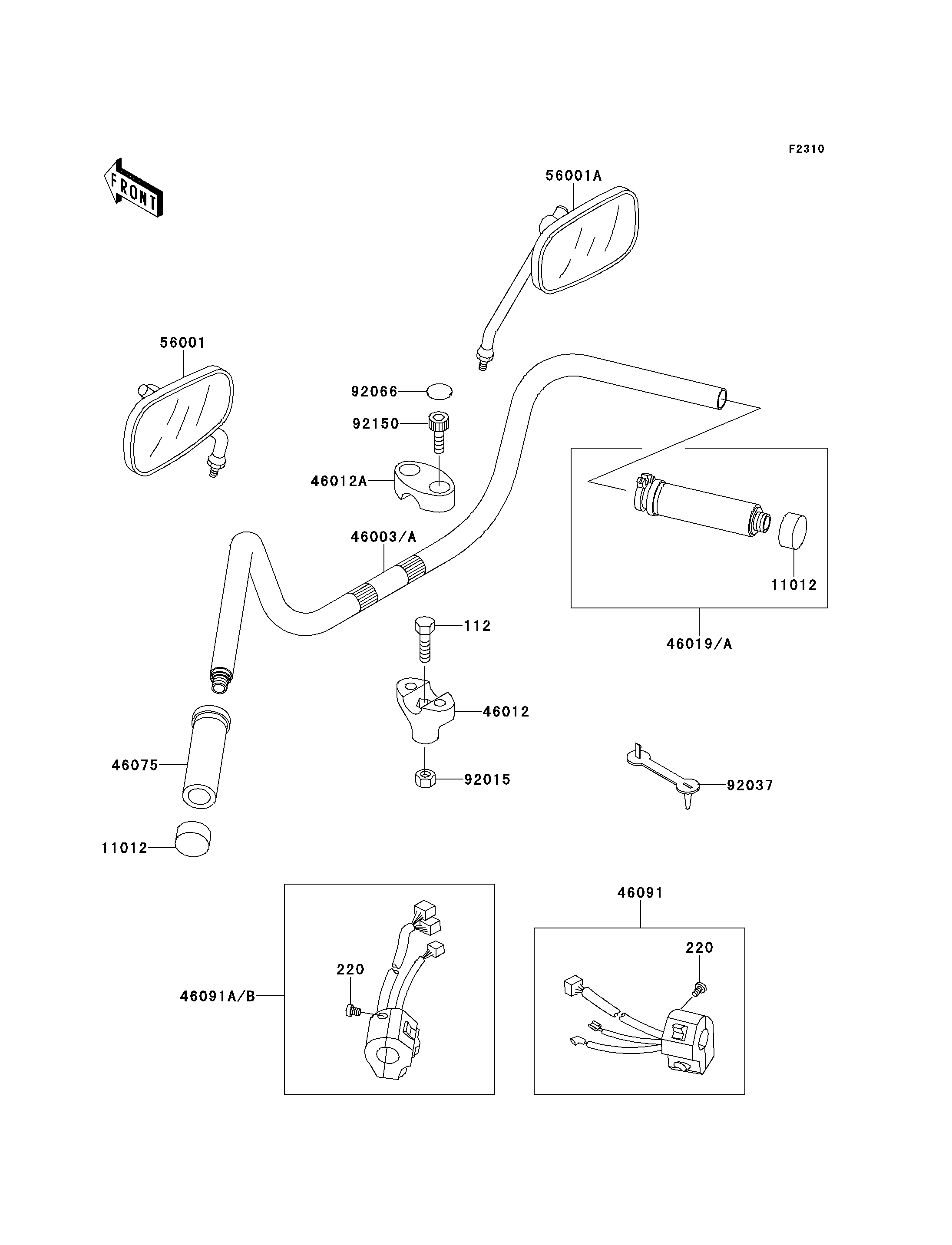

Parts Diagrams |
112
220
220
11012
11012
46003
46012
46012A
46019
46075
46091
46091A
56001
56001A
92015
92037
92066
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET,10X65 | 112 | 112H1065 | 2 | ||
SCREW-PAN-CROSS | 220 | 220E0525 | 4 | ||
CAP,GRIP END | 11012 | 11012-1975 | 2 | ||
HANDLE | 46003 | 46003-1489 | 1 | ||
HOLDER-HANDLE,LWR | 46012 | 46012-1272 | 2 | ||
HOLDER-HANDLE,UPP | 46012A | 46012-1273 | 2 | ||
GRIP-ASSY,THROTTLE | 46019 | 46019-1086 | 1 | ||
GRIP,LH | 46075 | 46075-1074 | 1 | ||
HOUSING-ASSY-CONTROL,RH | 46091 | 46091-1717 | 1 | ||
HOUSING-ASSY-CONTROL,LH | 46091A | 46091-1718 | 1 | ||
MIRROR-ASSY,LH | 56001 | 56001-1503 | 1 | ||
MIRROR-ASSY,RH | 56001A | 56001-1504 | 1 | ||
NUT,LOCK,FLANGED,10MM | 92015 | 92015-1717 | 2 | ||
CLAMP,SPEED,L=80.5 | 92037 | 92037-1903 | 2 | ||
PLUG | 92066 | 92066-1285 | 4 | ||
BOLT,SOCKET,10X23 | 92150 | 92150-1942 | 4 |
