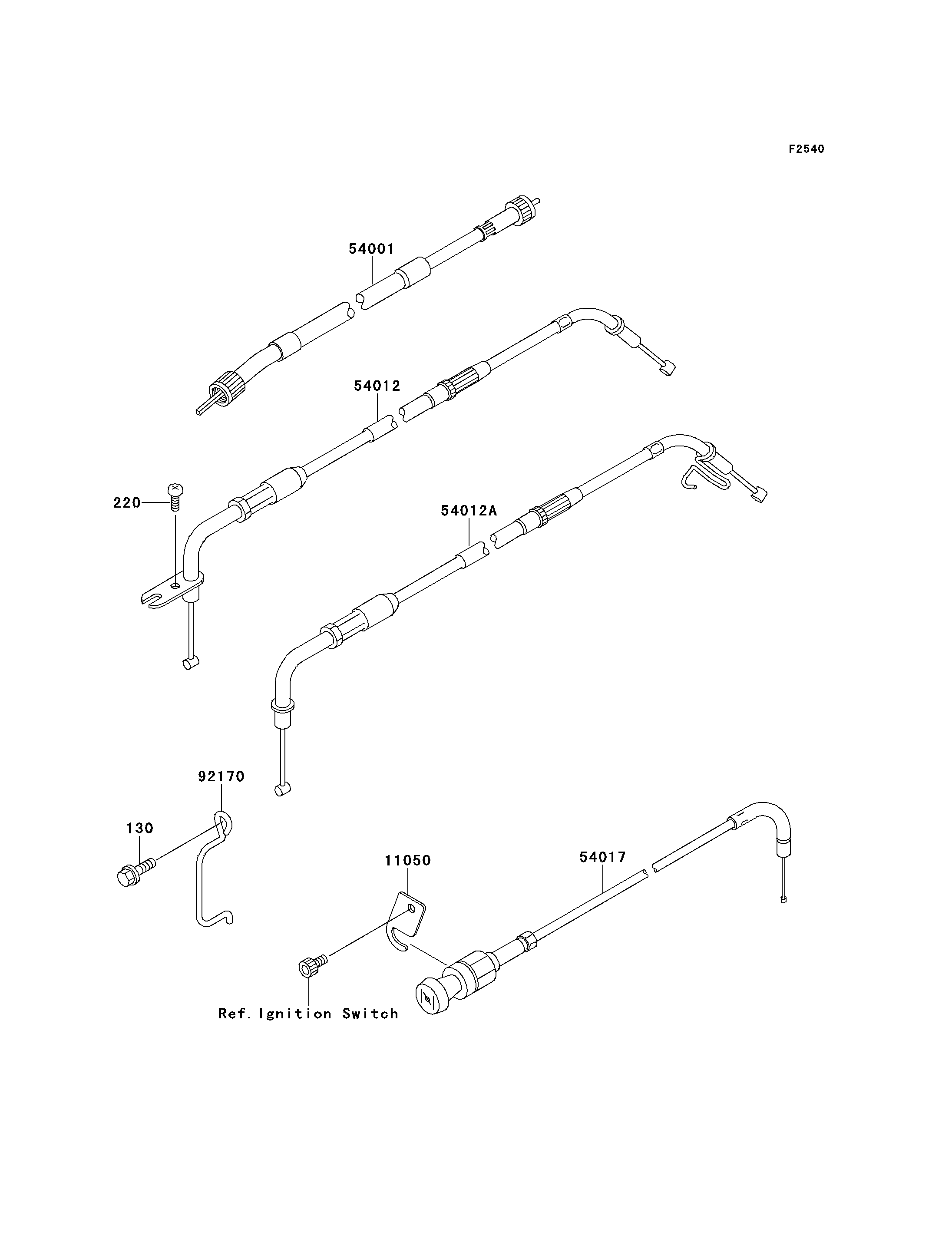

130
220
11050
54001
54012
54012A
54017
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14,BLACK 130 130J0614 1
SCREW-PAN-CROS 220 220C0514 1
BRACKET,STARTER CABLE 11050 11050-1699 1
CABLE-SPEEDMETER 54001 54001-1236 1
CABLE-THROTTLE,OPENING 54012 54012-1571 1
CABLE-THROTTLE,CLOSING 54012A 54012-1572 1
CABLE-STARTER 54017 54017-1197 1
CLAMP,CABLE 92170 92170-1867 1
