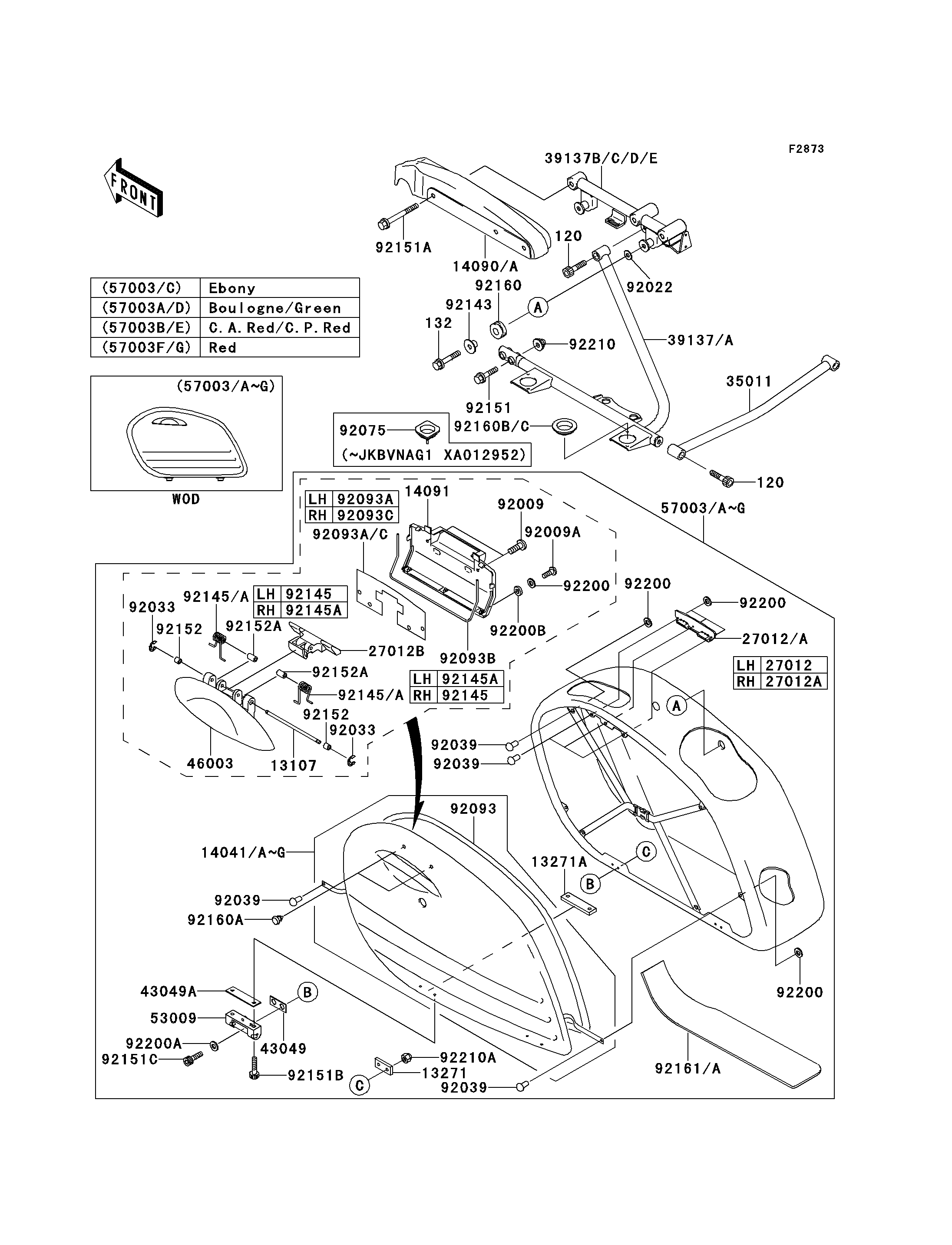

1999 Vulcan 1500 Nomad - Saddlebags

DOWNLOAD PDF
SELECT A NEW PART
13107
13107
13271
13271
13271A
13271A
14041
14041
14041C
14041C
14041D
14041D
14041G
14041G
14090
14090
14090A
14090A
14091
14091
27012
27012
27012A
27012A
27012B
27012B
35011
35011
39137
39137
39137A
39137A
39137D
39137D
39137E
39137E
43049
43049
43049A
43049A
46003
46003
53009
53009
57003A
57003A
57003B
57003B
57003D
57003D
57003E
57003E
92009
92009
92009A
92009A
92022
92022
92033
92033
92033
92033
120
120
120
120
132
132
92039
92039
92039
92039
92039
92039
92039
92039
92093
92093
92093A
92093A
92093B
92093B
92093C
92093C
92143
92143
92145
92145
92145
92145
92145A
92145A
92145A
92145A
92151
92151
92151A
92151A
92151B
92151B
92151C
92151C
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92160
92160
92160A
92160A
92160B
92160B
92200
92200
92200
92200
92200
92200
92200
92200
92200A
92200A
92200B
92200B
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT 13107 13107-1403 2
PLATE 13271 13271-1146 4
PLATE 13271A 13271-1147 4
COVER-COMP,SIDE BAG,LH,RED 14041 14041-1130-A5 1
COVER-COMP,SIDE BAG,LH,GREEN 14041C 14041-1130-81 1
COVER-COMP,SIDE BAG,RH,RED 14041D 14041-1131-A5 1
COVER-COMP,SIDE BAG,RH,GREEN 14041G 14041-1131-81 1
COVER,RR FENDER,LH 14090 14090-1894 1
COVER,RR FENDER,RH 14090A 14090-1895 1
COVER,LID MAINTENANCE 14091 14091-1069 2
HOOK,LOCK PLATE,LH 27012 27012-1571 1
HOOK,LOCK PLATE,RH 27012A 27012-1572 1
HOOK,HANDLE 27012B 27012-1575 2
STAY,SIDE BAG 35011 35011-1896 1
STAY-COMP,SIDE BAG,LH,LWR 39137 39137-1067 1
STAY-COMP,SIDE BAG,RH,LWR 39137A 39137-1068 1
STAY-COMP,SIDE BAG,LH,UPP 39137D 39137-1075 1
STAY-COMP,SIDE BAG,RH,UPP 39137E 39137-1076 1
PACKING 43049 43049-1084 4
PACKING 43049A 43049-1086 4
HANDLE,SIDE BAG 46003 46003-1505 2
HINGE,SIDE BAG 53009 53009-1104 4
BAG-ASSY,LH,BOULOGNE+GREEN 57003A 57003-1082-25 1
BAG-ASSY,LH,RED MICA+RED 57003B 57003-1082-28 1
BAG-ASSY,RH,BOULOGNE+GREEN 57003D 57003-1083-25 1
BAG-ASSY,RH,RED MICA+RED 57003E 57003-1083-28 1
SCREW,TAPPING,4X12 92009 92009-1870 4
SCREW,TAPPING,3X8 92009A 92009-1871 6
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 4
RING-SNAP 92033 92033-1300 4
BOLT-SOCKET,8X35,BLACK 120 120S0835 4
BOLT-FLANGED-SMALL 132 132J0845 4
RIVET 92039 92039-1236 18
SEAL,SIDE BAG COVER 92093 92093-1486 2
SEAL 92093A 92093-1487 1
SEAL 92093B 92093-1488 2
SEAL 92093C 92093-1489 1
COLLAR 92143 92143-1450 4
SPRING 92145 92145-1175 2
SPRING 92145A 92145-1200 2
BOLT,FLANGED,8X35 92151 92151-1402 4
BOLT,FLANGED,8X75 92151A 92151-1403 6
BOLT,SOCKET,4X22 92151B 92151-1436 8
BOLT,SOCKET,4X18 92151C 92151-1437 8
COLLAR 92152 92152-1121 4
COLLAR 92152A 92152-1122 4
DAMPER 92160 92160-1012 4
DAMPER 92160A 92160-1976 4
DAMPER 92160B 92160-1981 4
WASHER,3MM 92200 92200-1442 24
WASHER,4MM 92200A 92200-1443 8
WASHER,3MM 92200B 92200-1444 6
NUT,CAP,8MM 92210 92210-1161 4
NUT,CAP,4MM 92210A 92210-1168 8
