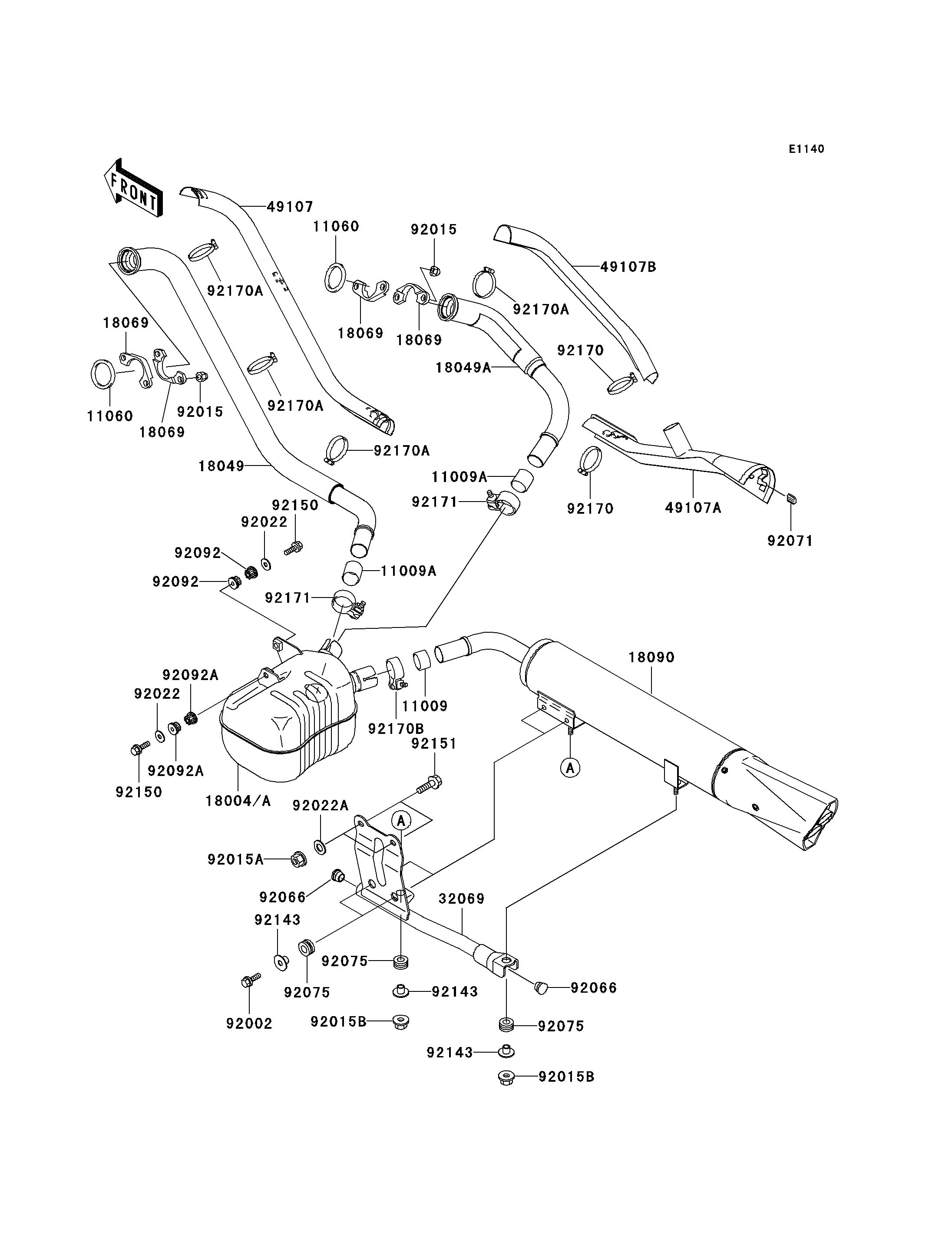

1999 Vulcan 1500 Drifter - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11009
11009A
11009A
11060
11060
18049
18049A
18069
18069
18069
18069
18090
32069
49107
49107A
49107B
92002
92015
92015
92015A
92015B
92015B
92022
92022
92022A
92066
92066
92071
92075
92075
92075
92092
92092
92092A
92092A
92143
92143
92143
92150
92150
92151
92170
92170
92170A
92170A
92170A
92170A
92170B
92171
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1666 1
GASKET,EXHAUST PIPE CONNECTING 11009A 11009-1667 2
GASKET,EXHAUST PIPE 11060 11060-1119 2
PIPE-EXHAUST,FR 18049 18049-1906 1
PIPE-EXHAUST,RR 18049A 18049-1907 1
HOLDER-EXHAUST PIPE 18069 18069-1156 4
BODY-COMP-MUFFLER 18090 18090-1723 1
BRACKET-MUFFLER 32069 32069-1590 1
COVER-EXHAUST PIPE,FRONT 49107 49107-1169 1
COVER-EXHAUST PIPE,FR 49107A 49107-1170 1
COVER-EXHAUST PIPE,RR 49107B 49107-1171 1
BOLT,FLANGED,8X25 92002 92002-1591 2
NUT,CAP,8MM 92015 92015-1371 4
NUT,LOCK,FLANGED,8MM 92015A 92015-1397 2
NUT,8MM 92015B 92015-1402 2
WASHER,10.5X30X2.3,BLACK 92022 92022-1302 2
WASHER,8.2X18X1.5 92022A 92022-1964 2
PLUG 92066 92066-1520 2
GROMMET 92071 92071-1226 2
DAMPER 92075 92075-1898 4
BUSHING-RUBBER,MUFFLER 92092 92092-1013 2
BUSHING-RUBBER 92092A 92092-1081 2
COLLAR 92143 92143-1753 4
BOLT,10X55 92150 92150-1749 2
BOLT,8X35 92151 92151-1580 2
CLAMP 92170 92170-1934 2
CLAMP 92170A 92170-1964 4
CLAMP 92170B 92170-1994 1
CLAMP 92171 92171-1152 2
CHAMBER-PREMUFFLER 18004 18004-1082 1 CA
CHAMBER-PREMUFFLER 18004A 18004-1084 1 CNUS
