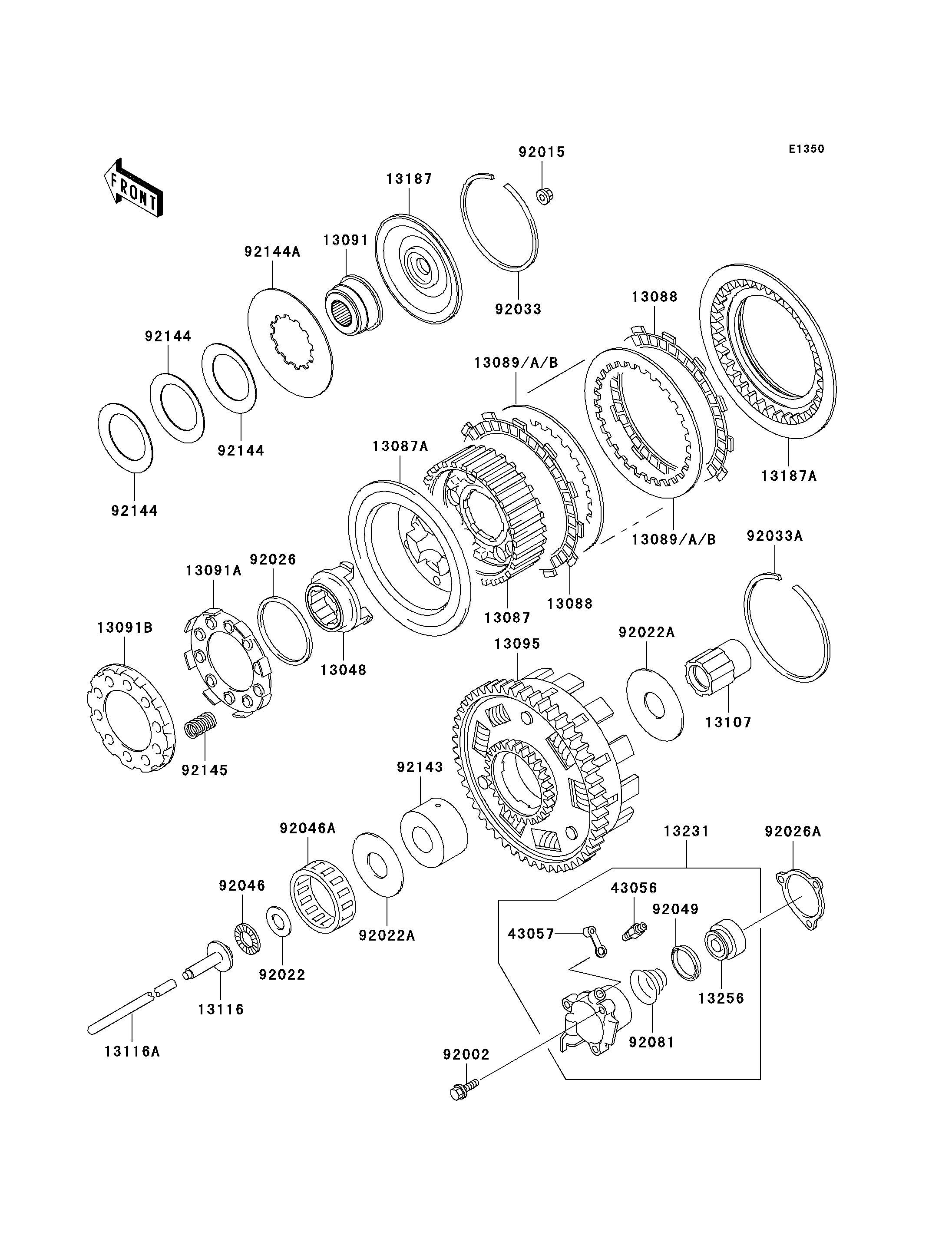

1999 Vulcan 1500 Drifter - Clutch

DOWNLOAD PDF
SELECT A NEW PART
13048
13087
13087A
13088
13088
13089
13089
13089A
13089A
13089B
13089B
13091
13091A
13091B
13095
13107
13116
13116A
13187
13187A
13231
13256
43056
43057
92002
92015
92022
92022A
92022A
92026
92026A
92033
92033A
92046
92046A
92049
92081
92143
92144
92144
92144
92144A
92145
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAM-DAMPER 13048 13048-1087 1
HUB-CLUTCH,OUTER 13087 13087-1103 1
HUB-CLUTCH,INNER 13087A 13087-1110 1
PLATE-FRICTION 13088 13088-1018 8
PLATE-CLUTCH,T=2.0 13089 13089-1075 AR
PLATE-CLUTCH,T=1.6 13089A 13089-1080 AR
PLATE-CLUTCH,T=2.3 13089B 13089-1081 AR
HOLDER,CLUTCH SPRING 13091 13091-1494 1
HOLDER,DAMPER SPRING 13091A 13091-1495 1
HOLDER,DAMPER SPRING 13091B 13091-1496 1
HOUSING-COMP-CLUTCH 13095 13095-1342 1
SHAFT,CLUTCH CAM DAMPER 13107 13107-1237 1
ROD-PUSH,CLUTCH 13116 13116-1102 1
ROD-PUSH 13116A 13116-1132 1
PLATE-CLUTCH OPERATING 13187 13187-1063 1
PLATE-CLUTCH OPERATING 13187A 13187-1066 1
RELEASE-ASSY-CLUTCH 13231 13231-1073 1
PISTON 13256 13256-1052 1
BREATHER-BRAKE 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
BOLT,6X25 92002 92002-1612 3
NUT,20MM 92015 92015-1461 1
WASHER,15.1X29X1.0 92022 92022-1463 1
WASHER,25.3X56X2.0 92022A 92022-1857 2
SPACER,59X70X3.5 92026 92026-1043 1
SPACER,CLUTCH RELEASE 92026A 92026-1263 1
RING-SNAP 92033 92033-1238 1
RING-SNAP 92033A 92033-1239 1
BEARING-NEEDLE,AXK1102 92046 92046-1052 1
BEARING-NEEDLE 92046A 92046-1175 1
SEAL-OIL,PISTON 92049 92049-1165 1
SPRING,CLUTCH RELEASE 92081 92081-1644 1
COLLAR,INPUT SHAFT 92143 92143-1076 1
SPRING,LIMITER 92144 92144-1188 3
SPRING,CLUTCH 92144A 92144-1934 1
SPRING 92145 92145-1243 10
