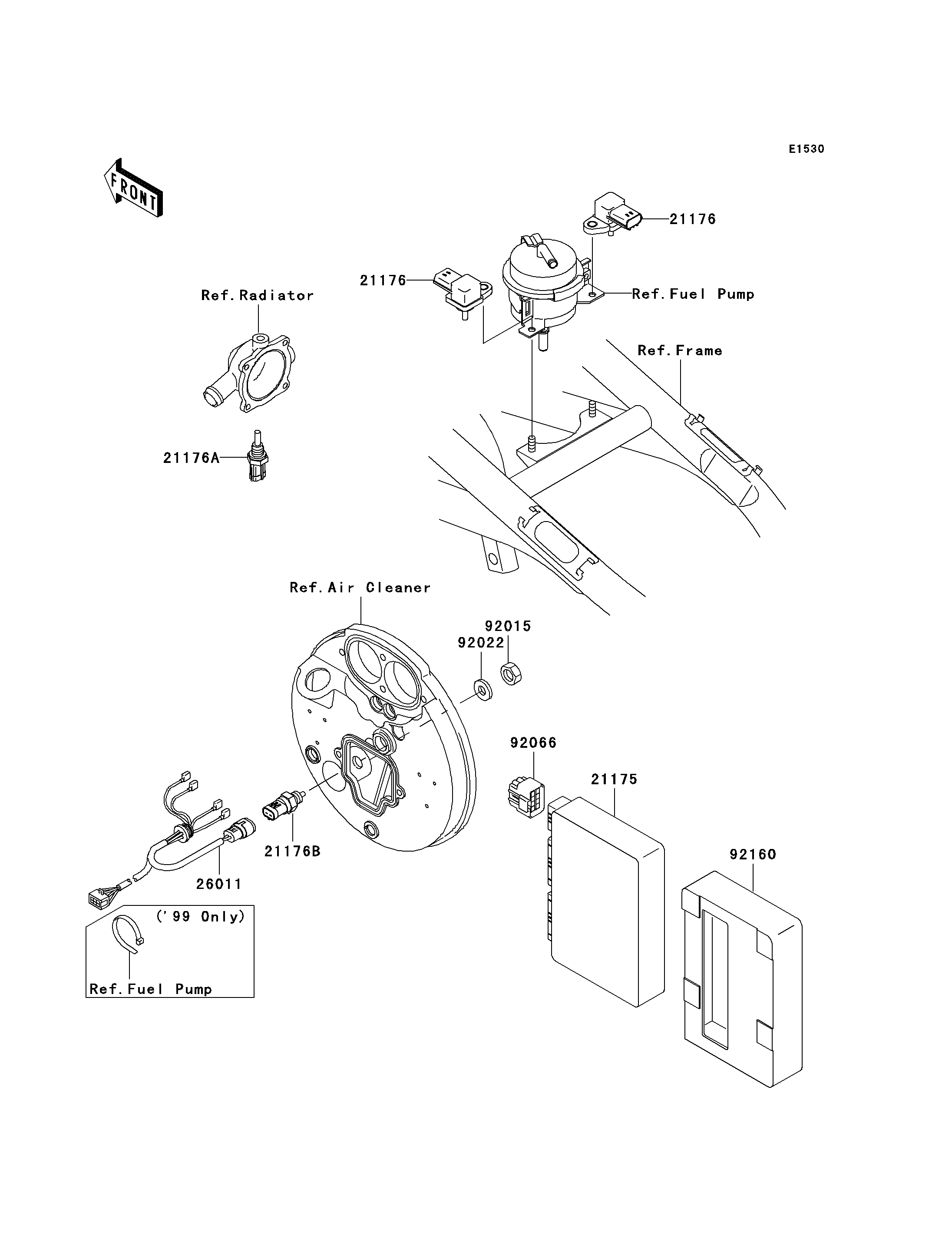

21175
21176
21176
21176A
21176B
26011
92015
92022
92066
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CONTROL UNIT-ELECTRONIC 21175 21175-1064 1
SENSOR,PRESSURE 21176 21176-1084 2
SENSOR,WATER TEMPERATURE 21176A 21176-1085 1
SENSOR,AIR TEMPERATURE 21176B 21176-1086 1
WIRE-LEAD 26011 26011-1728 1
NUT,12MM 92015 92015-1395 1
WASHER,12.3X20X0.5 92022 92022-269 1
PLUG,COUPLER 92066 92066-1521 1
DAMPER 92160 92160-1965 1
