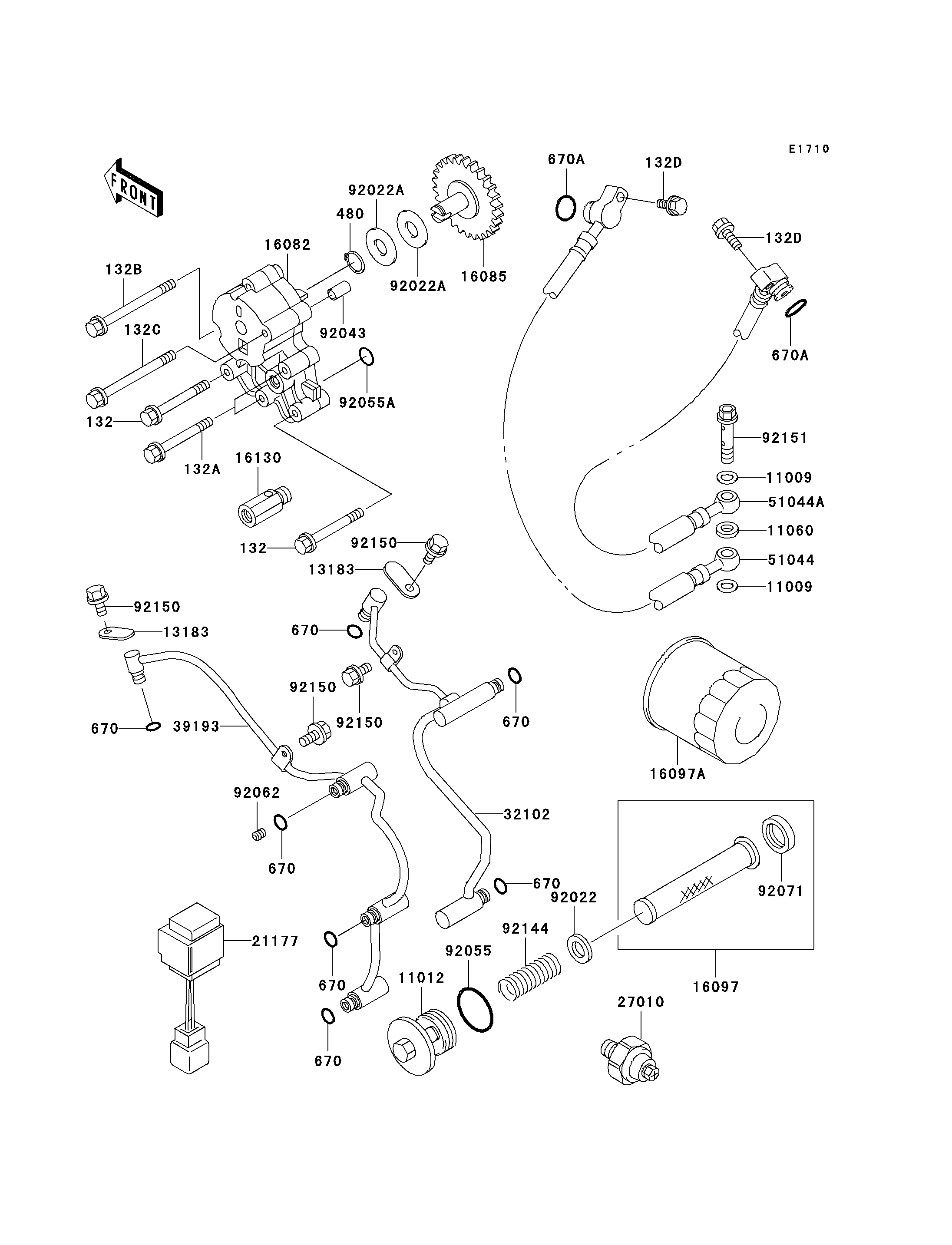

1999 Vulcan 1500 Drifter - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
132B
132C
132D
132D
480
670
670
670
670
670
670
670
670A
670A
11009
11009
11012
11060
13183
13183
16082
16085
16097
16097A
16130
21177
27010
32102
39193
51044
51044A
92022
92022A
92022A
92043
92055
92055A
92062
92071
92144
92150
92150
92150
92150
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0645 2
BOLT-FLANGED-SMALL 132A 132G0655 2
BOLT-FLANGED-SMALL 132B 132G0660 1
BOLT-FLANGED-SMALL 132C 132G0670 1
BOLT-FLANGED-SMALL 132D 132J0625 2
CIRCLIP-TYPE-C,12MM 480 480J1200 1
O RING,8MM 670 670D1508 7
O RING 670A 670D2010 2
GASKET,OIL PIPE,8.2X14X1.0 11009 11009-1344 2
CAP,OIL FILTER 11012 11012-1461 1
GASKET,PIPE JOINT 11060 11060-1739 1
PLATE 13183 13183-1071 2
PUMP-ASSY-OIL 16082 16082-1155 1
GEAR,OIL PUMP,39T 16085 16085-1335 1
FILTER-ASSY-OIL 16097 16097-1058 1
FILTER-ASSY-OIL 16097A 16097-1068 1
VALVE-ASSY-RELIEF 16130 16130-1059 1
CONTROLLER,OIL LAMP 21177 21177-1058 1
SWITCH,OIL PRESSURE 27010 27010-1360 1
PIPE 32102 32102-1409 1
PIPE-OIL 39193 39193-1036 1
TUBE-ASSY,FR 51044 51044-1182 1
TUBE-ASSY,RR 51044A 51044-1183 1
WASHER,20.1X28X1 92022 92022-1547 1
WASHER,12X27.5X1.0 92022A 92022-1852 2
PIN,6.2X8X14 92043 92043-1263 1
RING-O,35.2X2.4 92055 92055-1358 1
RING-O,13.2X2.4 92055A 92055-1373 2
NOZZLE,6X8,GREEN 92062 92062-1078 1
GROMMET,OIL STRAINER 92071 92071-100 1
SPRING 92144 92144-1106 1
BOLT,6X12 92150 92150-1868 4
BOLT,BANJO,8X35 92151 92151-1355 1
