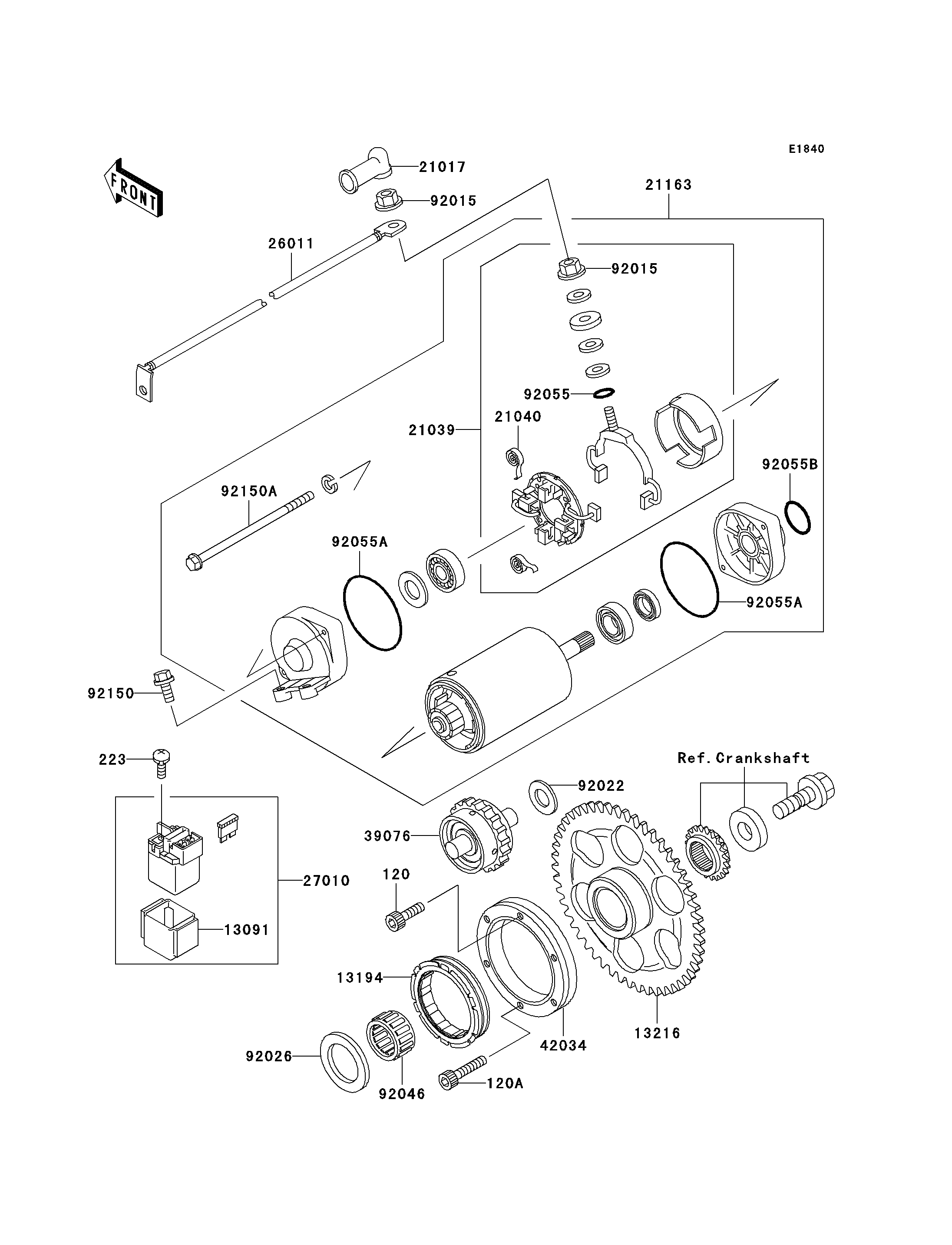

1999 Vulcan 1500 Drifter - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
120A
223
13091
13194
13216
21017
21039
21040
21163
26011
27010
39076
42034
92015
92015
92022
92026
92046
92055
92055A
92055A
92055B
92150
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120S0620 3
BOLT-SOCKET,6X30,BLACK 120A 120S0630 3
SCREW-PAN-WS-CROS 223 223D0510 2
HOLDER,MAGNETIC SWITCH 13091 13091-1884 1
CLUTCH-ONEWAY 13194 13194-1088 1
GEAR-COMP,FREE WHEEL 13216 13216-1115 1
GROMMET,STARTER TERMINAL 21017 21017-017 1
BRUSH,CARBON 21039 21039-1060 1
SPRING-BRUSH 21040 21040-1055 4
STARTER-ELECTRIC 21163 21163-1271 1
WIRE-LEAD 26011 26011-1713 1
SWITCH,MAGNETIC 27010 27010-1327 1
LIMITER,STARTER IDLE GEAR 39076 39076-1057 1
COUPLING 42034 42034-1093 1
NUT,STARTER MOTOR 92015 92015-1476 2
WASHER,12X27.5X1.0 92022 92022-1852 1
SPACER,31X49.5X1.2 92026 92026-1490 1
BEARING-NEEDLE,K30X35X20 92046 92046-1171 1
RING-O,4.5X2.0 92055 92055-1370 1
RING-O,STARTER MOTOR 92055A 92055-1381 2
RING-O,37MM 92055B 92055-1393 1
BOLT,6X25 92150 92150-1779 2
BOLT,STARTER MOTOR 92150A 92150-1913 2
