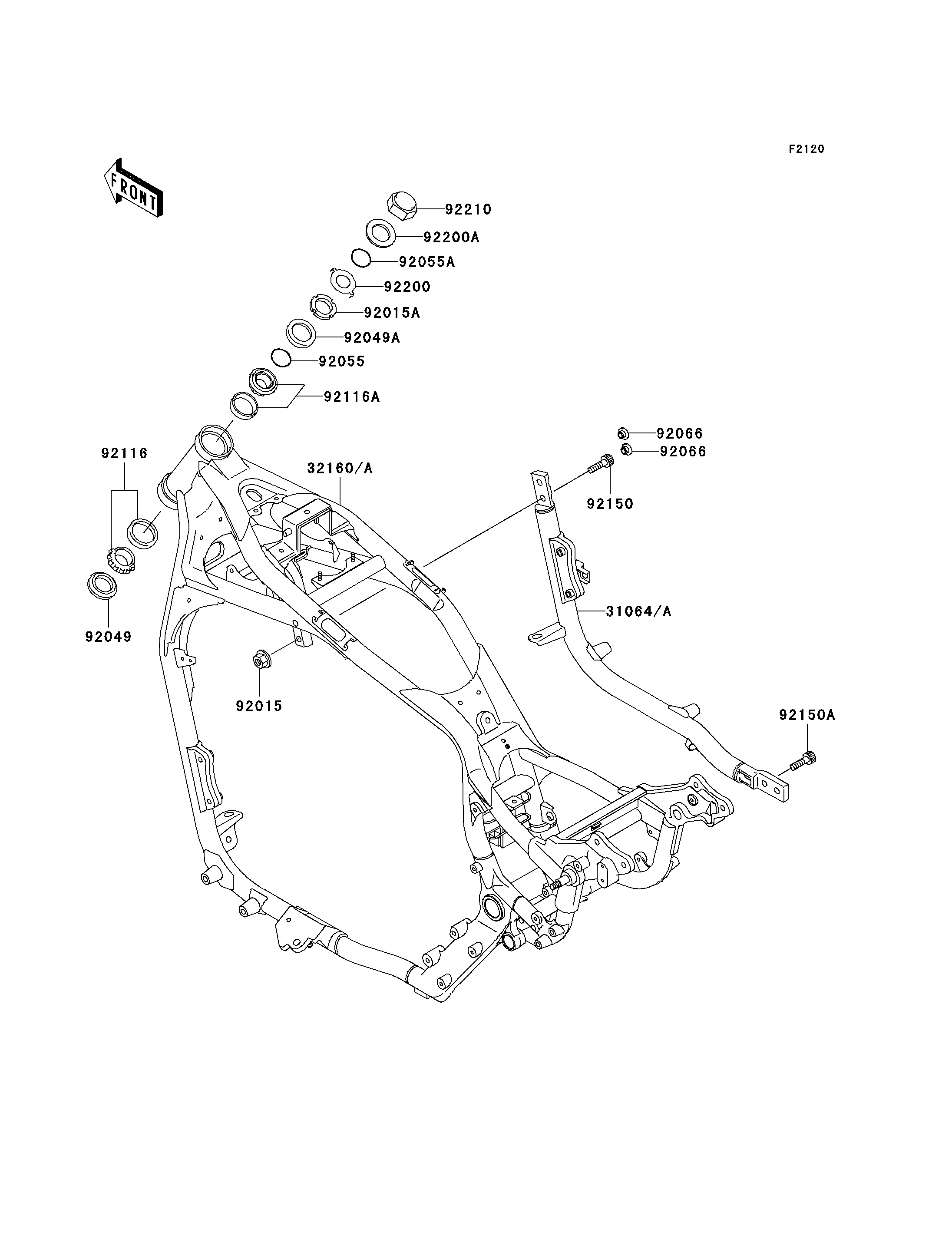

Parts Diagrams |
31064
32160
92015
92015A
92049
92049A
92055
92055A
92066
92066
92116
92116A
92150
92150A
92200
92200A
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIPE-COMP,DOWNTUBU,RH | 31064 | 31064-1226 | 1 | ||
| FRAME-COMP | 32160 | 32160-1555 | 1 | ||
| NUT,FLANGED,10MM | 92015 | 92015-1727 | 2 | ||
| NUT,STEERING STEM,35MM | 92015A | 92015-1848 | 1 | ||
| SEAL-OIL,XMHE 43 55 4J | 92049 | 92049-1383 | 1 | ||
| SEAL-OIL,MX043N2 | 92049A | 92049-1483 | 1 | ||
| RING-O,34.5X2.0 | 92055 | 92055-1452 | 1 | ||
| RING-O,ID=24.5 | 92055A | 92055-1459 | 1 | ||
| PLUG | 92066 | 92066-1285 | 2 | ||
| BEARING-ROLLER,32907JR-2 | 92116 | 92116-1072 | 1 | ||
| BEARING-ROLLER,32907JR-3 | 92116A | 92116-1074 | 1 | ||
| BOLT,SOCKET,10X30 | 92150 | 92150-1690 | 2 | ||
| BOLT,SOCKET,10X23 | 92150A | 92150-1942 | 2 | ||
| WASHER,CLAW,25.5X40X2.3 | 92200 | 92200-1083 | 1 | ||
| WASHER,25.5X42X2.3 | 92200A | 92200-1084 | 1 | ||
| NUT,CAP,25MM | 92210 | 92210-1166 | 1 |
| PIPE-COMP,DOWNTUBU,RH | |
| REF # | 31064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP | |
| REF # | 32160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,STEERING STEM,35MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,XMHE 43 55 4J | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,MX043N2 | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,34.5X2.0 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,ID=24.5 | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,32907JR-2 | |
| REF # | 92116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,32907JR-3 | |
| REF # | 92116A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,10X30 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,10X23 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,CLAW,25.5X40X2.3 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,25.5X42X2.3 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,25MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
