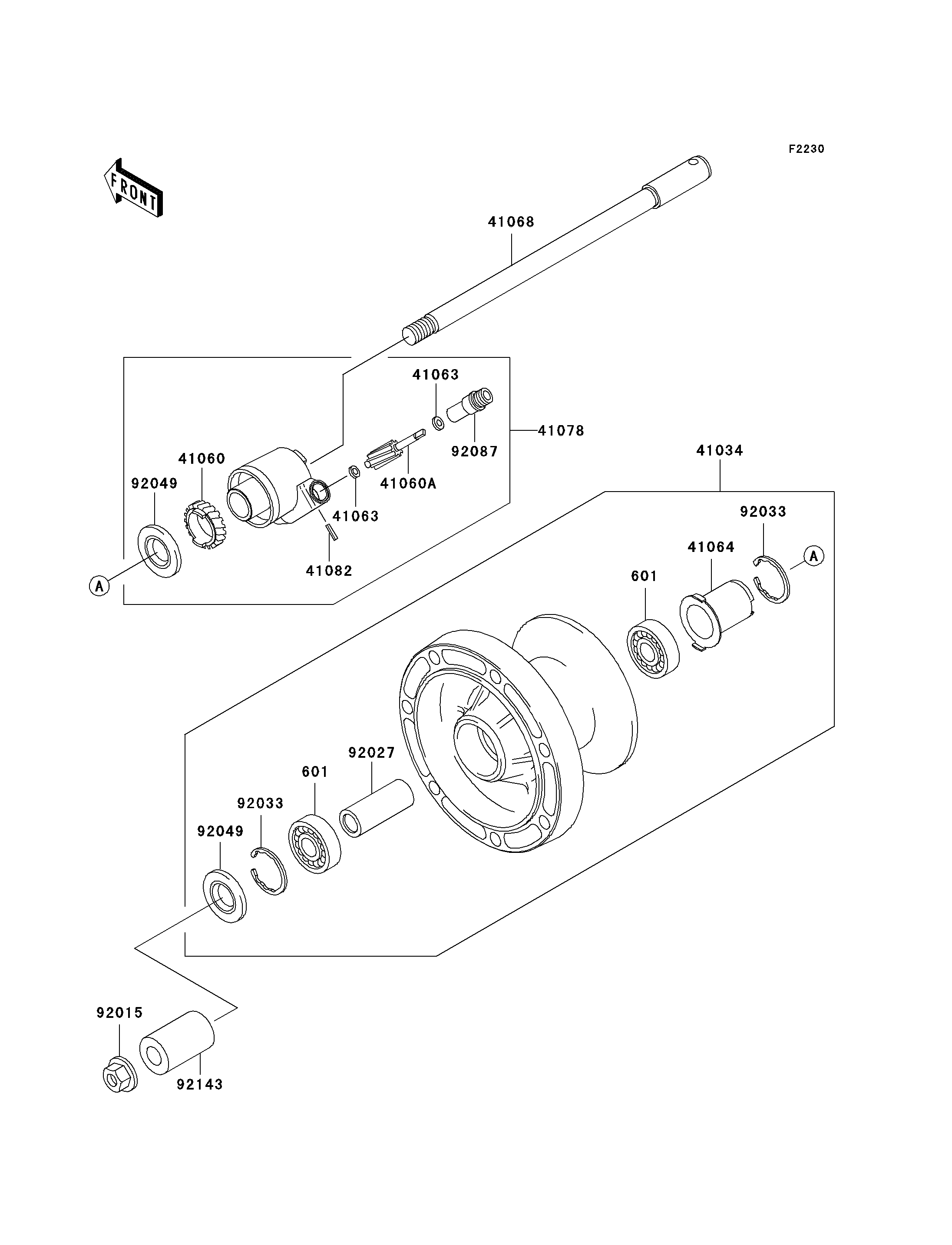

1999 Vulcan 1500 Drifter - Front Wheel
601
601
41034
41060
41060A
41063
41063
41064
41068
41078
41082
92015
92027
92033
92033
92049
92049
92087
92143
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BEARING-BALL,#6004UUC3 | 601 | 601B6004UU | 2 | ||
| DRUM-ASSY,FRONT BRAKE | 41034 | 41034-1293 | 1 | ||
| GEAR-METER SCREW,25T | 41060 | 41060-1160 | 1 | ||
| GEAR-METER SCREW,9T | 41060A | 41060-1161 | 1 | ||
| WASHER,5.1X9X0.4 | 41063 | 41063-001 | 2 | ||
| RECEIVER-SPEEDOMETER | 41064 | 41064-1059 | 1 | ||
| AXLE,FR | 41068 | 41068-1378 | 1 | ||
| CASE-ASSY-METER GEAR | 41078 | 41078-1106 | 1 | ||
| PIN,SPRING | 41082 | 41082-001 | 1 | ||
| NUT,FLANGED,18MM | 92015 | 92015-1993 | 1 | ||
| COLLAR,20.2X28X70 | 92027 | 92027-1752 | 1 | ||
| RING-SNAP,42MM | 92033 | 92033-1041 | 2 | ||
| SEAL-OIL,BJN30427-C3 | 92049 | 92049-1057 | 2 | ||
| BUSHING-METER GEAR | 92087 | 92087-1056 | 1 | ||
| COLLAR,FR AXLE,LH,L=48.5 | 92143 | 92143-1837 | 1 |
| BEARING-BALL,#6004UUC3 | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DRUM-ASSY,FRONT BRAKE | |
| REF # | 41034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-METER SCREW,25T | |
| REF # | 41060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-METER SCREW,9T | |
| REF # | 41060A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.1X9X0.4 | |
| REF # | 41063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RECEIVER-SPEEDOMETER | |
| REF # | 41064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,FR | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-ASSY-METER GEAR | |
| REF # | 41078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,SPRING | |
| REF # | 41082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,18MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,20.2X28X70 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,42MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,BJN30427-C3 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING-METER GEAR | |
| REF # | 92087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FR AXLE,LH,L=48.5 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
