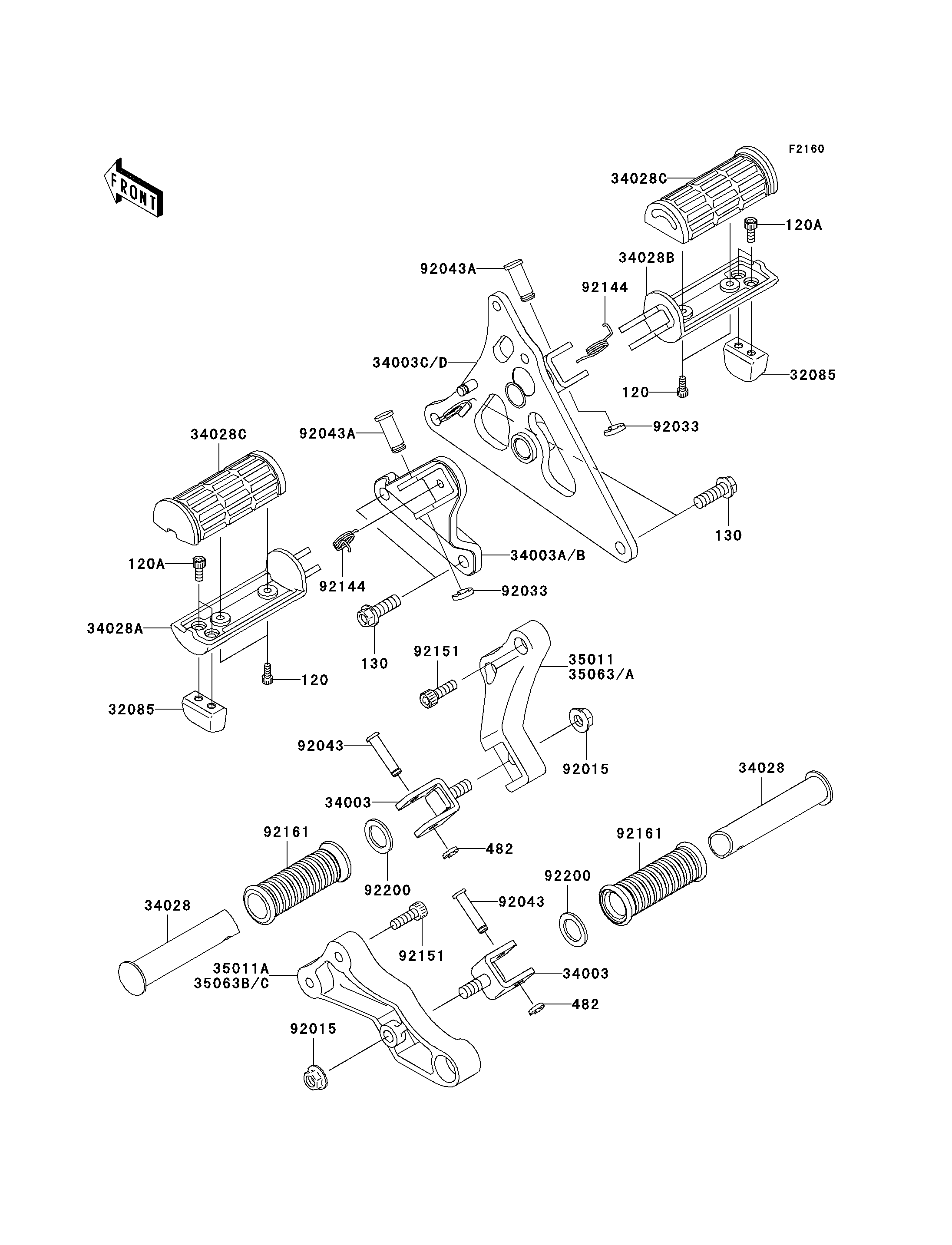

2006 Vulcan 1600 Mean Streak - Footrests
120
120
120A
120A
130
130
482
482
32085
32085
34003
34003
34003A
34003D
34028
34028
34028A
34028B
34028C
34028C
35011
35011A
92015
92015
92033
92033
92043
92043
92043A
92043A
92144
92144
92151
92151
92161
92161
92200
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,5X12 | 120 | 120S0512 | 4 | ||
BOLT-SOCKET,6X14 | 120A | 120S0614 | 4 | ||
BOLT-FLANGED,10X30 | 130 | 130J1030 | 4 | ||
CIRCLIP-TYPE-E | 482 | 482L7000 | 2 | ||
STOPPER,BANK SENSOR | 32085 | 32085-1534 | 2 | ||
HOLDER-STEP,RR | 34003 | 34003-0015 | 2 | ||
HOLDER-STEP,FR,LH | 34003A | 34003-0036 | 1 | ||
HOLDER-STEP,FR,RH | 34003D | 34003-1507 | 1 | ||
STEP,RR | 34028 | 34028-0017 | 2 | ||
STEP,FR,LH | 34028A | 34028-1519 | 1 | ||
STEP,FR,RH | 34028B | 34028-1520 | 1 | ||
STEP,RUBBER | 34028C | 34028-1522 | 2 | ||
STAY,REAR STEP,LH | 35011 | 35011-1770 | 1 | ||
STAY,REAR STEP,RH | 35011A | 35011-1922 | 1 | ||
NUT,FLANGED,10MM | 92015 | 92015-1428 | 2 | ||
RING-SNAP,10MM | 92033 | 92033-1166 | 2 | ||
PIN,8X36.5 | 92043 | 92043-1339 | 2 | ||
PIN,12X37 | 92043A | 92043-1358 | 2 | ||
SPRING,STEP RETURN | 92144 | 92144-1126 | 2 | ||
BOLT,SOCKET,8X25 | 92151 | 92151-1525 | 4 | ||
DAMPER,STEP | 92161 | 92161-0232 | 2 | ||
WASHER,22.5X33X2.3 | 92200 | 92200-1482 | 2 |
BOLT-SOCKET,5X12 | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-SOCKET,6X14 | |
REF # | 120A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,10X30 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-E | |
REF # | 482 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STOPPER,BANK SENSOR | |
REF # | 32085 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-STEP,RR | |
REF # | 34003 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-STEP,FR,LH | |
REF # | 34003A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-STEP,FR,RH | |
REF # | 34003D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STEP,RR | |
REF # | 34028 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STEP,FR,LH | |
REF # | 34028A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STEP,FR,RH | |
REF # | 34028B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STEP,RUBBER | |
REF # | 34028C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STAY,REAR STEP,LH | |
REF # | 35011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,REAR STEP,RH | |
REF # | 35011A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP,10MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,8X36.5 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,12X37 | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,STEP RETURN | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X25 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER,STEP | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,22.5X33X2.3 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
