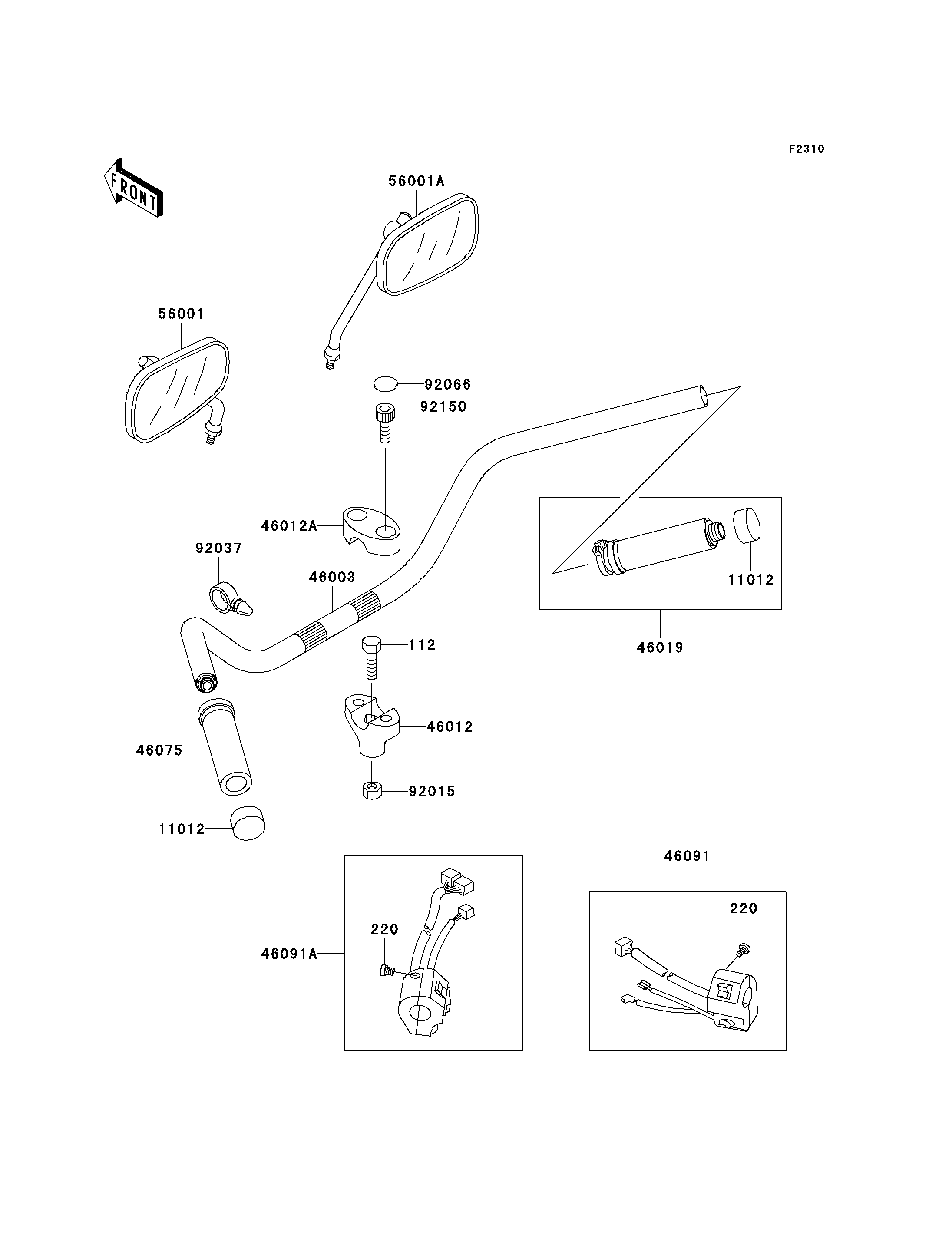

Parts Diagrams |
112
220
220
11012
11012
46003
46012
46012A
46019
46075
46091
46091A
56001
56001A
92015
92037
92066
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET,10X65 | 112 | 112H1065 | 2 | ||
| SCREW-PAN-CROS | 220 | 220C0525 | 4 | ||
| CAP,GRIP END | 11012 | 11012-1975 | 2 | ||
| HANDLE | 46003 | 46003-1508 | 1 | ||
| HOLDER-HANDLE,LWR | 46012 | 46012-1291 | 2 | ||
| HOLDER-HANDLE,UPP | 46012A | 46012-1292 | 2 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1109 | 1 | ||
| GRIP,LH | 46075 | 46075-1074 | 1 | ||
| HOUSING-ASSY-CONTROL,RH | 46091 | 46091-1759 | 1 | ||
| HOUSING-ASSY-CONTROL,LH | 46091A | 46091-1783 | 1 | ||
| MIRROR-ASSY,LH | 56001 | 56001-1503 | 1 | ||
| MIRROR-ASSY,RH | 56001A | 56001-1504 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92015 | 92015-1717 | 2 | ||
| CLAMP,HOSE | 92037 | 92037-1827 | 2 | ||
| PLUG | 92066 | 92066-1285 | 4 | ||
| BOLT,SOCKET,10X23 | 92150 | 92150-1942 | 4 |
