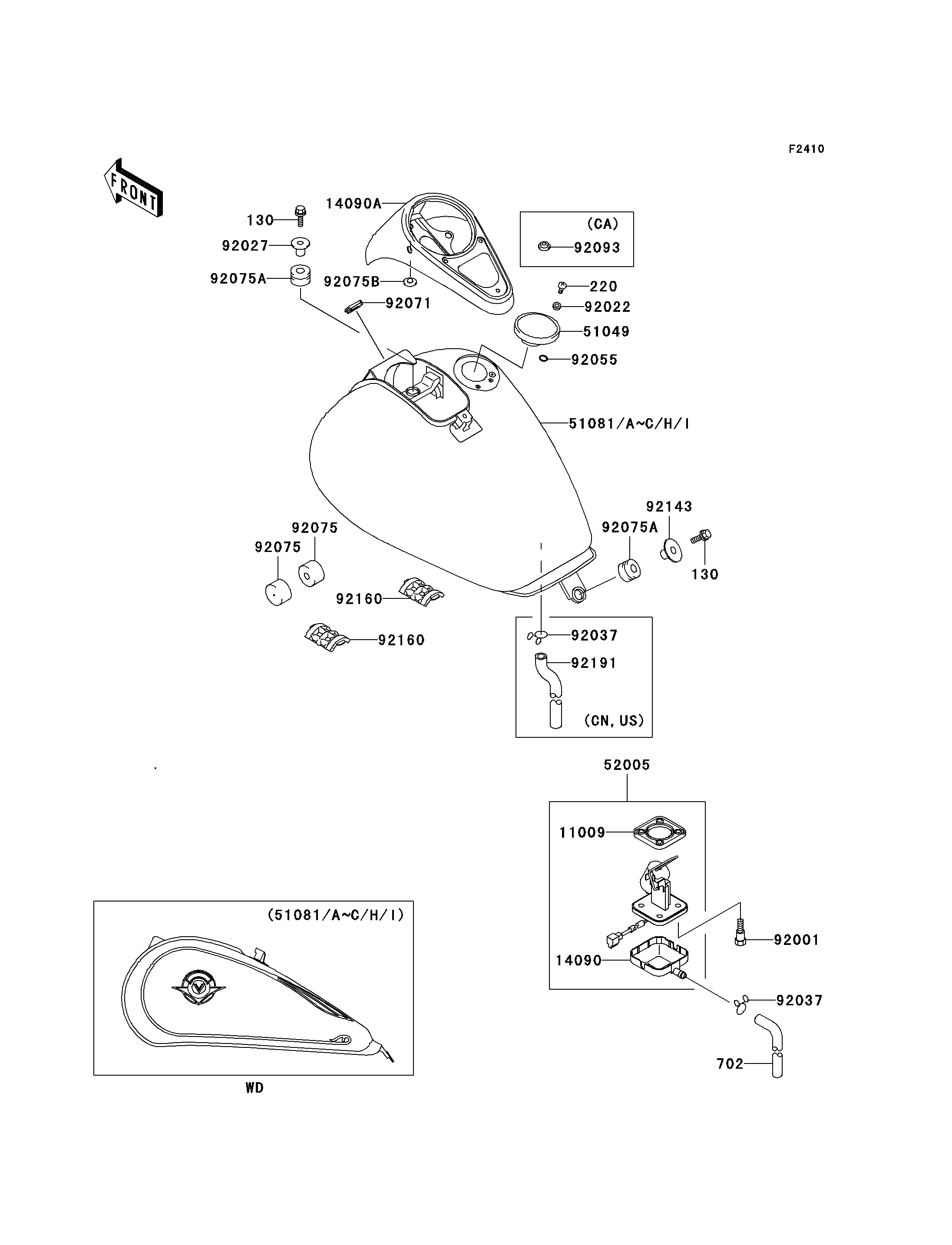

1999 Vulcan 1500 Drifter - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
14090
14090
14090A
14090A
51049
51049
52005
52005
92001
92001
92022
92022
92027
92027
92055
92055
92071
92071
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075B
92075B
130
130
130
130
220
220
702
702
92143
92143
92160
92160
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11009 11009-1656 1
COVER,FUEL GAUGE 14090 14090-1624 1
COVER,METER 14090A 14090-1996 1
CAP-TANK,FUEL 51049 51049-1132 1
GAUGE,FUEL 52005 52005-1129 1
BOLT,FUEL GAUGE 92001 92001-1705 4
WASHER,5.1X10X1.0 92022 92022-1977 2
COLLAR,L=19.3 92027 92027-1780 1
RING-O 92055 92055-1023 2
GROMMET 92071 92071-1187 1
DAMPER,FUEL TANK 92075 92075-125 2
DAMPER 92075A 92075-1736 2
DAMPER,RUBBER 92075B 92075-261 1
BOLT-FLANGED,8X30 130 130H0830 2
SCREW-PAN-CROS 220 220D0510 2
TUBE-RUBBER,7X10X860 702 702A07860 1
COLLAR 92143 92143-1835 1
DAMPER,FUEL TANK 92160 92160-1907 2
TANK-COMP-FUEL,D.GOOSEBERRY 51081 51081-5143-Q6 1 CNUS
TANK-COMP-FUEL,D.GOOSEBERRY 51081A 51081-5144-Q6 1 CA
CLAMP,TUBE 92037 92037-147 1 CA
CLAMP,TUBE 92037 92037-147 2 CNUS
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
TUBE,DRAIN 92191 92191-1272 1 CNUS
