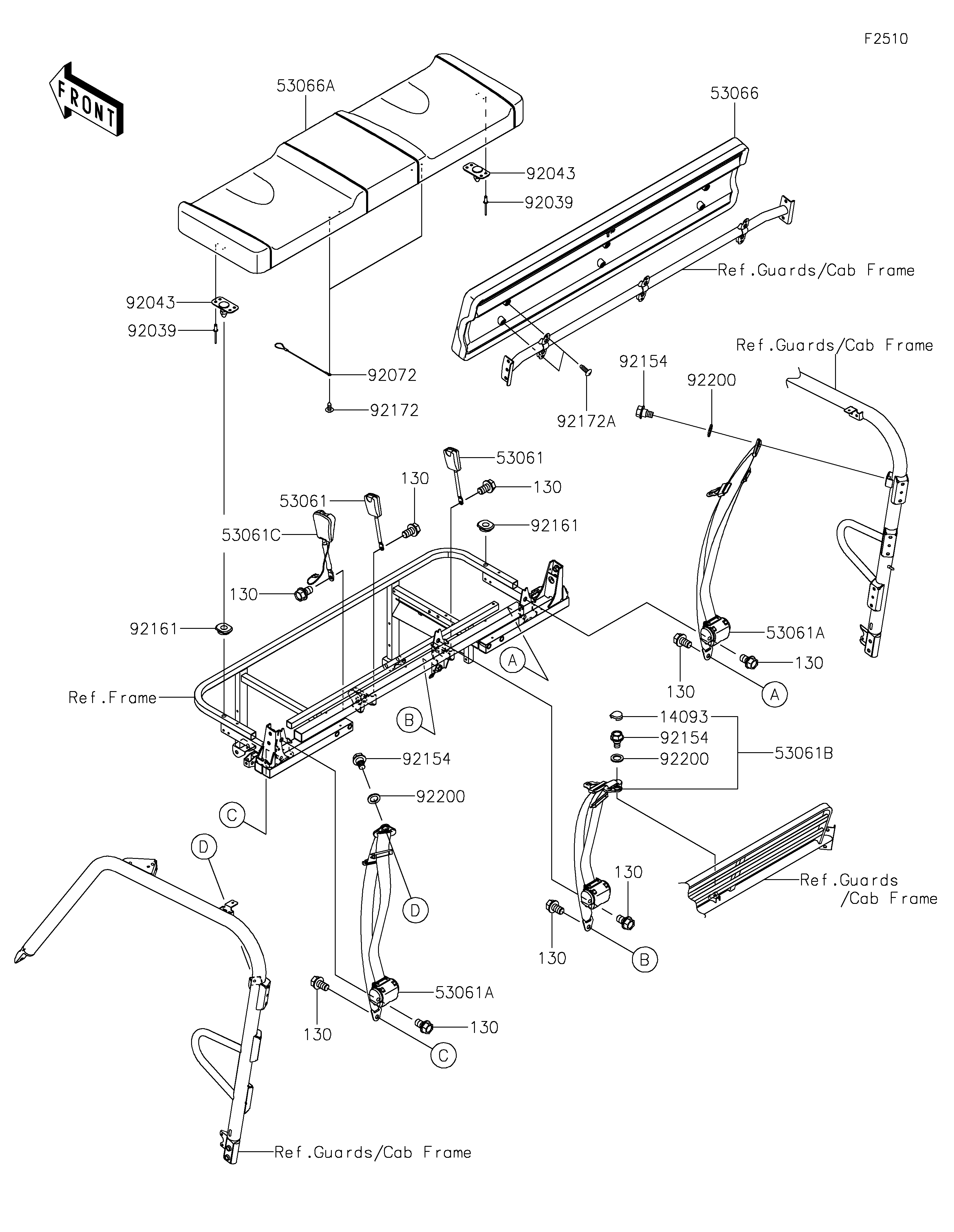

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
14093
53061
53061
53061A
53061A
53061B
53061C
53066
53066A
92039
92039
92043
92043
92072
92154
92154
92154
92161
92161
92172
92172A
92200
92200
92200
130
130
130
130
130
130
130
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,D-RING | 14093 | 14093-1037 | 1 | ||
| BELT-SEAT,BUCKLE | 53061 | 53061-0039 | 2 | ||
| BELT-SEAT,FR,LH&RH | 53061A | 53061-0340 | 2 | ||
| BELT-SEAT,MIDDLE | 53061B | 53061-0341 | 1 | ||
| BELT-SEAT,BUCKLE,SW. | 53061C | 53061-0364 | 1 | ||
| SEAT-ASSY,BACK,A.SILVER+BLK+BL | 53066 | 53066-0746-55X | 1 | ||
| SEAT-ASSY,A.SILVER+BLK | 53066A | 53066-0747-61P | 1 | ||
| RIVET | 92039 | 92039-0747 | 8 | ||
| PIN | 92043 | 92043-0859 | 2 | ||
| BAND | 92072 | 92072-0769 | 2 | ||
| BOLT,FLANGED,10X19.5 | 92154 | 92154-1959 | 3 | ||
| DAMPER,10.5X30X8.2 | 92161 | 92161-1784 | 2 | ||
| SCREW,6X16 | 92172 | 92172-0284 | 2 | ||
| SCREW,TAPPING,6X20 | 92172A | 92172-0488 | 6 | ||
| WASHER,16X22X2 | 92200 | 92200-1798 | 3 | ||
| BOLT-FLANGED,12X20 | 130 | 130BA1220 | 9 |
| COVER,D-RING | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BELT-SEAT,BUCKLE | |
| REF # | 53061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BELT-SEAT,FR,LH&RH | |
| REF # | 53061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BELT-SEAT,MIDDLE | |
| REF # | 53061B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BELT-SEAT,BUCKLE,SW. | |
| REF # | 53061C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY,BACK,A.SILVER+BLK+BL | |
| REF # | 53066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY,A.SILVER+BLK | |
| REF # | 53066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X19.5 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10.5X30X8.2 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X20 | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,16X22X2 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,12X20 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
