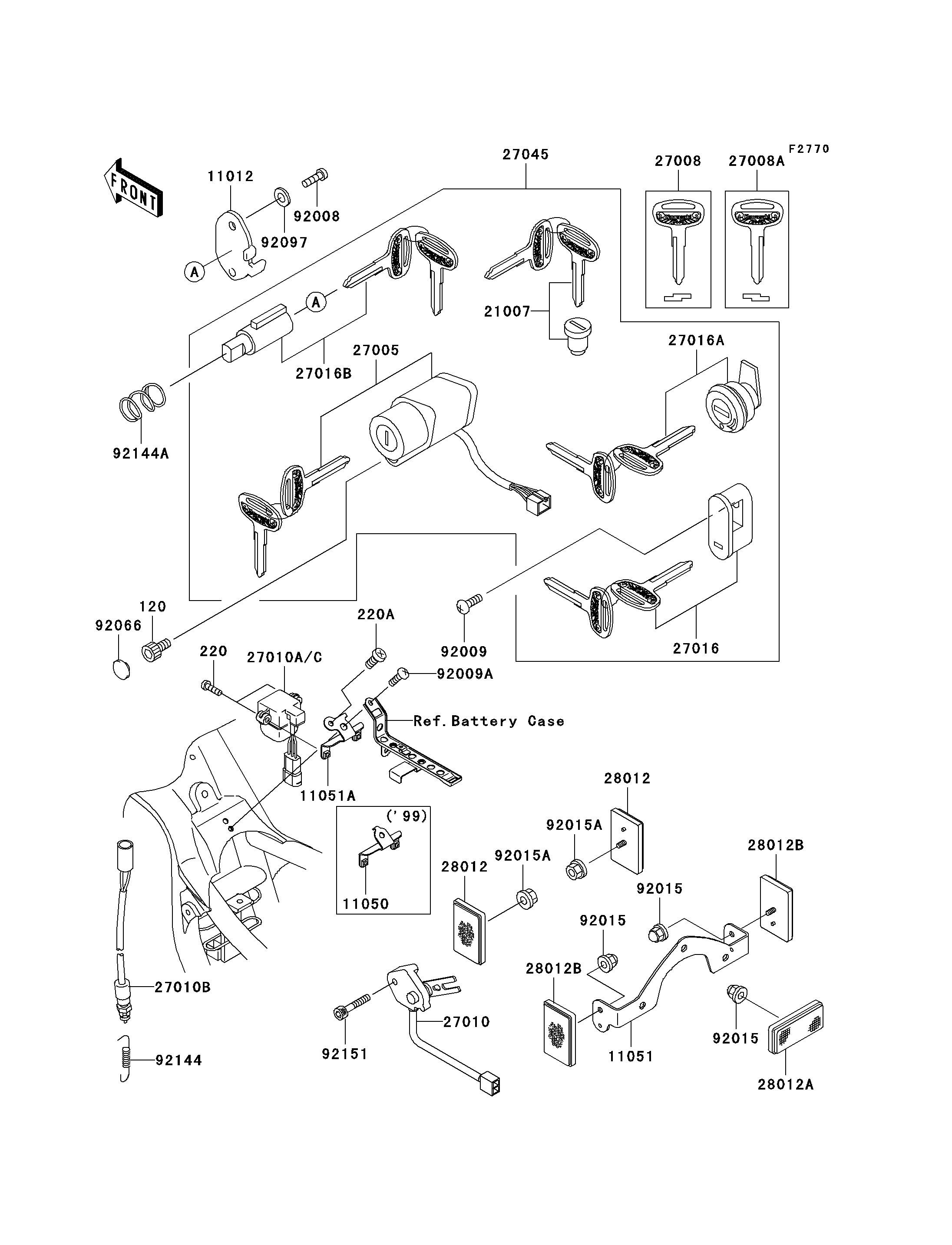

1999 Vulcan 1500 Drifter - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
120
220
11012
11050
11051
21007
27005
27008
27008A
27010
27010A
27010B
27016
27016A
27016B
27045
28012
28012
28012A
28012B
28012B
92008
92009
92009A
92015
92015
92015
92015A
92015A
92066
92097
92144
92144A
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120P0512 1
SCREW-PAN-CROS,4X20 220 220C0420 2
CAP,STEERING LOCK 11012 11012-1586 1
BRACKET,DOWN SENSOR 11050 11050-1954 1
BRACKET,REFLECTOR 11051 11051-1100 1
ROTOR,LOCK,TANK CAP 21007 21007-5041 1
SWITCH-ASSY-IGNITION 27005 27005-1215 1
KEY-LOCK,BLANK,#A 27008 27008-1179 1 (OPTION)
KEY-LOCK,BLANK,#B 27008A 27008-1180 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1359 1
SWITCH,DOWN SENSOR 27010A 27010-1393 1
SWITCH,REAR BRAKE 27010B 27010-1412 1
LOCK-ASSY,HELMET 27016 27016-5243 2
LOCK-ASSY,LID 27016A 27016-5244 1
LOCK-ASSY,STEERING 27016B 27016-5255 1
SWITCH-ASSY 27045 27045-5082 1
REFLECTOR-REFLEX 28012 28012-1003 2
REFLECTOR-REFLEX 28012A 28012-1077 1
REFLECTOR-REFLEX 28012B 28012-1088 2
SCREW,3.51MM 92008 92008-007 1
SCREW,5X12 92009 92009-1296 2
SCREW,6X16 92009A 92009-1621 1
NUT,LOCK,FLANGE CAP,5MM 92015 92015-1263 3
NUT,FLANGED,5MM 92015A 92015-1656 2
PLUG 92066 92066-1435 1
WASHER,WAVE 92097 92097-003 1
SPRING,REAR BRAKE SWITCH 92144 92144-1141 1
SPRING,STEERING LOCK 92144A 92144-1222 1
BOLT,SOCKET,6X35 92151 92151-1390 1
