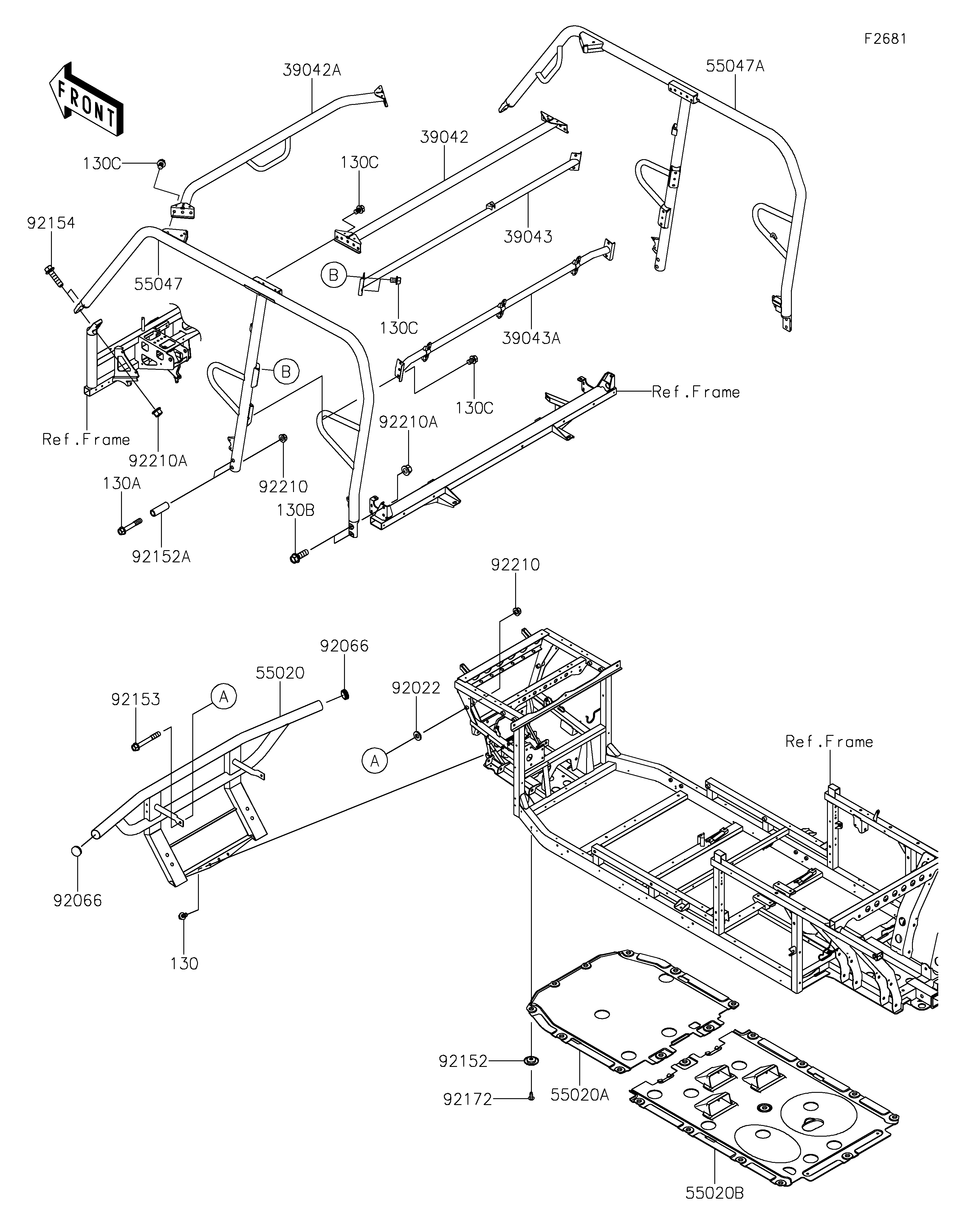

2023 MULE PRO-FXT™ - Guards/Cab Frame

DOWNLOAD PDF
SELECT A NEW PART
39042
39042A
39043
39043A
55020
55020A
55020B
55047
55047A
92022
92066
92066
92152
92152A
92153
92154
92172
92210
92210
92210A
92210A
130
130A
130B
130C
130C
130C
130C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CROSSMEMBER,RR,T.BLACK 39042 39042-0015-388 1
CROSSMEMBER,FR,T.BLACK 39042A 39042-0016-388 1
CROSSMEMBER-COMP,B-P.,UPP,BLK 39043 39043-0016-388 1
CROSSMEMBER-COMP,B-P.,LWR,BLK 39043A 39043-0017-388 1
GUARD,FR PIPE,T.BLACK 55020 55020-0933-388 1
GUARD,SKID PLATE 55020A 55020-0934 1
GUARD,SKID PLATE 55020B 55020-0935 1
BAR-COMP,LH,T.BLACK 55047 55047-0361-388 1
BAR-COMP,RH,T.BLACK 55047A 55047-0362-388 1
WASHER,10X22X3 92022 92022-1365 2
PLUG 92066 92066-0769 2
COLLAR 92152 92152-0784 21
COLLAR,10.5X16X47 92152A 92152-1800 4
BOLT,FLANGED,10X75 92153 92153-1384 2
BOLT,FLANGED,12X45 92154 92154-1420 4
SCREW,TAPPING,6X16 92172 92172-0739 21
NUT,LOCK,FLANGED,10MM 92210 92210-0276 6
NUT,12MM 92210A 92210-0603 8
BOLT-FLANGED,8X16 130 130BA0816 3
BOLT-FLANGED,10X60 130A 130BA1060 4
BOLT-FLANGED,12X35 130B 130BA1235 4
BOLT-FLANGED,10X14 130C 130CA1014 20
