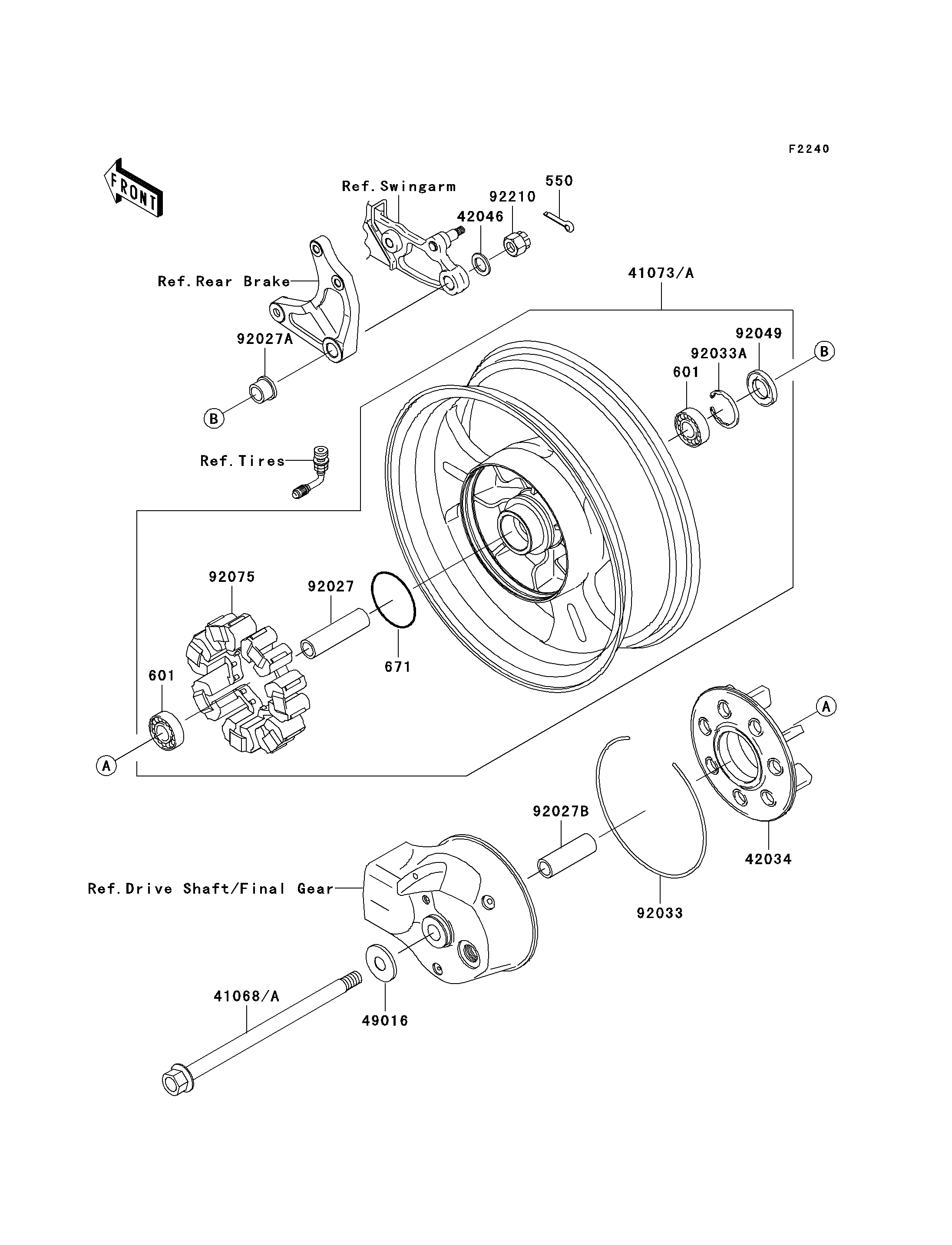

2006 Vulcan 1600 Mean Streak - Rear Wheel/Chain

550
601
601
671
41068A
41073A
42034
42046
49016
92027
92027A
92027B
92033
92033A
92049
92075
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 550 550D4035 1
BEARING-BALL,#6304UUC3 601 601B6304UU 2
O RING,80MM 671 671B2580 1
AXLE,RR 41068A 41068-1410 1
WHEEL-ASSY,RR,P.SILVER 41073A 41073-0042-496 1
COUPLING,RR HUB 42034 42034-0002 1
WASHER,21X33X2.6 42046 42046-003 1
COVER-SEAL 49016 49016-1019 1
COLLAR,20.2X28X105.5 92027 92027-1901 1
COLLAR,RR AXLE,L=21.5 92027A 92027-1902 1
COLLAR,20.2X28X86 92027B 92027-1969 1
RING-SNAP,220MM 92033 92033-0012 1
RING-SNAP,52MM 92033A 92033-1043 1
SEAL-OIL,28X52X5 92049 92049-1061 1
DAMPER,SHOCK,RR HUB 92075 92075-1121 1
NUT,CASTLE,18MM 92210 92210-1134 1
