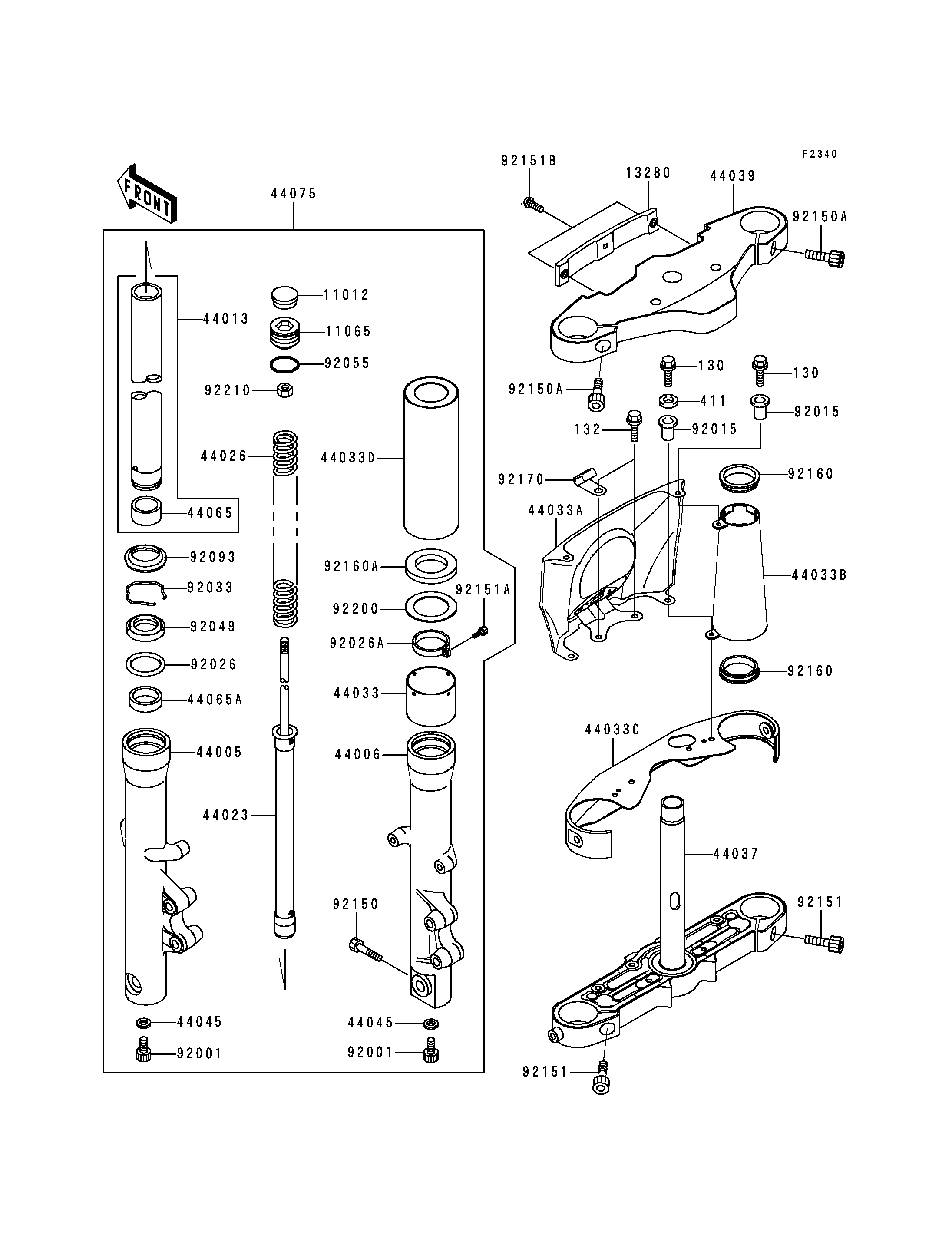

2000 Vulcan 1500 Nomad Fi - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11065
11065
13280
13280
44005
44005
44006
44006
44013
44013
44023
44023
44026
44026
44033
44033
44033A
44033A
44033B
44033B
44033C
44033C
44033D
44033D
44037
44037
44039
44039
44045
44045
44045
44045
44065
44065
44065A
44065A
44075
44075
92001
92001
92001
92001
92015
92015
92015
92015
92026
92026
92026A
92026A
92033
92033
92049
92049
92055
92055
92093
92093
92150
92150
92150A
92150A
92150A
92150A
92151
92151
92151
92151
92151A
92151A
92151B
92151B
92160
92160
92160
92160
92160A
92160A
92170
92170
92200
92200
92210
92210
130
130
130
130
132
132
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FORK TOP 11012 11012-1618 2
CAP,FORK BOLT 11065 11065-1161 2
HOLDER 13280 13280-1070 1
PIPE-LEFT FORK OUTER 44005 44005-1384 1
PIPE-RIGHT FORK OUTER 44006 44006-1384 1
PIPE-FORK INNER 44013 44013-1474 2
CYLINDER-SET-FORK 44023 44023-1146 2
SPRING-FRONT FORK 44026 44026-1706 2
COVER-FORK 44033 44033-1223 2
COVER-FORK,CNT 44033A 44033-1228 1
COVER-FORK,UPP 44033B 44033-1229 2
COVER-FORK,LWR 44033C 44033-1230 1
COVER-FORK 44033D 44033-1236 2
HOLDER-FORK UNDER 44037 44037-1368 1
HOLDER-FORK UPPER 44039 44039-1279 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
BUSHING-FRONT FORK,INNER PIPE 44065 44065-1126 2
BUSHING-FRONT FORK 44065A 44065-1127 2
DAMPER-SET-FORK 44075 44075-1116 1
BOLT,FORK CYLINDER 92001 92001-1464 2
NUT,WELL,5MM 92015 92015-1757 4
SPACER,FORK OUTER 92026 92026-1276 2
SPACER 92026A 92026-1515 2
RING-SNAP,FORK OUTER 92033 92033-1222 2
SEAL-OIL,FORK 92049 92049-1363 2
RING-O 92055 92055-1635 2
SEAL,FORK 92093 92093-1268 2
BOLT,SOCKET,10X40 92150 92150-1029 1
BOLT,SOCKET,8X30 92150A 92150-1031 2
BOLT,SOCKET,10X25 92151 92151-1083 2
BOLT,SOCKET,4X16 92151A 92151-1356 2
BOLT,SOCKET,6X20 92151B 92151-1749 2
DAMPER 92160 92160-1892 4
DAMPER 92160A 92160-1927 2
CLAMP,HARNESS 92170 92170-1900 1
WASHER 92200 92200-1417 2
NUT 92210 92210-1235 2
BOLT-FLANGED 130 130J0516 4
BOLT-FLANGED-SMALL 132 132E0612 2
WASHER-PLAIN,5MM,BLACK 411 411F0500 2
