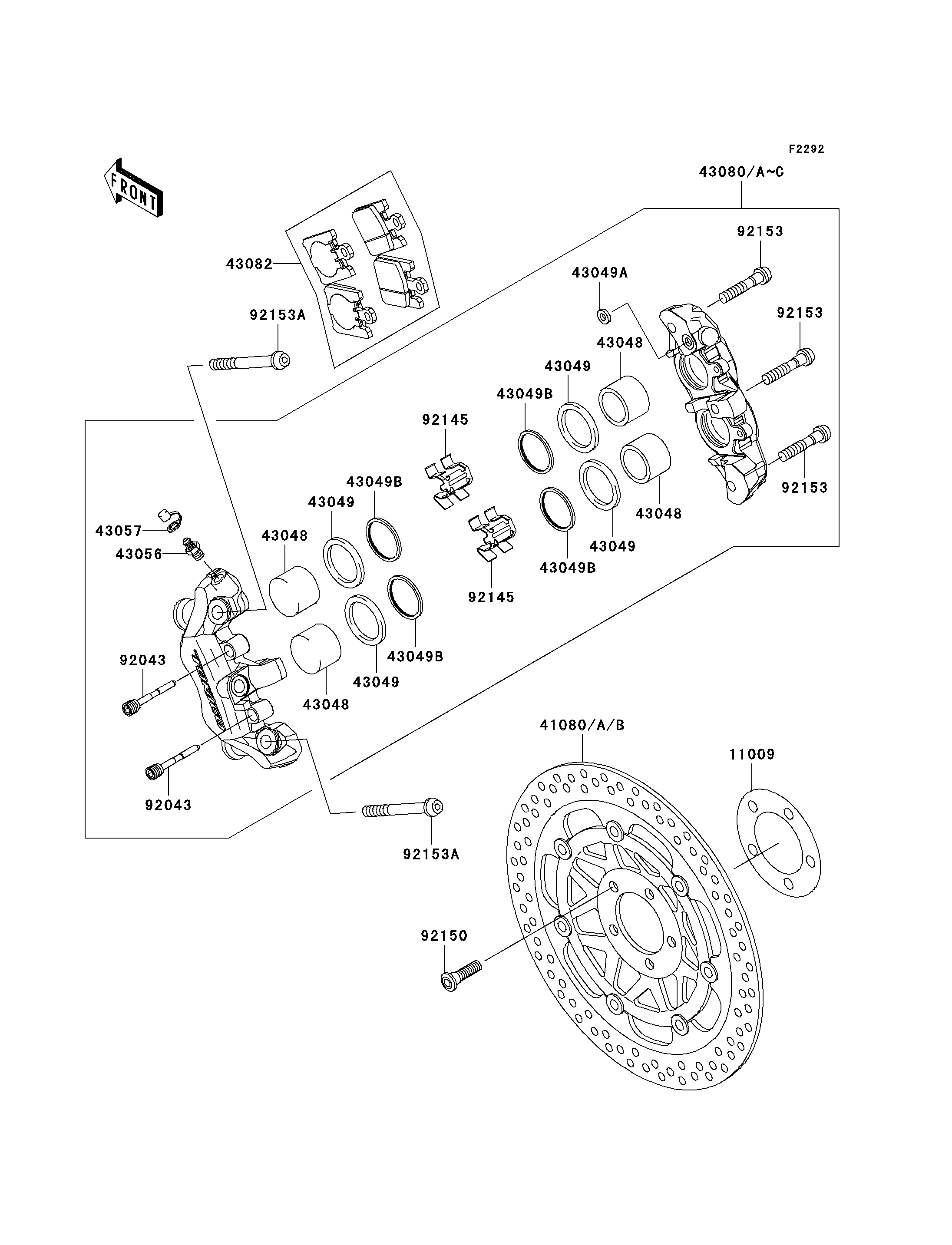

2006 Vulcan 1600 Mean Streak - Front Brake
11009
41080B
43048
43048
43048
43048
43049
43049
43049
43049
43049A
43049B
43049B
43049B
43049B
43056
43057
43080A
43080C
43082
92043
92043
92145
92145
92150
92153
92153
92153
92153A
92153A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,DISC PLATE | 11009 | 11009-1754 | 2 | ||
| DISC,FR,SILVER+DISC-SILVER | 41080B | 41080-0072-5D | 2 | ||
| PISTON-CALIPER | 43048 | 43048-0004 | 8 | ||
| PACKING,PISTON | 43049 | 43049-0003 | 8 | ||
| PACKING,SEAL,6.5X11.5X2.2 | 43049A | 43049-1004 | 2 | ||
| PACKING,WIPER | 43049B | 43049-1107 | 8 | ||
| BREATHER-BRAKE | 43056 | 43056-1054 | 2 | ||
| CAP-BREATHER | 43057 | 43057-003 | 2 | ||
| CALIPER-SUB-ASSY,FR,LH,SILVER | 43080A | 43080-0017-GN | 1 | ||
| CALIPER-SUB-ASSY,FR,RH,SILVER | 43080C | 43080-0018-GN | 1 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-0031 | 2 | ||
| PIN,PAD | 92043 | 92043-1709 | 4 | ||
| SPRING,PAD | 92145 | 92145-1568 | 4 | ||
| BOLT,SOCKET,8X30 | 92150 | 92150-1771 | 10 | ||
| BOLT,SOCKET,8X40 | 92153 | 92153-0360 | 6 | ||
| BOLT,SOCKET,10X60 | 92153A | 92153-1531 | 4 |
| GASKET,DISC PLATE | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DISC,FR,SILVER+DISC-SILVER | |
| REF # | 41080B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PISTON-CALIPER | |
| REF # | 43048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PACKING,PISTON | |
| REF # | 43049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PACKING,SEAL,6.5X11.5X2.2 | |
| REF # | 43049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PACKING,WIPER | |
| REF # | 43049B |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BREATHER-BRAKE | |
| REF # | 43056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP-BREATHER | |
| REF # | 43057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CALIPER-SUB-ASSY,FR,LH,SILVER | |
| REF # | 43080A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CALIPER-SUB-ASSY,FR,RH,SILVER | |
| REF # | 43080C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD-ASSY-BRAKE | |
| REF # | 43082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,PAD | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPRING,PAD | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X30 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X40 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,10X60 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
