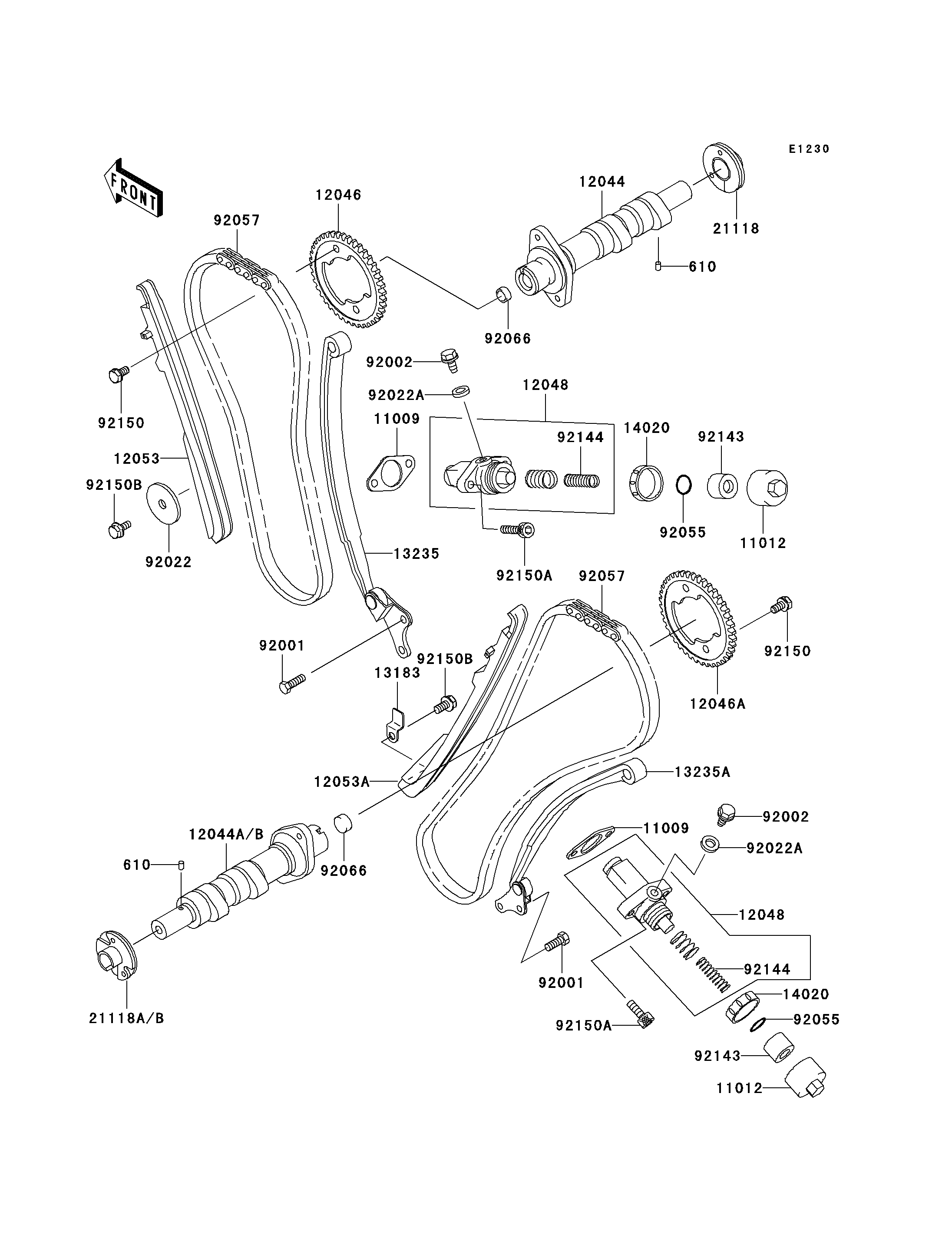

2001 Vulcan 1500 Nomad Fi - Camshaft(s)/Tensioner
610
610
11009
11009
11012
11012
12044
12044A
12046
12046A
12048
12048
12053
12053A
13183
13235
13235A
14020
14020
21118
21118A
92001
92001
92002
92002
92022
92022A
92022A
92055
92055
92057
92057
92066
92066
92143
92143
92144
92144
92150
92150
92150A
92150A
92150B
92150B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
ROLLER,4X6 | 610 | 610A0406 | 2 | ||
GASKET,TENSIONER | 11009 | 11009-1858 | 2 | ||
CAP,TENSIONER | 11012 | 11012-1959 | 2 | ||
CAMSHAFT-VALVE,FR | 12044 | 12044-1200 | 1 | ||
CAMSHAFT-VALVE,RR | 12044A | 12044-1201 | 1 | ||
SPROCKET,CAMSHAFT,FR,46T | 12046 | 12046-1175 | 1 | ||
SPROCKET,CAMSHAFT,RR,46T | 12046A | 12046-1176 | 1 | ||
TENSIONER-ASSY | 12048 | 12048-1160 | 2 | ||
GUIDE-CHAIN,FR,TENSIONER | 12053 | 12053-1219 | 1 | ||
GUIDE-CHAIN,RR,TENSIONER | 12053A | 12053-1221 | 1 | ||
PLATE | 13183 | 13183-1096 | 1 | ||
GUIDE-COMP,FR | 13235 | 13235-1070 | 1 | ||
GUIDE-COMP,RR | 13235A | 13235-1071 | 1 | ||
RETAINER,TENSIONER | 14020 | 14020-1054 | 2 | ||
DECOMPRESSOR,FR | 21118 | 21118-1061 | 1 | ||
DECOMPRESSOR,RR | 21118A | 21118-1083 | 1 | ||
BOLT,6X16 | 92001 | 92001-1457 | 4 | ||
BOLT,6MM | 92002 | 92002-1356 | 2 | ||
WASHER,7X27X1.6 | 92022 | 92022-227 | 1 | ||
WASHER,6.2X11X1 | 92022A | 92022-304 | 2 | ||
RING-O,TENSIONER | 92055 | 92055-1555 | 2 | ||
CHAIN,CAM,92RH2010 | 92057 | 92057-1422 | 2 | ||
PLUG | 92066 | 92066-1198 | 2 | ||
COLLAR,TENSIONER | 92143 | 92143-1836 | 2 | ||
SPRING,TENSIONER | 92144 | 92144-1921 | 2 | ||
BOLT,FLANGED,6X11 | 92150 | 92150-1725 | 4 | ||
BOLT,SOCKET,6X20 | 92150A | 92150-1795 | 4 | ||
BOLT,6X12 | 92150B | 92150-1868 | 2 |
ROLLER,4X6 | |
REF # | 610 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,TENSIONER | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP,TENSIONER | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAMSHAFT-VALVE,FR | |
REF # | 12044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAMSHAFT-VALVE,RR | |
REF # | 12044A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET,CAMSHAFT,FR,46T | |
REF # | 12046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET,CAMSHAFT,RR,46T | |
REF # | 12046A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TENSIONER-ASSY | |
REF # | 12048 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,FR,TENSIONER | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR,TENSIONER | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13183 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-COMP,FR | |
REF # | 13235 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-COMP,RR | |
REF # | 13235A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RETAINER,TENSIONER | |
REF # | 14020 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DECOMPRESSOR,FR | |
REF # | 21118 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DECOMPRESSOR,RR | |
REF # | 21118A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,6MM | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,7X27X1.6 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6.2X11X1 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,TENSIONER | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CHAIN,CAM,92RH2010 | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,TENSIONER | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,TENSIONER | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X11 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X20 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92150B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
