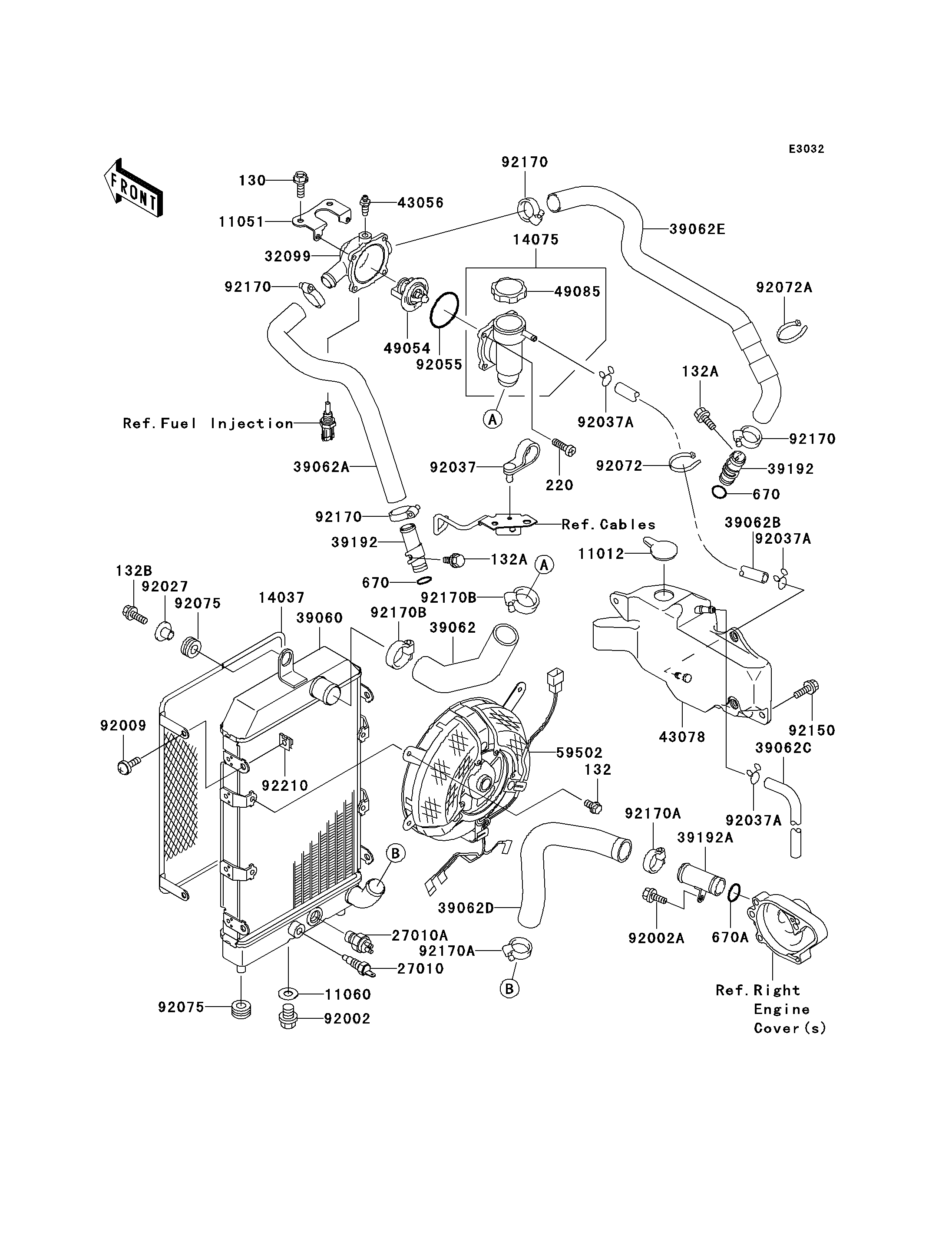

2001 Vulcan 1500 Nomad Fi - Radiator

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
132
132A
132A
132A
132A
11012
11012
11051
11051
11060
11060
14037
14037
14075
14075
27010
27010
27010A
27010A
32099
32099
39060
39060
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39192
39192
39192
39192
39192A
39192A
43056
43056
43078
43078
49054
49054
49085
49085
59502
59502
92002
92002
92002A
92002A
92009
92009
92027
92027
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92055
92055
92072
92072
92072A
92072A
92075
92075
92075
92075
92150
92150
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92170B
92170B
92170B
92170B
92210
92210
132B
132B
220
220
670
670
670
670
670A
670A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X18 130 130J0618 2
BOLT-FLANGED-SMALL,6X10 132 132J0610 4
BOLT-FLANGED-SMALL 132A 132J0612 2
CAP 11012 11012-1585 1
BRACKET,THERMOSTAT CASE 11051 11051-1535 1
GASKET,DRAIN PLUG 11060 11060-1767 1
SCREEN 14037 14037-1251 1
CAP-ASSY 14075 14075-1068 1
SWITCH,WARNING 27010 27010-1305 1
SWITCH,FAN 27010A 27010-1364 1
CASE,THERMOSTAT 32099 32099-1201 1
RADIATOR 39060 39060-1165 1
HOSE-COOLING,THERMO-RADIATOR 39062 39062-1696 1
HOSE-COOLING,FR HEAD-THERMO 39062A 39062-1785 1
HOSE-COOLING,THERMO-RESER 39062B 39062-1796 1
HOSE-COOLING,OVERFLOW 39062C 39062-1814 1
HOSE-COOLING,RADIATOR-PUMP 39062D 39062-1850 1
HOSE-COOLING,HEAD,RR-THERMO 39062E 39062-1864 1
PIPE-WATER 39192 39192-1094 2
PIPE-WATER 39192A 39192-1096 1
BREATHER 43056 43056-003 1
RESERVOIR 43078 43078-1164 1
THERMOSTAT 49054 49054-1067 1
CAP-ASSY-PRESSURE 49085 49085-1067 1
FAN-ASSY 59502 59502-1127 1
BOLT,FLANGED,10X10 92002 92002-1311 1
BOLT,6X12 92002A 92002-1569 1
SCREW,6X10 92009 92009-1402 4
COLLAR,L=13.1,BLACK 92027 92027-1450 1
CLAMP,SPEED,L=58 92037 92037-1163 1
CLAMP,TUBE 92037A 92037-147 3
RING-O,53.5X2.6 92055 92055-112 1
BAND,L=250 92072 92072-1237 1
BAND 92072A 92072-1398 1
DAMPER 92075 92075-1690 3
BOLT,6X14 92150 92150-1392 2
CLAMP,COOLING HOSE 92170 92170-1032 4
CLAMP,COOLING HOSE 92170A 92170-1034 2
CLAMP,COOLING HOSE 92170B 92170-1284 2
NUT 92210 92210-1125 4
BOLT-FLANGED-SMALL 132B 132J0625 1
SCREW-PAN-CROS,5X14 220 220D0514 4
O RING,14MM 670 670B2014 2
O RING,18MM 670A 670B2018 1
