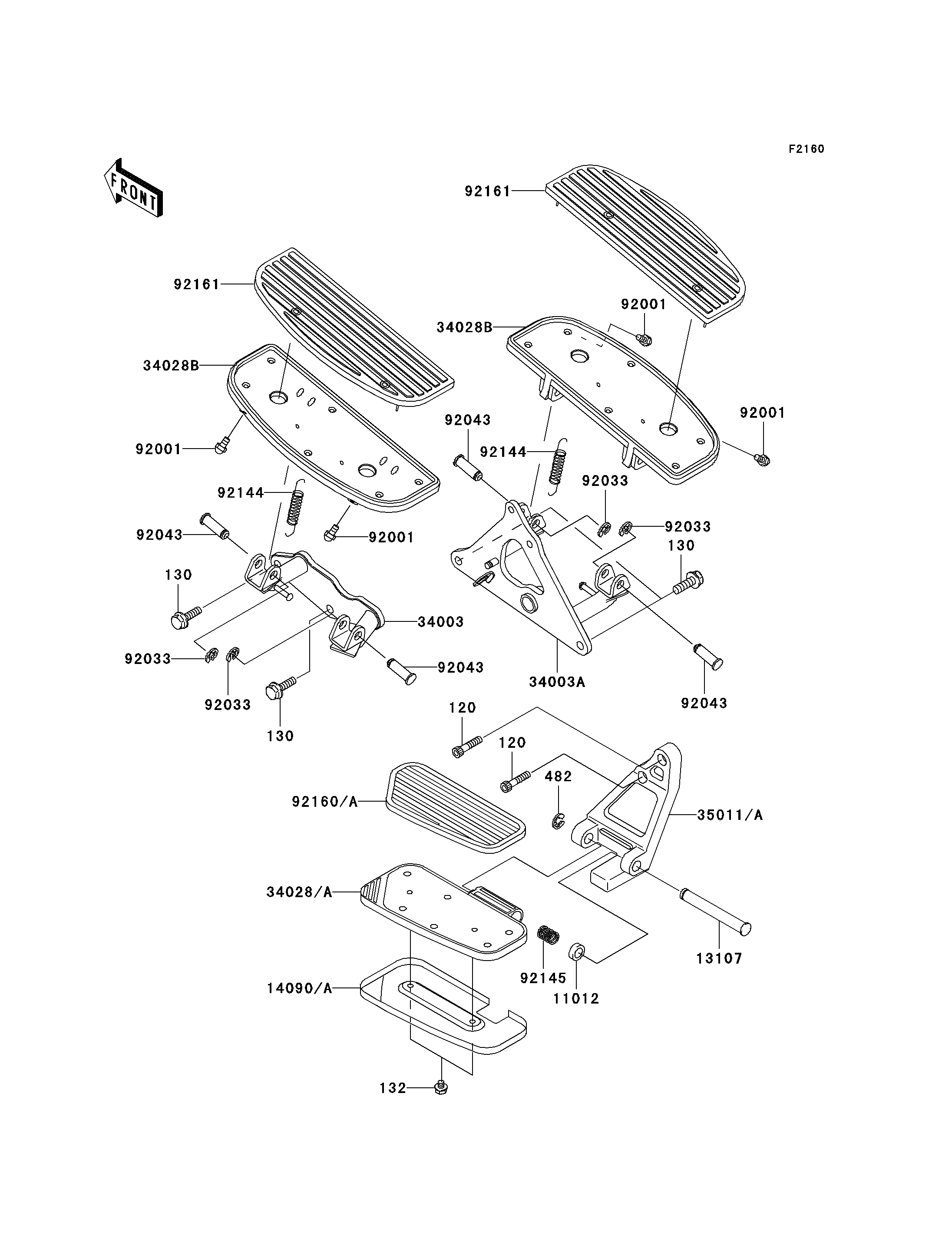

Parts Diagrams |
120
120
130
130
130
132
482
11012
13107
14090
14090A
34003
34003A
34028
34028A
34028B
34028B
35011
35011A
92001
92001
92001
92001
92033
92033
92033
92033
92043
92043
92043
92043
92144
92144
92145
92160
92160A
92161
92161
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,8X35,BLACK | 120 | 120S0835 | 4 | ||
BOLT-FLANGED,10X30 | 130 | 130J1030 | 4 | ||
BOLT-FLANGED-SMALL,6X8 | 132 | 132E0608 | 4 | ||
CIRCLIP-TYPE-E | 482 | 482L0200 | 2 | ||
CAP,MUFFLER STAY | 11012 | 11012-1498 | 2 | ||
SHAFT,REAR STEP | 13107 | 13107-1174 | 2 | ||
COVER,REAR STEP,LH | 14090 | 14090-1907 | 1 | ||
COVER,REAR STEP,RH | 14090A | 14090-1908 | 1 | ||
HOLDER-STEP,FR,LH | 34003 | 34003-1501 | 1 | ||
HOLDER-STEP,FR,RH | 34003A | 34003-1502 | 1 | ||
STEP,RR,LH | 34028 | 34028-1459 | 1 | ||
STEP,RR,RH | 34028A | 34028-1460 | 1 | ||
STEP,FR | 34028B | 34028-1497 | 2 | ||
STAY,REAR STEP,LH | 35011 | 35011-1897 | 1 | ||
STAY,REAR STEP,RH | 35011A | 35011-1898 | 1 | ||
BOLT,BANK SENSOR | 92001 | 92001-1905 | 4 | ||
RING-SNAP,10MM | 92033 | 92033-1166 | 4 | ||
PIN,12X37 | 92043 | 92043-1358 | 4 | ||
SPRING,BRAKE PEDAL RETURN | 92144 | 92144-1266 | 2 | ||
SPRING,REAR STEP | 92145 | 92145-1130 | 2 | ||
DAMPER,REAR STEP,LH | 92160 | 92160-1904 | 1 | ||
DAMPER,REAR STEP,RH | 92160A | 92160-1905 | 1 | ||
DAMPER,FRONT STEP | 92161 | 92161-1154 | 2 |
