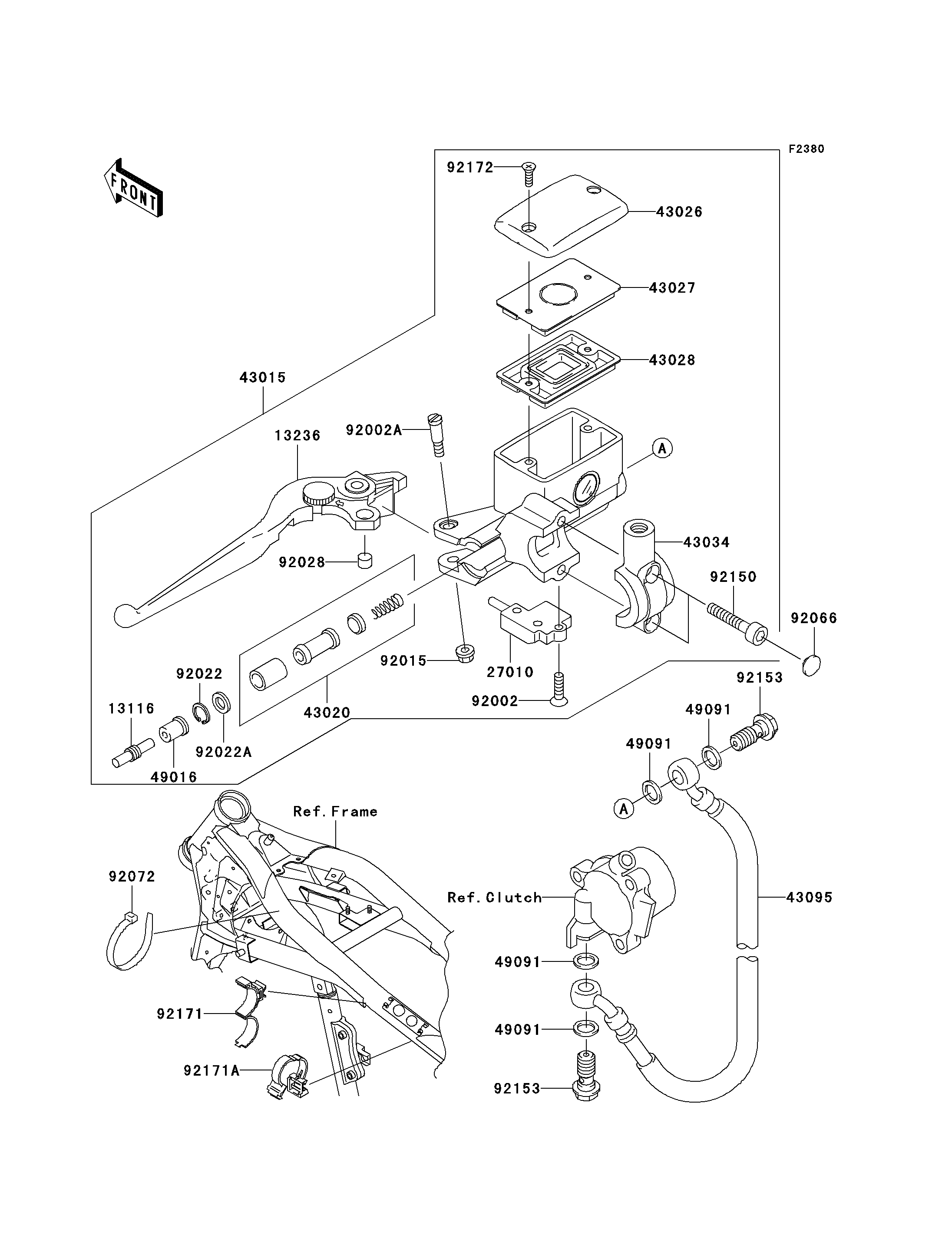

2006 Vulcan 1600 Mean Streak - Clutch Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13116
13236
27010
43015
43020
43026
43027
43028
43034
43095
49016
49091
49091
49091
49091
92002
92002A
92015
92022
92022A
92028
92066
92072
92150
92153
92153
92171
92171A
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROD-PUSH,MASTER CYLINDER 13116 13116-1110 1
LEVER-COMP,CLUTCH 13236 13236-1316 1
SWITCH,CLUTCH 27010 27010-1406 1
CYLINDER-ASSY-MASTER,CLUTCH 43015 43015-0035 1
PISTON-COMP-BRAKE,CLUTCH 43020 43020-1055 1
CAP-BRAKE 43026 43026-0003 1
PLATE-DIAPHRAGM 43027 43027-1059 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1058 1
HOLDER-BRAKE 43034 43034-1172 1
HOSE-BRAKE,CLUTCH 43095 43095-1215 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
SCREW,4X16 92002 92002-1325 1
BOLT,LEVER SET 92002A 92002-1561 1
NUT,FLANGED,6MM 92015 92015-1528 1
CIRCLIP 92022 92022-1605 1
WASHER,PISTON 92022A 92022-1606 1
BUSHING,MASTER CYLINDER 92028 92028-1310 1
PLUG 92066 92066-1301 2
BAND,L=365 92072 92072-1197 1
BOLT,SOCKET,6MM 92150 92150-1025 2
BOLT,OIL,L=23 92153 92153-0627 2
CLAMP,DIA=15 92171 92171-1424 1
CLAMP,HOSE 92171A 92171-1440 1
SCREW 92172 92172-0083 2
