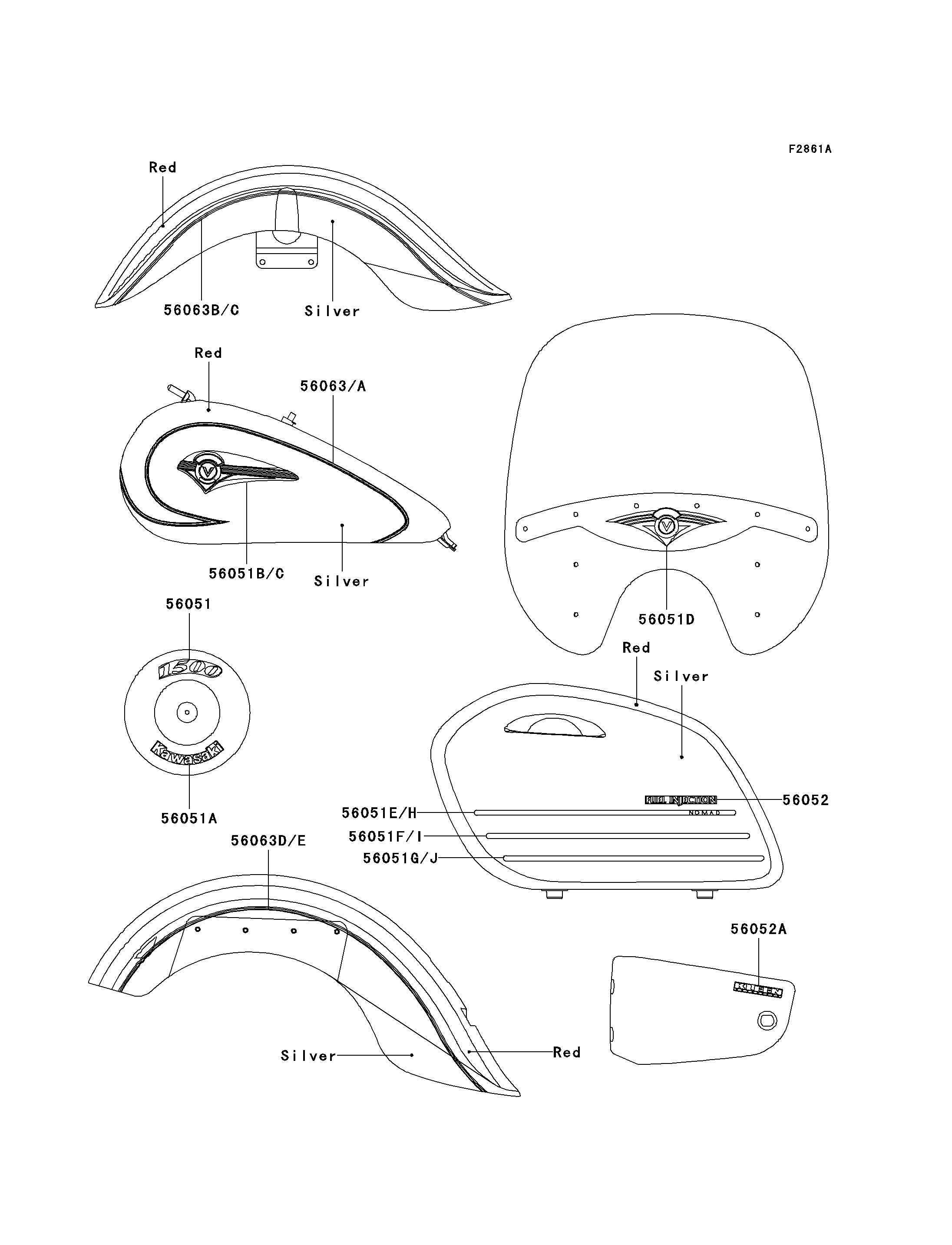

2001 Vulcan 1500 Nomad Fi - Decals(Red/Silver)(VN1500-L2)

DOWNLOAD PDF
SELECT A NEW PART
56051
56051A
56051B
56051C
56051D
56051E
56051F
56051G
56051H
56051I
56051J
56052
56052A
56063
56063A
56063B
56063C
56063D
56063E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,AIR CLEANER,1500 56051 56051-1459 1
MARK,AIR CLEANER,KAWASAKI 56051A 56051-1460 1
MARK,FUEL TANK,LH 56051B 56051-1808 1
MARK,FUEL TANK,RH 56051C 56051-1809 1
MARK,WINDSHIELD BRACKET 56051D 56051-1810 1
MARK,SIDE BAG COVER,UPP,LH 56051E 56051-1811 1
MARK,SIDE BAG COVER,CNT,LH 56051F 56051-1812 1
MARK,SIDE BAG COVER,LWR,LH 56051G 56051-1813 1
MARK,SIDE BAG COVER,UPP,RH 56051H 56051-1814 1
MARK,SIDE BAG COVER,CNT,RH 56051I 56051-1815 1
MARK,SIDE BAG COVER,LWR,RH 56051J 56051-1816 1
MARK,SIDE BAG,FUEL INJECTION 56052 56052-1323 2
MARK,SIDE COVER,KLEEN 56052A 56052-1384 1
PATTERN,FUEL TANK,LH 56063 56063-1960 1
PATTERN,FUEL TANK,RH 56063A 56063-1961 1
PATTERN,FR FENDER,LH 56063B 56063-1962 1
PATTERN,FR FENDER,RH 56063C 56063-1963 1
PATTERN,RR FENDER,LH 56063D 56063-1964 1
PATTERN,RR FENDER,RH 56063E 56063-1965 1
