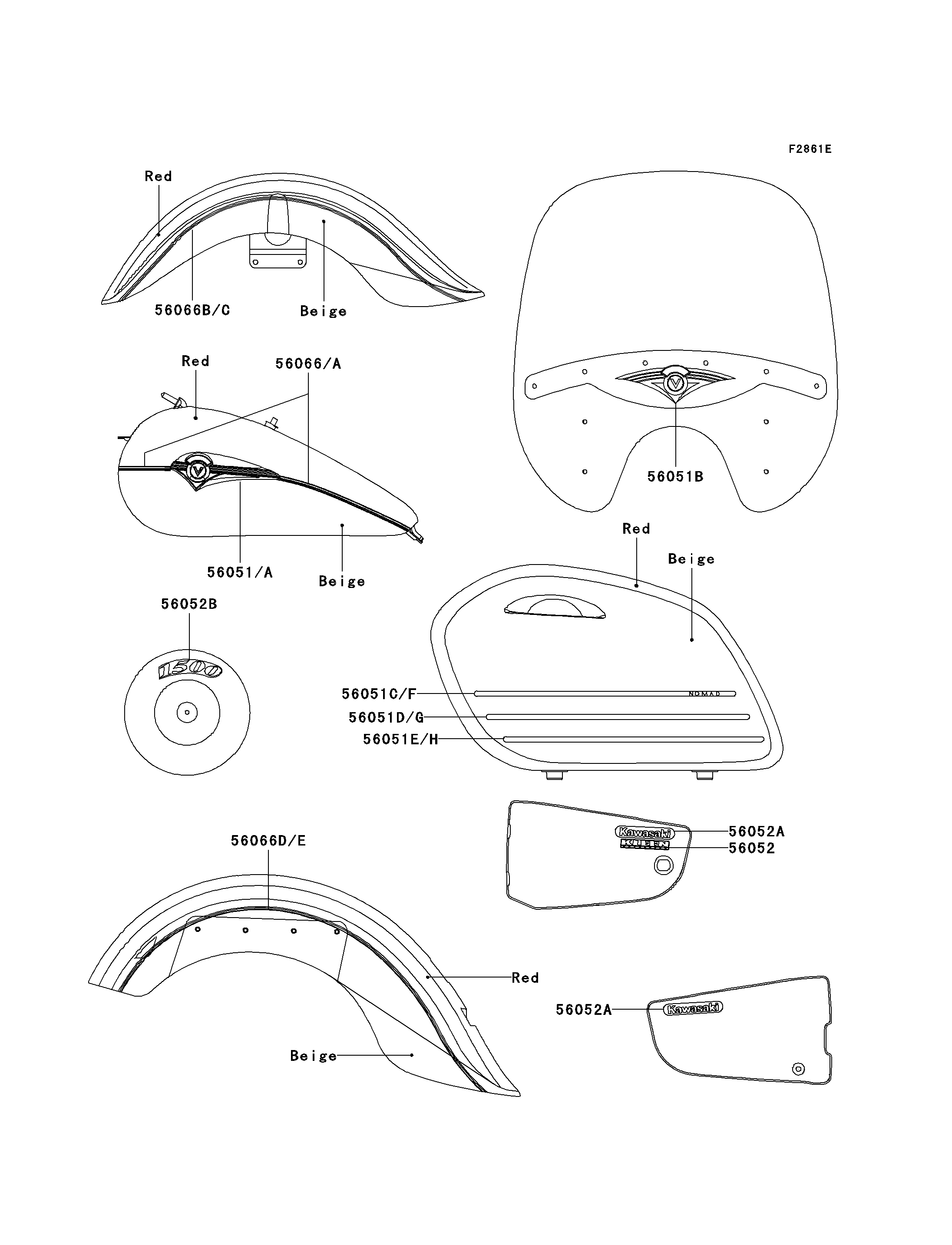

2003 Vulcan 1500 Nomad Fi - Decals(Red/Beige)(VN1500-L4)
56051
56051A
56051B
56051C
56051D
56051E
56051F
56051G
56051H
56052
56052A
56052A
56052B
56066
56066A
56066B
56066C
56066D
56066E
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LH | 56051 | 56051-1808 | 1 | ||
| MARK,FUEL TANK,RH | 56051A | 56051-1809 | 1 | ||
| MARK,WINDSHIELD BRACKET | 56051B | 56051-1810 | 1 | ||
| MARK,SIDE BAG COVER,UPP,LH | 56051C | 56051-1811 | 1 | ||
| MARK,SIDE BAG COVER,CNT,LH | 56051D | 56051-1812 | 1 | ||
| MARK,SIDE BAG COVER,LWR,LH | 56051E | 56051-1813 | 1 | ||
| MARK,SIDE BAG COVER,UPP,RH | 56051F | 56051-1814 | 1 | ||
| MARK,SIDE BAG COVER,CNT,RH | 56051G | 56051-1815 | 1 | ||
| MARK,SIDE BAG COVER,LWR,RH | 56051H | 56051-1816 | 1 | ||
| MARK,SIDE COVER,KLEEN | 56052 | 56052-1384 | 1 | ||
| MARK,SIDE COVER,KAWASAKI | 56052A | 56052-1533 | 2 | ||
| MARK,AIR CLEANER COVER,RH,1500 | 56052B | 56052-1545 | 1 | ||
| PATTERN,FUEL TANK,LH | 56066 | 56066-1125 | 1 | ||
| PATTERN,FUEL TANK,RH | 56066A | 56066-1126 | 1 | ||
| PATTERN,FR FENDER,LH | 56066B | 56066-1127 | 1 | ||
| PATTERN,FR FENDER,RH | 56066C | 56066-1128 | 1 | ||
| PATTERN,RR FENDER,LH | 56066D | 56066-1129 | 1 | ||
| PATTERN,RR FENDER,RH | 56066E | 56066-1130 | 1 |
