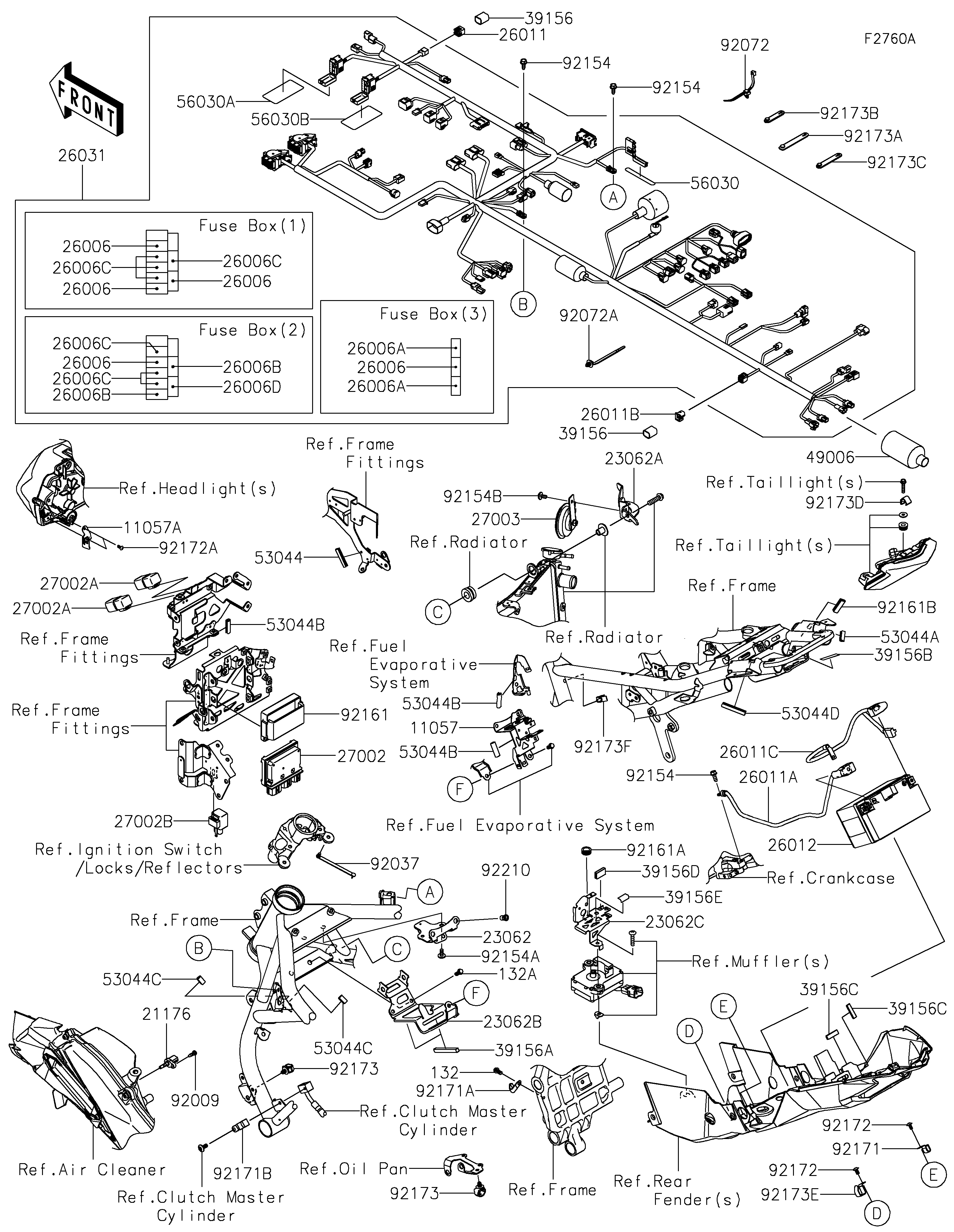

2022 Z H2 - Chassis Electrical Equipment(CA)
11057
11057
11057
11057
11057A
11057A
11057A
11057A
21176
21176
21176
21176
23062
23062
23062
23062
23062A
23062A
23062A
23062A
23062B
23062B
23062B
23062B
23062C
23062C
23062C
23062C
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006D
26006D
26006D
26006D
26011
26011
26011
26011
26011A
26011A
26011A
26011A
26011B
26011B
26011B
26011B
26011C
26011C
26011C
26011C
26012
26012
26012
26012
26031
26031
26031
26031
27002
27002
27002
27002
27002A
27002A
27002A
27002A
27002A
27002A
27002A
27002A
27002B
27002B
27002B
27002B
27003
27003
27003
27003
39156
39156
39156
39156
39156
39156
39156
39156
39156A
39156A
39156A
39156A
39156B
39156B
39156B
39156B
39156C
39156C
39156C
39156C
39156C
39156C
39156C
39156C
39156D
39156D
39156D
39156D
39156E
39156E
39156E
39156E
49006
49006
49006
49006
53044
53044
53044
53044
53044A
53044A
53044A
53044A
53044B
53044B
53044B
53044B
53044B
53044B
53044B
53044B
53044B
53044B
53044B
53044B
53044C
53044C
53044C
53044C
53044C
53044C
53044C
53044C
53044D
53044D
53044D
53044D
56030
56030
56030
56030
56030A
56030A
56030A
56030A
56030B
56030B
56030B
56030B
92009
92009
92009
92009
92037
92037
92037
92037
92072
92072
92072
92072
92072A
92072A
92072A
92072A
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92171
92171
92171
92171
92171A
92171A
92171A
92171A
92171B
92171B
92171B
92171B
92172
92172
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92173
92173
92173
92173
92173
92173
92173
92173
92173A
92173A
92173A
92173A
92173B
92173B
92173B
92173B
92173C
92173C
92173C
92173C
92173D
92173D
92173D
92173D
92173E
92173E
92173E
92173E
92173F
92173F
92173F
92173F
92210
92210
92210
92210
132
132
132
132
132A
132A
132A
132A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HARNESS CONNECTOR | 11057 | 11057-2939 | 1 | _________________________________________CA | |
| BRACKET,FR SIGNAL CONNECTOR | 11057A | 11057-4159 | 1 | _________________________________________CA | |
| SENSOR,AIR TEMPERATURE | 21176 | 21176-0048 | 1 | _________________________________________CA | |
| BRACKET-COMP | 23062 | 23062-1272 | 1 | _________________________________________CA | |
| BRACKET-COMP,HORN | 23062A | 23062-1290 | 1 | _________________________________________CA | |
| BRACKET-COMP,CANISTER | 23062B | 23062-1293 | 1 | _________________________________________CA | |
| BRACKET-COMP | 23062C | 23062-1334 | 1 | _________________________________________CA | |
| FUSE,MINI BLADE,15A,BLUE | 26006 | 26006-0001 | 5 | _________________________________________CA | |
| FUSE,MINI BLADE,25A,NATURAL | 26006A | 26006-0020 | 2 | _________________________________________CA | |
| FUSE,MINI BLADE,2A,GRAY | 26006B | 26006-0052 | 2 | _________________________________________CA | |
| FUSE,MINI BLADE,10A,RED | 26006C | 26006-1078 | 7 | _________________________________________CA | |
| FUSE,MINI BLADE,30A,GREEN | 26006D | 26006-1080 | 1 | _________________________________________CA | |
| WIRE-LEAD,CONNECTOR COVER | 26011 | 26011-0275 | 1 | _________________________________________CA | |
| WIRE-LEAD,BATTERY(-) | 26011A | 26011-0908 | 1 | _________________________________________CA | |
| WIRE-LEAD,DIAG CONNECTOR | 26011B | 26011-1901 | 1 | _________________________________________CA | |
| WIRE-LEAD,BATTERY(+) | 26011C | 26011-1906 | 1 | _________________________________________CA | |
| BATTERY,YTZ10S,12V 8.6AH | 26012 | 26012-0564 | 1 | _________________________________________CA | |
| HARNESS,MAIN | 26031 | 26031-2991 | 1 | _________________________________________CA | |
| RELAY-ASSY | 27002 | 27002-0050 | 1 | _________________________________________CA | |
| RELAY-ASSY | 27002A | 27002-1086 | 2 | _________________________________________CA | |
| RELAY-ASSY,SIGNAL LAMP | 27002B | 27002-1097 | 1 | _________________________________________CA | |
| HORN | 27003 | 27003-0156 | 1 | _________________________________________CA | |
| PAD,DIAG. CONNECTOR | 39156 | 39156-1886 | 2 | _________________________________________CA | |
| PAD,7X70X7 | 39156A | 39156-2269 | 2 | _________________________________________CA | |
| PAD,35X25X0.2 | 39156B | 39156-2449 | 1 | _________________________________________CA | |
| PAD,30X15X1 | 39156C | 39156-2495 | 2 | _________________________________________CA | |
| PAD,25X25X2 | 39156D | 39156-2573 | 1 | _________________________________________CA | |
| PAD,22X13X0.2 | 39156E | 39156-2591 | 1 | _________________________________________CA | |
| BOOT | 49006 | 49006-0573 | 1 | _________________________________________CA | |
| TRIM,L=40 | 53044 | 53044-0012 | 1 | _________________________________________CA | |
| TRIM,9X6.5X20 | 53044A | 53044-0596 | 1 | _________________________________________CA | |
| TRIM,9X6.5X30 | 53044B | 53044-0632 | 3 | _________________________________________CA | |
| TRIM,L=16 | 53044C | 53044-0657 | 2 | _________________________________________CA | |
| TRIM,L=50 | 53044D | 53044-0699 | 1 | _________________________________________CA | |
| LABEL,FUSE BOX3 | 56030 | 56030-0400 | 1 | _________________________________________CA | |
| LABEL,FUSE BOX1 | 56030A | 56030-1376 | 1 | _________________________________________CA | |
| LABEL,FUSE BOX2 | 56030B | 56030-1570 | 1 | _________________________________________CA | |
| SCREW,TAPPING,5X16 | 92009 | 92009-1984 | 1 | _________________________________________CA | |
| CLAMP,SPEED,L=80.5 | 92037 | 92037-1903 | 1 | _________________________________________CA | |
| BAND | 92072 | 92072-0066 | 2 | _________________________________________CA | |
| BAND,OS170-FT7(BLACK) | 92072A | 92072-1414 | AR | _________________________________________CA A | |
| BOLT,FLANGED,6X16 | 92154 | 92154-0551 | 3 | _________________________________________CA | |
| BOLT,SOCKET,6X14 | 92154A | 92154-0907 | 2 | _________________________________________CA | |
| BOLT,SOCKET,6X12 | 92154B | 92154-4100 | 1 | _________________________________________CA | |
| DAMPER,RELAY BOX | 92161 | 92161-0203 | 1 | _________________________________________CA | |
| DAMPER | 92161A | 92161-0570 | 1 | _________________________________________CA | |
| DAMPER,30X20X2 | 92161B | 92161-0833 | 1 | _________________________________________CA | |
| CLAMP | 92171 | 92171-0766 | 1 | _________________________________________CA | |
| CLAMP | 92171A | 92171-0813 | 1 | _________________________________________CA | |
| CLAMP | 92171B | 92171-0926 | 1 | _________________________________________CA | |
| SCREW,TAPPING,5X10 | 92172 | 92172-0262 | 2 | _________________________________________CA | |
| SCREW,CROS,4X10 | 92172A | 92172-1248 | 2 | _________________________________________CA | |
| CLAMP,12MM DIA. | 92173 | 92173-0736 | 2 | _________________________________________CA | |
| CLAMP | 92173A | 92173-2194 | 1 | _________________________________________CA | |
| CLAMP | 92173B | 92173-2198 | 1 | _________________________________________CA | |
| CLAMP | 92173C | 92173-2199 | 2 | _________________________________________CA | |
| CLAMP | 92173D | 92173-2303 | 1 | _________________________________________CA | |
| CLAMP | 92173E | 92173-2308 | 1 | _________________________________________CA | |
| CLAMP | 92173F | 92173-2345 | 1 | _________________________________________CA | |
| NUT,POP,6MM,L=15 | 92210 | 92210-1397 | 2 | _________________________________________CA | |
| BOLT-FLANGED-SMALL,6X12 | 132 | 132BA0612 | 1 | _________________________________________CA | |
| BOLT-FLANGED-SMALL,6X16 | 132A | 132BA0616 | 2 | _________________________________________CA |
| BRACKET,HARNESS CONNECTOR | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| BRACKET,FR SIGNAL CONNECTOR | |
| REF # | 11057A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| SENSOR,AIR TEMPERATURE | |
| REF # | 21176 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| BRACKET-COMP | |
| REF # | 23062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| BRACKET-COMP,HORN | |
| REF # | 23062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| BRACKET-COMP,CANISTER | |
| REF # | 23062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| BRACKET-COMP | |
| REF # | 23062C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| FUSE,MINI BLADE,15A,BLUE | |
| REF # | 26006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| FUSE,MINI BLADE,25A,NATURAL | |
| REF # | 26006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| FUSE,MINI BLADE,2A,GRAY | |
| REF # | 26006B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| FUSE,MINI BLADE,10A,RED | |
| REF # | 26006C |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| FUSE,MINI BLADE,30A,GREEN | |
| REF # | 26006D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| WIRE-LEAD,CONNECTOR COVER | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| WIRE-LEAD,BATTERY(-) | |
| REF # | 26011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| WIRE-LEAD,DIAG CONNECTOR | |
| REF # | 26011B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| WIRE-LEAD,BATTERY(+) | |
| REF # | 26011C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| BATTERY,YTZ10S,12V 8.6AH | |
| REF # | 26012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| HARNESS,MAIN | |
| REF # | 26031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| RELAY-ASSY | |
| REF # | 27002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| RELAY-ASSY | |
| REF # | 27002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| RELAY-ASSY,SIGNAL LAMP | |
| REF # | 27002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| HORN | |
| REF # | 27003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| PAD,DIAG. CONNECTOR | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| PAD,7X70X7 | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| PAD,35X25X0.2 | |
| REF # | 39156B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| PAD,30X15X1 | |
| REF # | 39156C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| PAD,25X25X2 | |
| REF # | 39156D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| PAD,22X13X0.2 | |
| REF # | 39156E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| BOOT | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| TRIM,L=40 | |
| REF # | 53044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| TRIM,9X6.5X20 | |
| REF # | 53044A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| TRIM,9X6.5X30 | |
| REF # | 53044B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| TRIM,L=16 | |
| REF # | 53044C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| TRIM,L=50 | |
| REF # | 53044D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| LABEL,FUSE BOX3 | |
| REF # | 56030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| LABEL,FUSE BOX1 | |
| REF # | 56030A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| LABEL,FUSE BOX2 | |
| REF # | 56030B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| SCREW,TAPPING,5X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| CLAMP,SPEED,L=80.5 | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| BAND | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| BAND,OS170-FT7(BLACK) | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | _________________________________________CA A |
| BOLT,FLANGED,6X16 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| BOLT,SOCKET,6X14 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| BOLT,SOCKET,6X12 | |
| REF # | 92154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| DAMPER,RELAY BOX | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| DAMPER,30X20X2 | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| CLAMP | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| CLAMP | |
| REF # | 92171B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| SCREW,TAPPING,5X10 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| SCREW,CROS,4X10 | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| CLAMP,12MM DIA. | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| CLAMP | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| CLAMP | |
| REF # | 92173B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| CLAMP | |
| REF # | 92173C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| CLAMP | |
| REF # | 92173D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| CLAMP | |
| REF # | 92173E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| CLAMP | |
| REF # | 92173F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| NUT,POP,6MM,L=15 | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| BOLT-FLANGED-SMALL,6X12 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| BOLT-FLANGED-SMALL,6X16 | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
