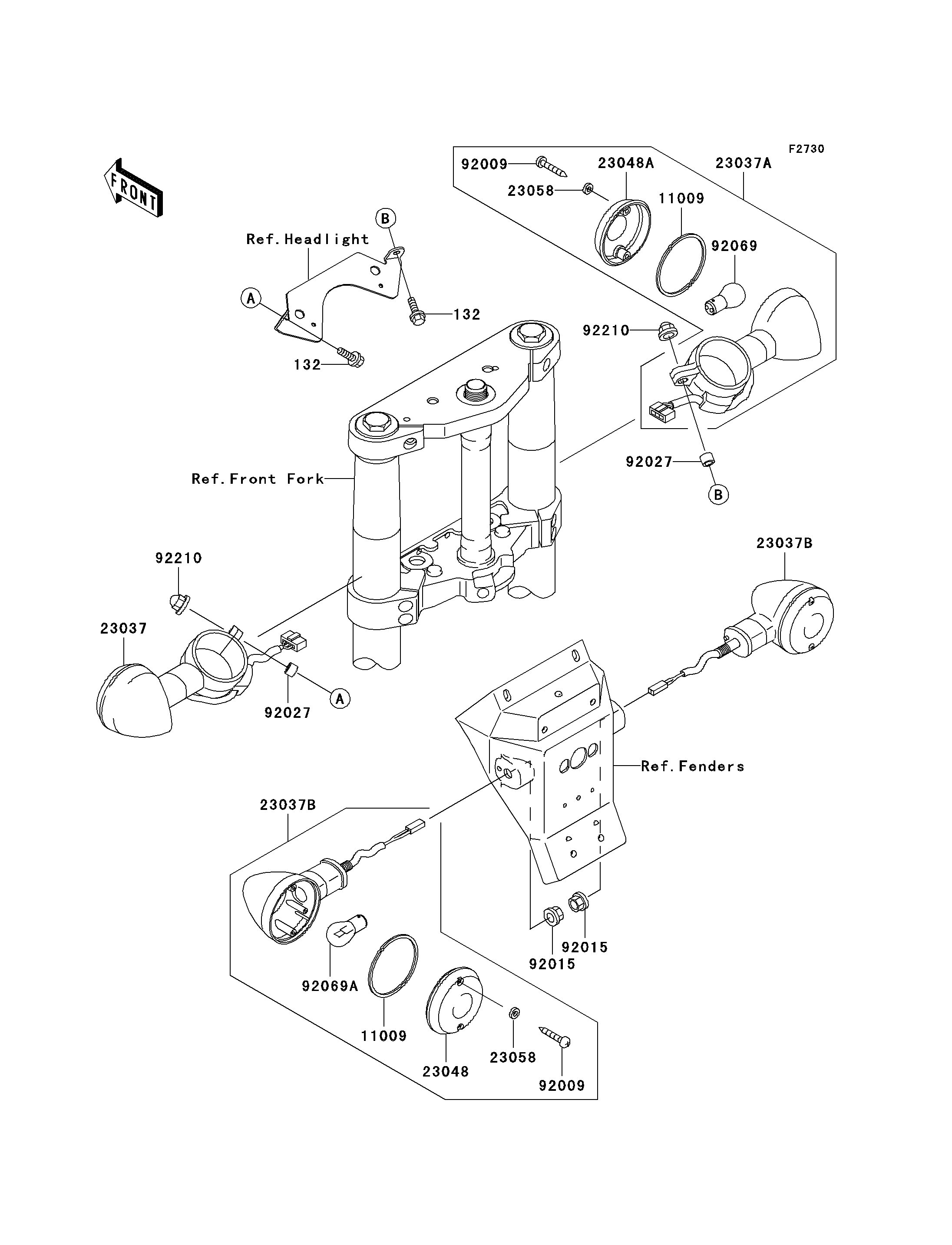

2006 Vulcan 1600 Mean Streak - Turn Signals
132
132
11009
11009
23037
23037A
23037B
23037B
23048
23048A
23058
23058
92009
92009
92015
92015
92027
92027
92069
92069A
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X20 | 132 | 132E0620 | 2 | ||
| GASKET,SIGNAL LAMP | 11009 | 11009-1413 | 4 | ||
| LAMP-ASSY-SIGNAL,FR,LH | 23037 | 23037-1405 | 1 | ||
| LAMP-ASSY-SIGNAL,FR,RH | 23037A | 23037-1406 | 1 | ||
| LAMP-ASSY-SIGNAL,RR | 23037B | 23037-1412 | 2 | ||
| LENS-SIGNAL LAMP | 23048 | 23048-1065 | 2 | ||
| LENS-SIGNAL LAMP | 23048A | 23048-1066 | 2 | ||
| WASHER,PLAIN,4MM | 23058 | 23058-002 | 8 | ||
| SCREW,TAPPING,4X25 | 92009 | 92009-1637 | 8 | ||
| NUT,10MM | 92015 | 92015-1356 | 2 | ||
| COLLAR,6.8X10X12 | 92027 | 92027-162 | 2 | ||
| BULB,12V 21/5W | 92069 | 92069-063 | 2 | ||
| BULB,12V 21W | 92069A | 2 | (LOCAL PROCUREMENT ITEM) | ||
| NUT,CAP,6MM | 92210 | 92210-0141 | 2 |
