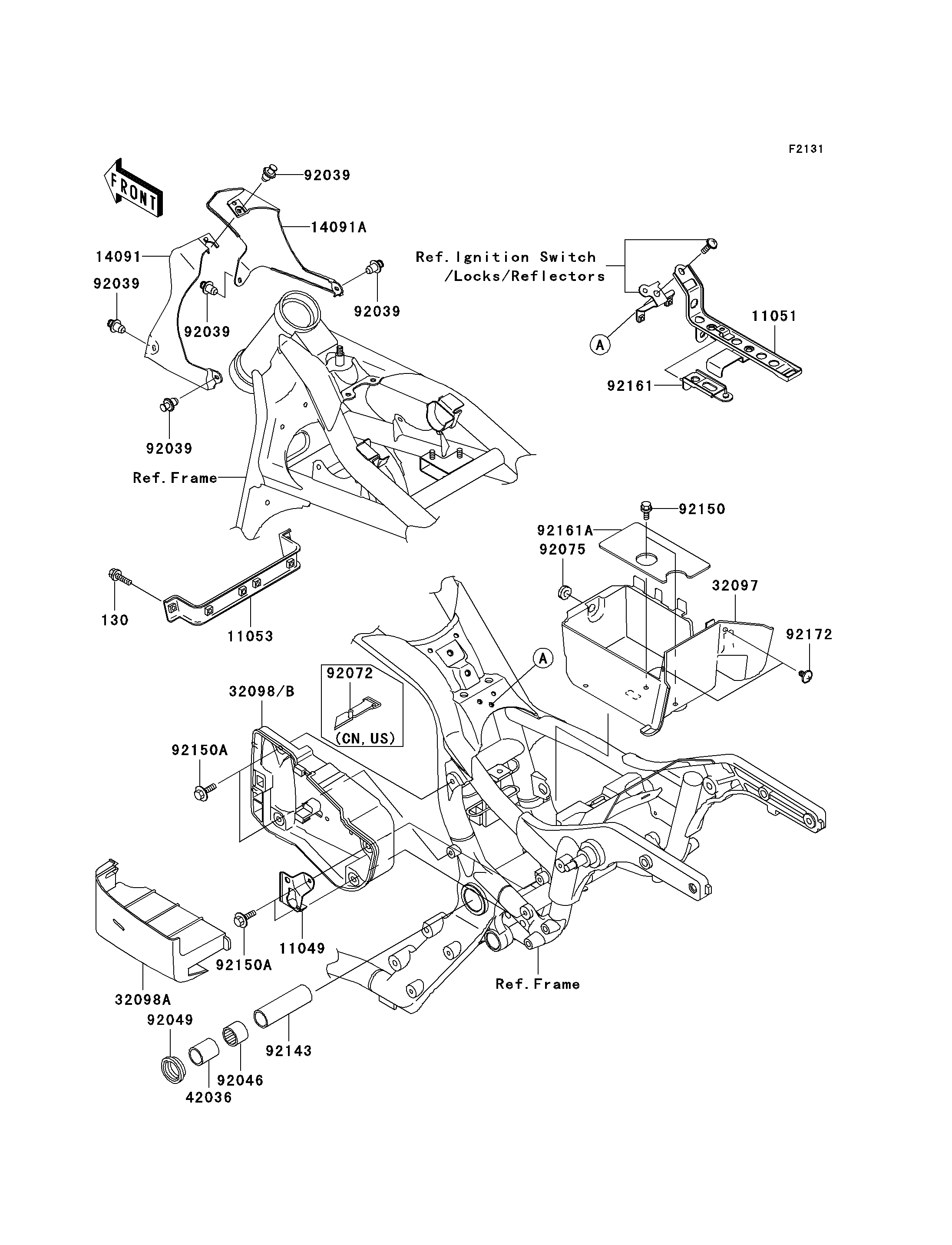

2004 Vulcan 1500 Nomad Fi - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
11049
11051
11053
14091
14091A
32097
32098A
42036
92039
92039
92039
92039
92039
92046
92049
92075
92143
92150
92150A
92150A
92161
92161A
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16,BLACK 130 130J0616 2
BRACKET,LOCK 11049 11049-1600 1
BRACKET,BATTERY BAND 11051 11051-1798 1
BRACKET,REGULATOR 11053 11053-0434 1
COVER,HEAD PIPE,LH 14091 14091-1285 1
COVER,HEAD PIPE,RH 14091A 14091-1286 1
CASE-BATTERY 32097 32097-1175 1
CASE-TOOL,COVER 32098A 32098-1126 1
SLEEVE,L=45 42036 42036-1330 2
RIVET 92039 92039-1227 5
BEARING-NEEDLE,BM2824 92046 92046-1202 2
SEAL-OIL 92049 92049-1181 2
DAMPER 92075 92075-1067 1
COLLAR,20.2X27X90 92143 92143-1878 1
BOLT,6X14 92150 92150-1133 2
BOLT,6X16 92150A 92150-1198 4
DAMPER,BATTERY BAND 92161 92161-1096 1
DAMPER,BATTERY 92161A 92161-1097 1
SCREW,6X10 92172 92172-0005 2
CASE-TOOL 32098 32098-1125 1 CNUS
CASE-TOOL 32098B 32098-1127 1 CA
BAND,L=470 92072 92072-1331 1 CNUS
