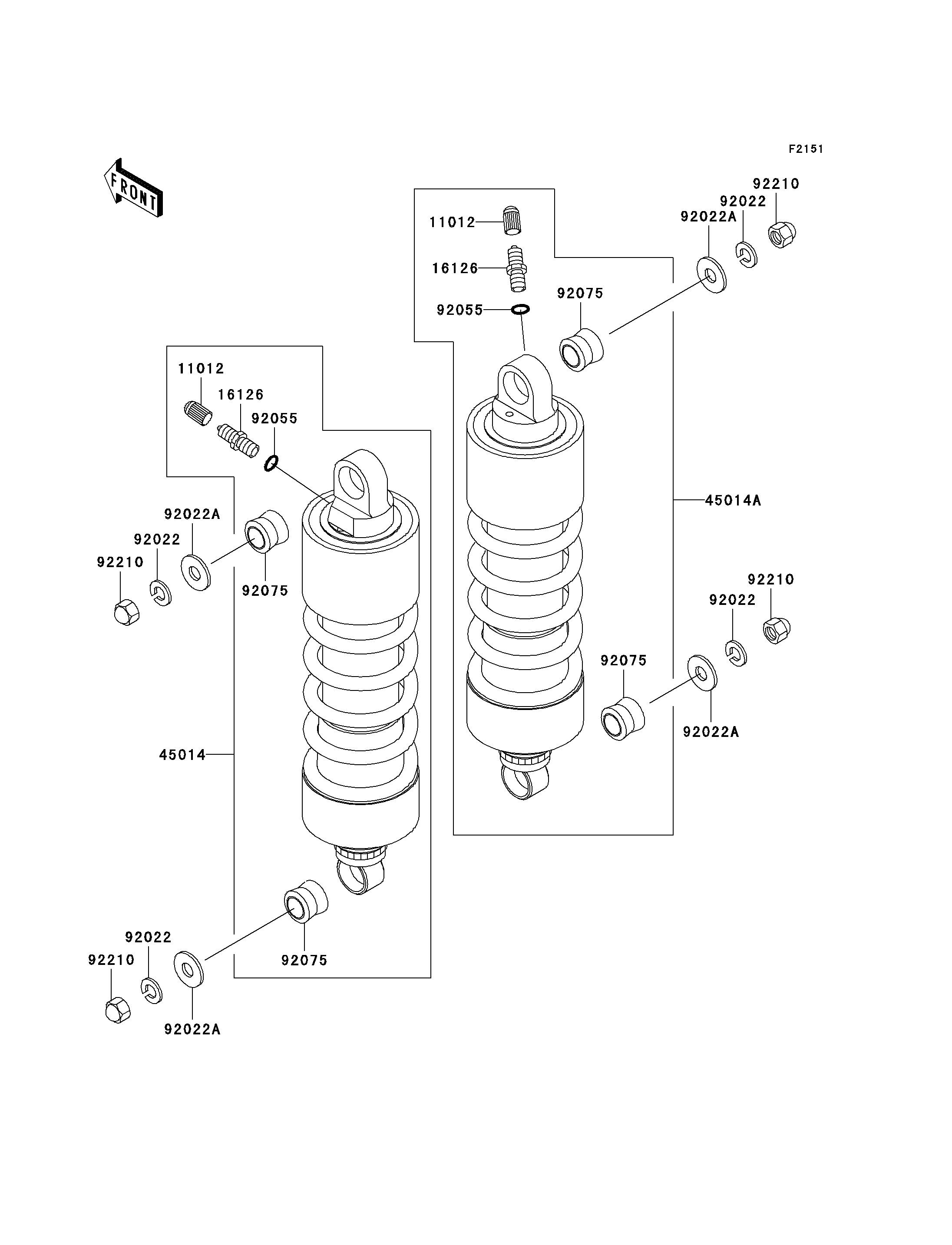

2004 Vulcan 1500 Nomad Fi - Suspension/Shock Absorber
11012
11012
16126
16126
45014
45014A
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92055
92055
92075
92075
92075
92075
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1283 | 2 | ||
| VALVE,AIR | 16126 | 16126-1105 | 2 | ||
| SHOCKABSORBER,LH | 45014 | 45014-1795 | 1 | ||
| SHOCKABSORBER,RH | 45014A | 45014-1796 | 1 | ||
| WASHER,SPRING,10MM | 92022 | 92022-1540 | 4 | ||
| WASHER,10.5X26X2.3 | 92022A | 92022-246 | 4 | ||
| RING-O | 92055 | 92055-1130 | 2 | ||
| DAMPER,SHOCKABSORBER | 92075 | 92075-1387 | 4 | ||
| NUT,CAP,10MM | 92210 | 92210-1128 | 4 |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| VALVE,AIR | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHOCKABSORBER,LH | |
| REF # | 45014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOCKABSORBER,RH | |
| REF # | 45014A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,SPRING,10MM | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X26X2.3 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,SHOCKABSORBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
