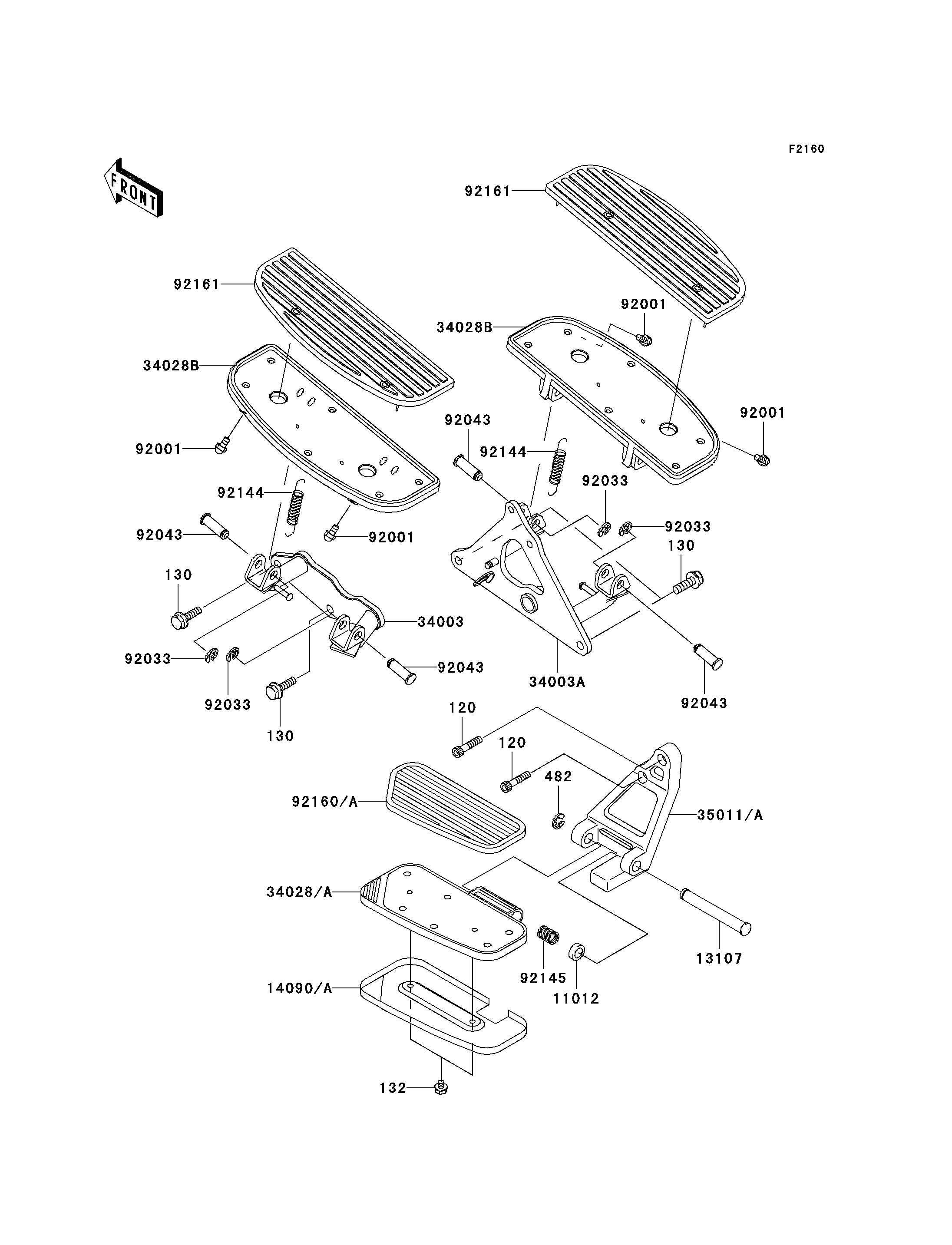

2004 Vulcan 1500 Nomad Fi - Footrests

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
130
130
132
482
11012
13107
14090
14090A
34003
34003A
34028
34028A
34028B
34028B
35011
35011A
92001
92001
92001
92001
92033
92033
92033
92033
92043
92043
92043
92043
92144
92144
92145
92160
92160A
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X35,BLACK 120 120S0835 4
BOLT-FLANGED,10X30 130 130J1030 4
BOLT-FLANGED-SMALL,6X8 132 132E0608 4
CIRCLIP-TYPE-E 482 482L0200 2
CAP,MUFFLER STAY 11012 11012-1498 2
SHAFT,REAR STEP 13107 13107-1174 2
COVER,REAR STEP,LH 14090 14090-1907 1
COVER,REAR STEP,RH 14090A 14090-1908 1
HOLDER-STEP,FR,LH 34003 34003-1501 1
HOLDER-STEP,FR,RH 34003A 34003-1502 1
STEP,RR,LH 34028 34028-1459 1
STEP,RR,RH 34028A 34028-1460 1
STEP,FR 34028B 34028-1497 2
STAY,REAR STEP,LH 35011 35011-1897 1
STAY,REAR STEP,RH 35011A 35011-1898 1
BOLT,BANK SENSOR 92001 92001-1905 4
RING-SNAP,10MM 92033 92033-1166 4
PIN,12X37 92043 92043-1358 4
SPRING,BRAKE PEDAL RETURN 92144 92144-1266 2
SPRING,REAR STEP 92145 92145-1130 2
DAMPER,REAR STEP,LH 92160 92160-1904 1
DAMPER,REAR STEP,RH 92160A 92160-1905 1
DAMPER,FRONT STEP 92161 92161-1154 2
