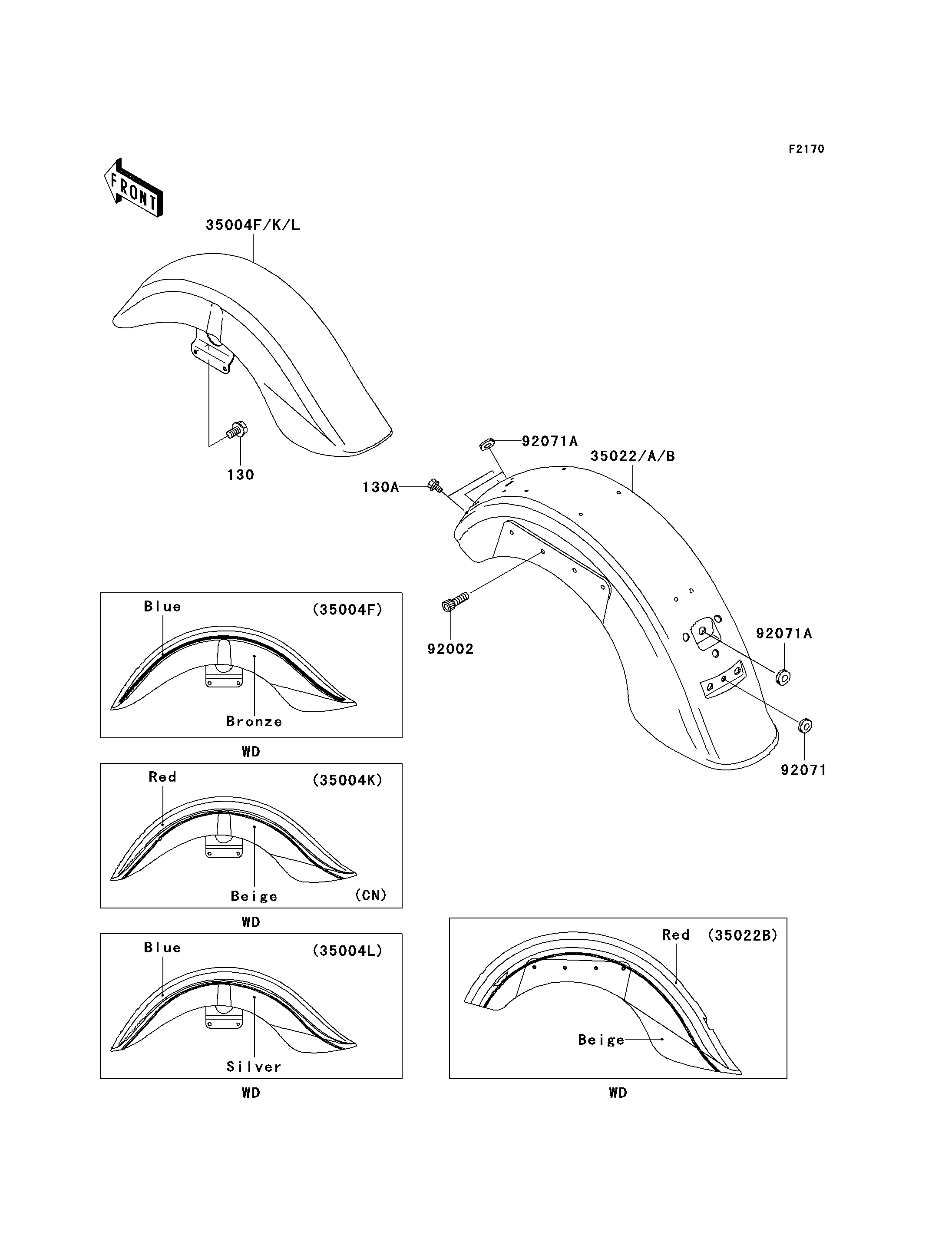

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-FRONT,M.D.BRONZE | 35004F | 35004-5156-1Z | 1 | ||
| FENDER-FRONT,BLUE/SILVER | 35004L | 35004-5237-673 | 1 | ||
| FENDER-COMP-REAR,M.N.BLUE | 35022 | 35022-1315-C6 | 1 | ||
| FENDER-COMP-REAR,M.D.BRONZE | 35022A | 35022-1315-1Z | 1 | ||
| BOLT-FLANGED,8X14 | 130 | 130J0814 | 4 | ||
| BOLT-FLANGED,8X16,BLACK | 130A | 130J0816 | 2 | ||
| BOLT,SOCKET,8X25 | 92002 | 92002-1442 | 2 | ||
| GROMMET,10MM | 92071 | 92071-019 | 1 | ||
| GROMMET,13MM | 92071A | 92071-099 | 3 | ||
| FENDER-FRONT,RED/BEIGE | 35004K | 35004-5229-SI | 1 | CN | |
| FENDER-COMP-REAR,RED/BEIGE | 35022B | 35022-5125-SI | 1 | CN |
