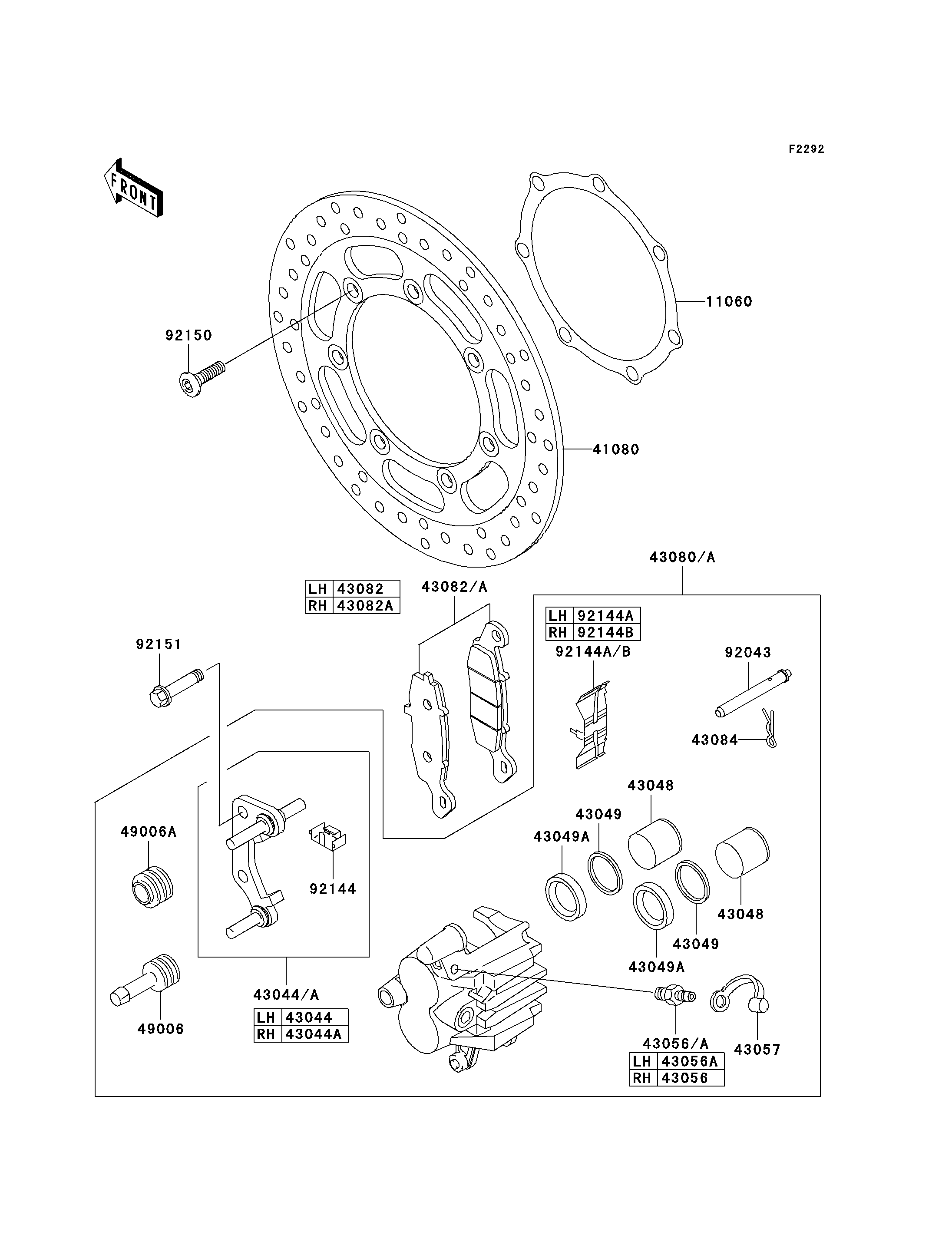

2004 Vulcan 1500 Nomad Fi - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
11060
41080
43044
43044A
43048
43048
43049
43049
43049A
43049A
43056
43056A
43057
43080
43080A
43082
43082A
43084
49006
49006A
92043
92144
92144A
92144B
92150
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DISC 11060 11060-1865 2
DISC,FR,SILVER 41080 41080-1447-CM 2
HOLDER-COMP-CALIPER,FR,LH 43044 43044-1117 1
HOLDER-COMP-CALIPER 43044A 43044-1129 1
PISTON-CALIPER 43048 43048-1052 4
PACKING,PISTON 43049 43049-1055 4
PACKING,PISTON SEAL 43049A 43049-1096 4
BREATHER 43056 43056-003 1
BREATHER-BRAKE 43056A 43056-1054 1
CAP-BREATHER 43057 43057-003 2
CALIPER-SUB-ASSY,FR,LH,SILVER 43080 43080-5008-GN 1
CALIPER-SUB-ASSY,FR,RH,SILVER 43080A 43080-5009-GN 1
PAD-ASSY-BRAKE 43082 43082-1245 1
PAD-ASSY-BRAKE 43082A 43082-1246 1
CLAMP,PAD 43084 43084-003 2
BOOT,CALIPER 49006 49006-1054 2
BOOT,CALIPER 49006A 49006-1095 2
PIN,PAD 92043 92043-1489 2
SPRING,STOPPER 92144 92144-1831 2
SPRING,PAD,LH 92144A 92144-1832 1
SPRING,PAD,RH 92144B 92144-1844 1
BOLT,SOCKET,8X30 92150 92150-1771 14
BOLT,FLANGED,10X47 92151 92151-1321 4
