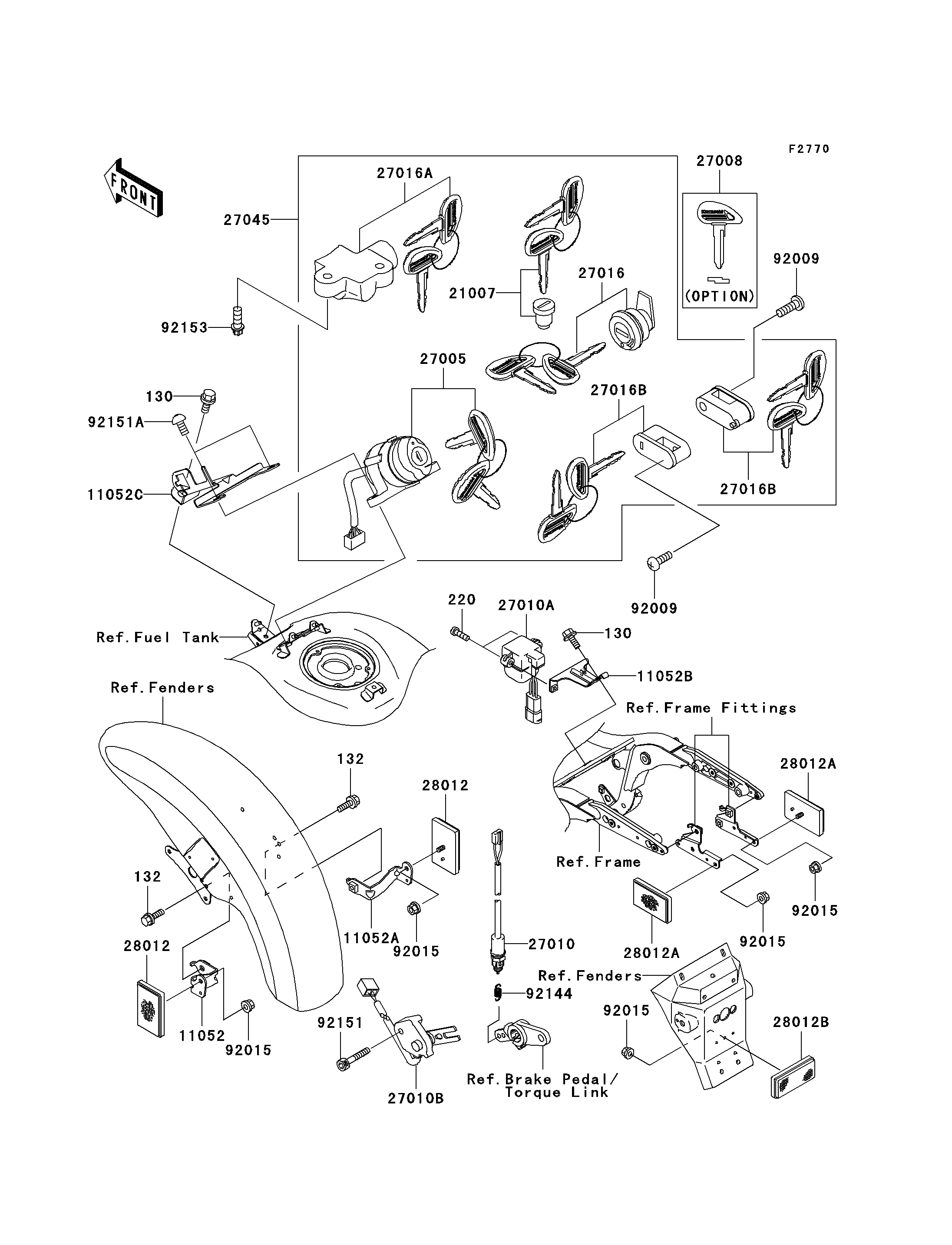

2006 Vulcan 1600 Mean Streak - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
132
220
11052
11052A
11052B
11052C
21007
27005
27008
27010
27010A
27010B
27016
27016A
27016B
27016B
27045
28012
28012
28012A
28012A
28012B
92009
92009
92015
92015
92015
92015
92015
92144
92151
92151A
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BB0610 2
BOLT-FLANGED-SMALL,6X12 132 132BD0612 2
SCREW-PAN-CROS,4X20 220 220AB0420 2
BRACKET,REFLECTOR,FR,LH 11052 11052-1284 1
BRACKET,REFLECTOR,FR,RH 11052A 11052-1285 1
BRACKET,DOWN SENSOR 11052B 11052-1302 1
BRACKET,IGNITION SWITCH 11052C 11052-1494 1
ROTOR,LOCK,TANK CAP 21007 21007-5049 1
SWITCH-ASSY-IGNITION 27005 27005-0001 1
KEY-LOCK,BLANK 27008 27008-1211 1 (OPTION)
SWITCH,REAR BRAKE 27010 27010-1412 1
SWITCH,DOWN SENSOR 27010A 27010-1416 1
SWITCH,SIDE STAND 27010B 27010-1470 1
LOCK-ASSY,LID 27016 27016-5279 1
LOCK-ASSY,STEERING 27016A 27016-5298 1
LOCK-ASSY,HELMET 27016B 27016-5317 2
SWITCH-ASSY 27045 27045-5248 1
REFLECTOR-REFLEX,FR 28012 28012-1009 2
REFLECTOR-REFLEX,RR 28012A 28012-1051 2
REFLECTOR-REFLEX 28012B 28012-1077 1
SCREW,5X12 92009 92009-1296 2
NUT,FLANGED,5MM 92015 92015-1656 5
SPRING,REAR BRAKE SWITCH 92144 92144-1141 1
BOLT,SOCKET,6X35 92151 92151-1390 1
BOLT,SOCKET,6X16 92151A 92151-1751 2
BOLT,TORX,8X22 92153 92153-1273 2
