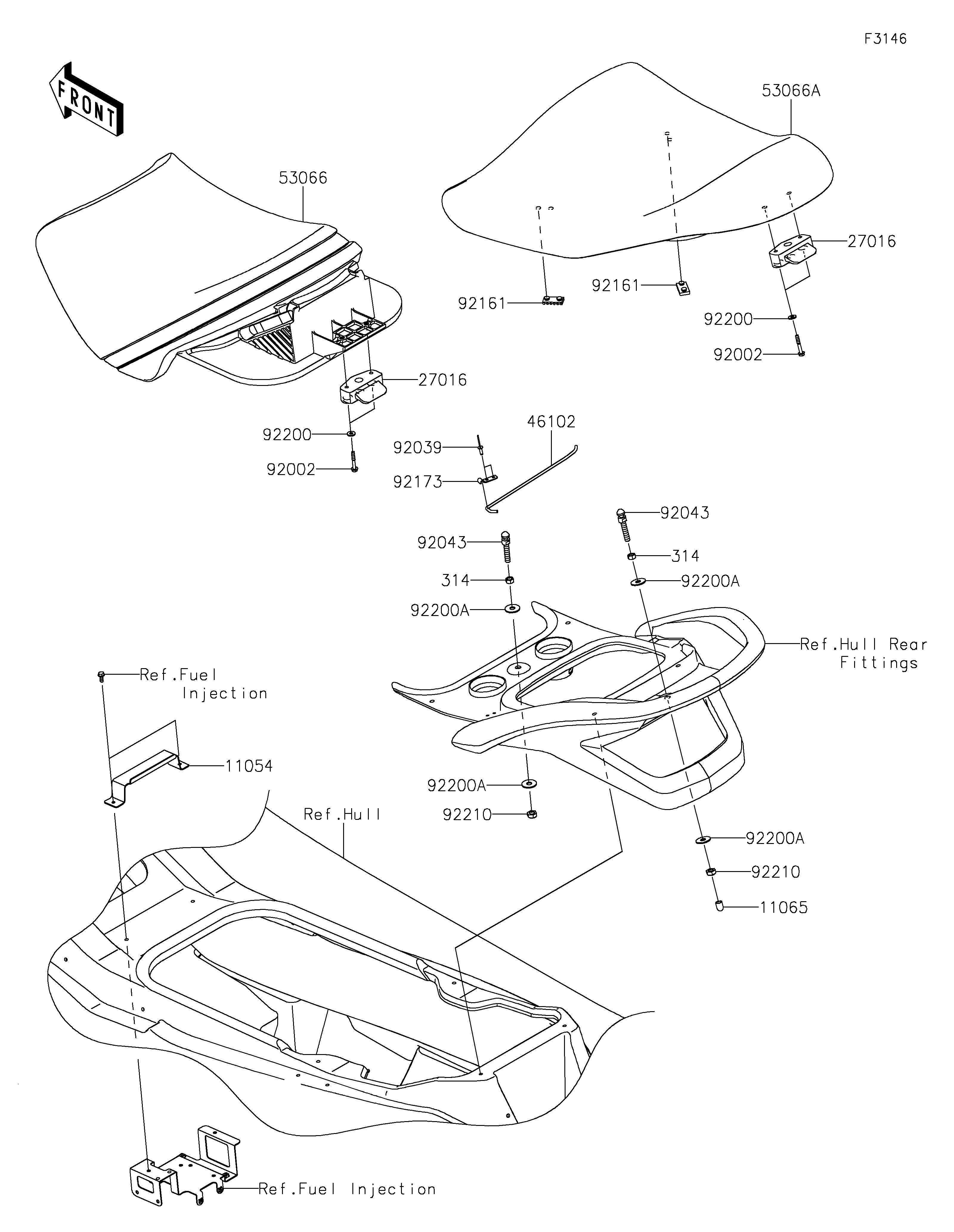

Parts Diagrams |
11054
11065
27016
27016
46102
53066
53066A
92002
92002
92039
92043
92043
92161
92161
92173
92200
92200
92200A
92200A
92200A
92200A
92210
92210
314
314
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,FRONT SEAT | 11054 | 11054-3702 | 1 | ||
| CAP | 11065 | 11065-1347 | 1 | ||
| LOCK-ASSY,SEAT,FR&RR | 27016 | 27016-3758 | 2 | ||
| ROD | 46102 | 46102-0639 | 1 | ||
| SEAT-ASSY,FR,BLACK+BLK | 53066 | 53066-0682-12Y | 1 | ||
| SEAT-ASSY,RR,N.L.GREEN | 53066A | 53066-0708-337 | 1 | ||
| BOLT,6X40 | 92002 | 92002-3716 | 4 | ||
| RIVET | 92039 | 92039-3714 | 2 | ||
| PIN | 92043 | 92043-3763 | 2 | ||
| DAMPER,SEAT | 92161 | 92161-1489 | 2 | ||
| CLAMP | 92173 | 92173-2098 | 1 | ||
| WASHER,6.5X16X2.0 | 92200 | 92200-1543 | 4 | ||
| WASHER | 92200A | 92200-3762 | 4 | ||
| NUT,LOCK,10MM | 92210 | 92210-3792 | 2 | ||
| NUT-HEX-FINE,10MM | 314 | 314R1000 | 2 |
| BRACKET,FRONT SEAT | |
| REF # | 11054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOCK-ASSY,SEAT,FR&RR | |
| REF # | 27016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ROD | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY,FR,BLACK+BLK | |
| REF # | 53066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY,RR,N.L.GREEN | |
| REF # | 53066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X40 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,SEAT | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X2.0 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX-FINE,10MM | |
| REF # | 314 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
