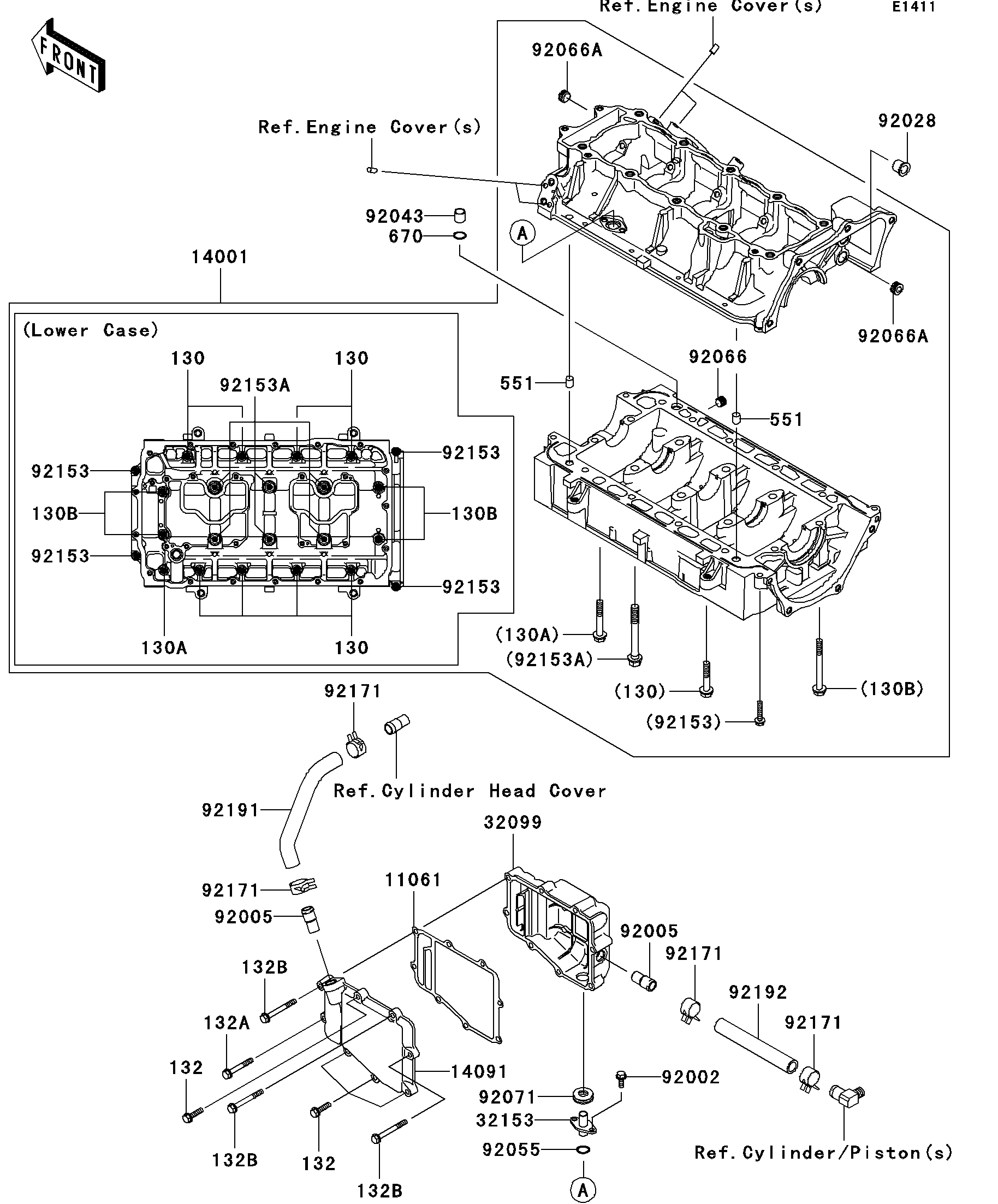

2007 STX-15F - Crankcase(A6F-A8F)

DOWNLOAD PDF
SELECT A NEW PART
11061
14001
14091
32099
32153
92002
92005
92005
92028
92043
92055
92066
92066A
92066A
92071
92153
92153
92153
92153
92153A
92171
92171
92171
92171
92191
92192
130
130
130
130A
130B
130B
132
132
132A
132B
132B
132B
551
551
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,BREATHER CASE 11061 11061-3715 1
SET-CRANKCASE 14001 14001-3743 1
COVER,BREATHER 14091 14091-3761 1
CASE,BREATHER 32099 32099-3848 1
PIPE,BREATHER 32153 32153-3732 1
BOLT,6X16 92002 92002-3728 2
FITTING 92005 92005-3741 2
BUSHING 92028 92028-3718 1
PIN,11.5X14X14 92043 92043-1279 1
RING-O,12X3 92055 92055-3768 1
PLUG 92066 92066-3778 1
PLUG 92066A 92066-3782 2
GROMMET 92071 92071-3839 1
BOLT,6X30 92153 92153-3707 4
BOLT,10X85 92153A 92153-3711 6
CLAMP,TUBE 92171 92171-3710 4
TUBE,HEAD COVER-BREATHER 92191 92191-3964 1
TUBE,14X20X140 92192 92192-3723 1
BOLT-FLANGED,8X45 130 130CD0845 8
BOLT-FLANGED,8X55 130A 130CD0855 1
BOLT-FLANGED,8X85 130B 130CD0885 4
BOLT-FLANGED-SMALL,6X25 132 132BD0625 4
BOLT-FLANGED-SMALL,6X45 132A 132BD0645 1
BOLT-FLANGED-SMALL,6X55 132B 132BD0655 3
PIN-DOWEL 551 551R1012 2
O RING,14MM 670 670D2014 1
