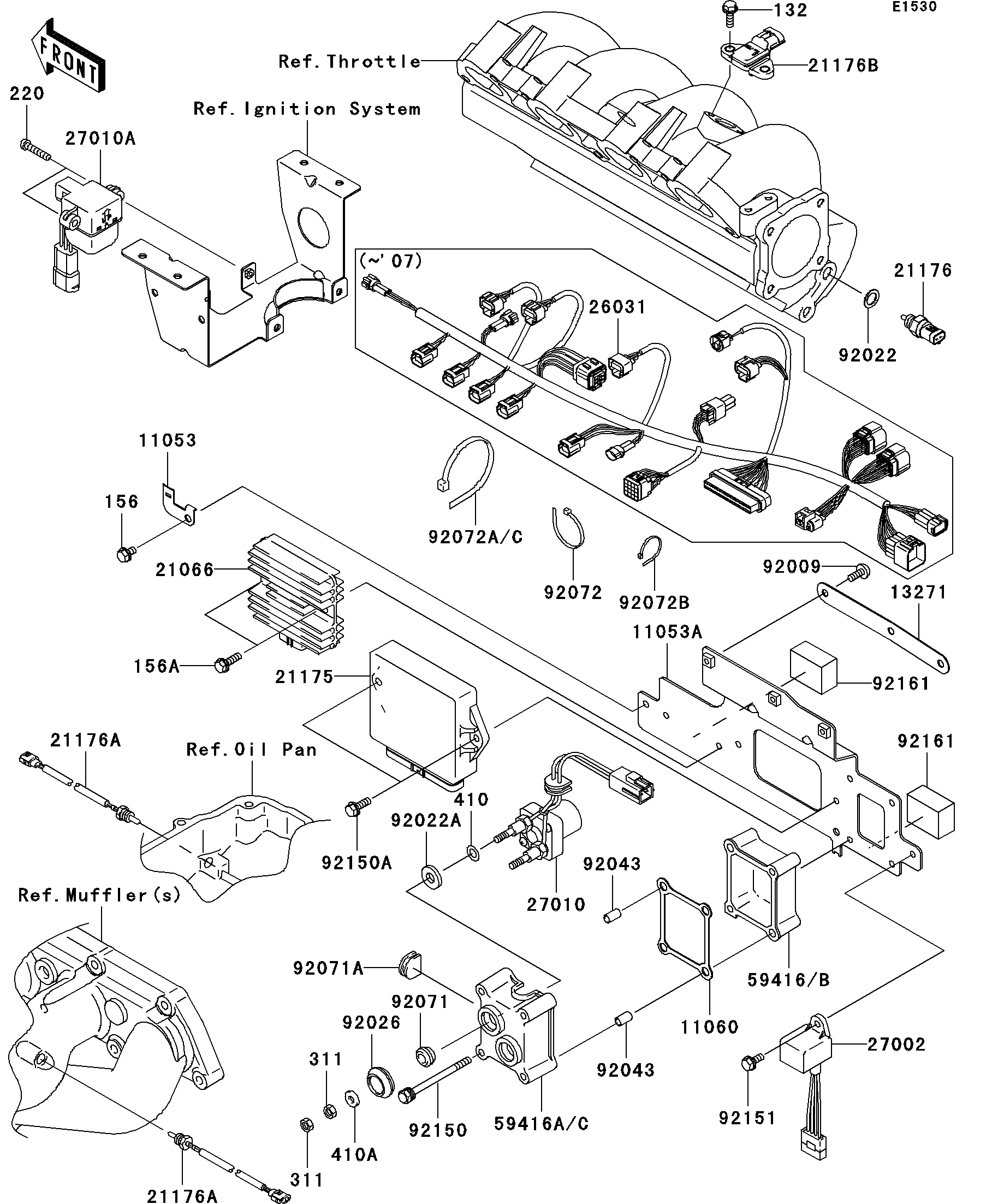

2007 STX-15F - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11053A
11053A
11060
11060
13271
13271
21066
21066
21175
21175
21176
21176
21176A
21176A
21176A
21176A
21176B
21176B
26031
26031
27002
27002
27010
27010
27010A
27010A
59416
59416
59416A
59416A
92009
92009
92022
92022
92022A
92022A
92026
92026
92043
92043
92043
92043
92071
92071
92071A
92071A
92072
92072
92072A
92072A
92072B
92072B
92150
92150
92150A
92150A
92151
92151
92161
92161
92161
92161
132
132
156
156
156A
156A
220
220
311
311
311
311
410
410
410A
410A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUSE 11053 11053-3724 1
BRACKET,SWITCH 11053A 11053-3774 1
GASKET 11060 11060-3709 1
PLATE 13271 13271-3842 1
REGULATOR-VOLTAGE 21066 21066-3718 1
CONTROL UNIT-ELECTRONIC 21175 21175-3737 1
SENSOR,AIR TEMPERATURE 21176 21176-1086 1
SENSOR,TEMP 21176A 21176-3758 2
SENSOR,PRESSURE 21176B 21176-3765 1
HARNESS 26031 26031-3717 1
RELAY-ASSY 27002 27002-3703 1
SWITCH 27010 27010-3777 1
SWITCH,VDS 27010A 27010-3785 1
CASE-ELECTRIC 59416 59416-3710 1 ( - US-KAW51405 09 )
CASE-ELECTRIC 59416A 59416-3711 1 ( - US-KAW51405 09 )
SCREW,6X15 92009 92009-3830 3
WASHER,12X18X1.0 92022 92022-1211 1
WASHER 92022A 92022-3035 2
SPACER 92026 92026-3703 2
PIN 92043 92043-3715 2
GROMMET 92071 92071-3004 2
GROMMET 92071A 92071-3837 1
BAND,L=188.85 92072 92072-0105 1
BAND,L=365 92072A 92072-1197 1
BAND,L=152 92072B 92072-3874 1
BOLT,6X80 92150 92150-3711 4
BOLT,6X18 92150A 92150-3729 2
BOLT,6X14 92151 92151-3788 1
DAMPER 92161 92161-3752 2
BOLT-FLANGED-SMALL,6X18 132 132BD0618 2
BOLT-WP,6X10 156 156R0610 1
BOLT-WP,6X20 156A 156R0620 2
SCREW-PAN-CROSS,4X20 220 220R0420 2
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,10MM 410 410AA1000 2
WASHER-PLAIN-SMALL,6MM 410A 410S0600 2
