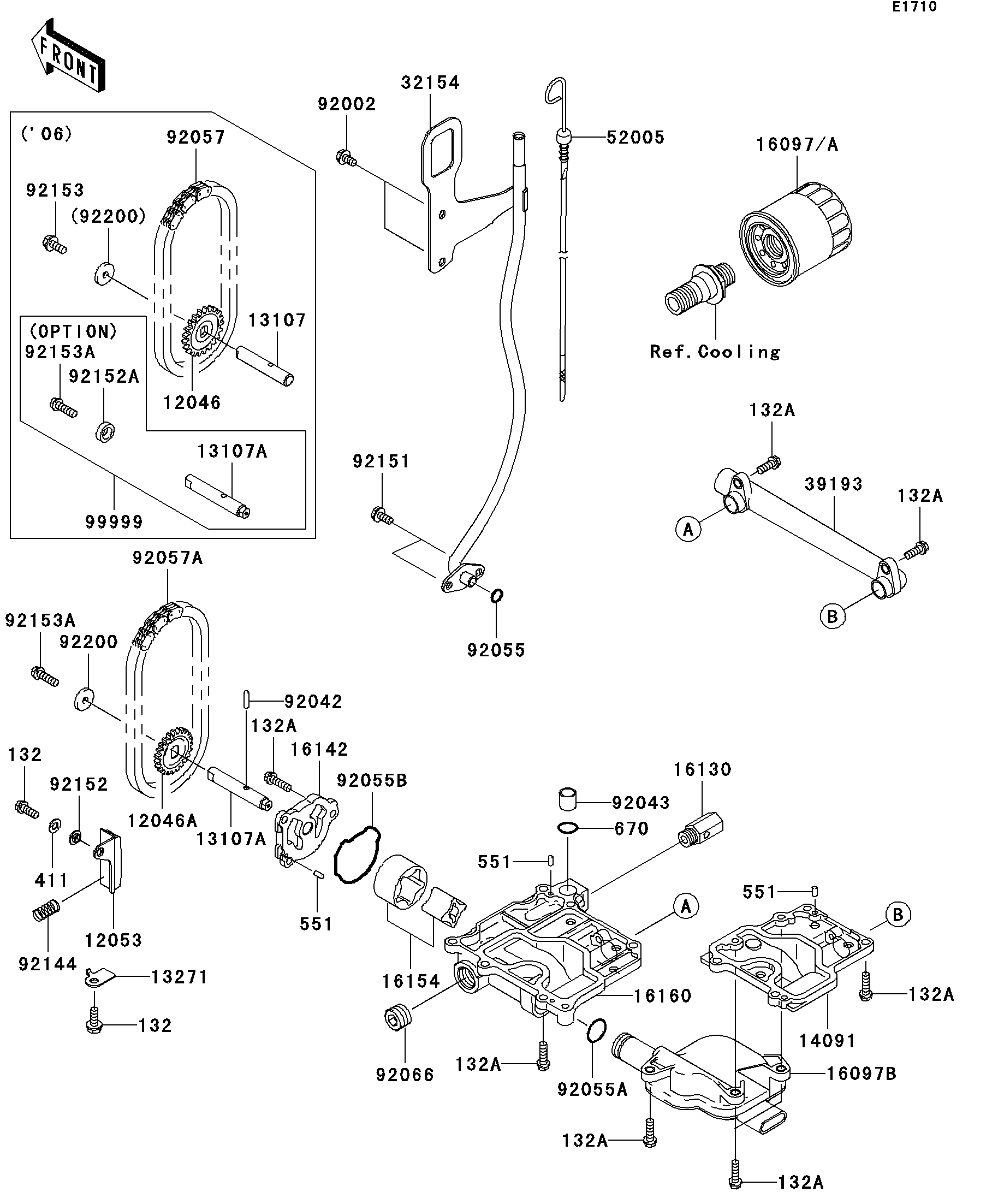

2007 STX-15F - Oil Pump

DOWNLOAD PDF
SELECT A NEW PART
12046A
12046A
12053
12053
13107A
13107A
13107A
13107A
13271
13271
14091
14091
16097
16097
16097A
16097A
16097B
16097B
16130
16130
16142
16142
16154
16154
16160
16160
32154
32154
39193
39193
52005
52005
92002
92002
92042
92042
92043
92043
92055
92055
92055A
92055A
92055B
92055B
92057A
92057A
92066
92066
92144
92144
92151
92151
92152
92152
92153A
92153A
92153A
92153A
92200
92200
132
132
132
132
132A
132A
132A
132A
132A
132A
132A
132A
132A
132A
132A
132A
132A
132A
411
411
551
551
551
551
551
551
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,23T 12046A 12046-3705 1
GUIDE-CHAIN 12053 12053-3704 1
SHAFT 13107A 13107-3801 1
PLATE 13271 13271-3850 1
COVER 14091 14091-3767 1
FILTER-ASSY-OIL 16097 16097-0003 1
FILTER-ASSY-OIL 16097A 16097-0004 1 (OPTION)
FILTER-ASSY-OIL 16097B 16097-3702 1
VALVE-ASSY-RELIEF 16130 16130-3701 1
COVER-PUMP 16142 16142-3703 1
ROTOR-PUMP 16154 16154-1124 1
BODY,OIL PUMP 16160 16160-3748 1
PIPE,OIL LEVEL 32154 32154-3707 1
PIPE-OIL 39193 39193-3702 1
GAUGE,OIL LEVEL 52005 52005-3710 1
BOLT,6X12 92002 92002-3763 2
PIN,DOWEL,4X15.8 92042 92042-014 1
PIN,11.5X14X14 92043 92043-1279 1
RING-O,10MM 92055 92055-1150 1
RING-O,19.8X1.9 92055A 92055-1332 1
RING-O 92055B 92055-3764 1
CHAIN,OIL PUMP,98XRH2010-52L 92057A 92057-3713 1
PLUG,PT1/2X12.5 92066 92066-0002 1
SPRING 92144 92144-1551 1
BOLT,6X14 92151 92151-3788 2
COLLAR,GUIDE 92152 92152-3737 1
BOLT,FLANGED-SMALL,6X20 92153A 92153-3734 1
WASHER,6X20X3.2 92200 92200-0120 1
BOLT-FLANGED-SMALL,6X16 132 132BD0616 2
BOLT-FLANGED-SMALL,6X20 132A 132BD0620 18
WASHER-PLAIN,6MM 411 411S0600 1
PIN-DOWEL 551 551R0408 5
O RING,14MM 670 670D2014 1
