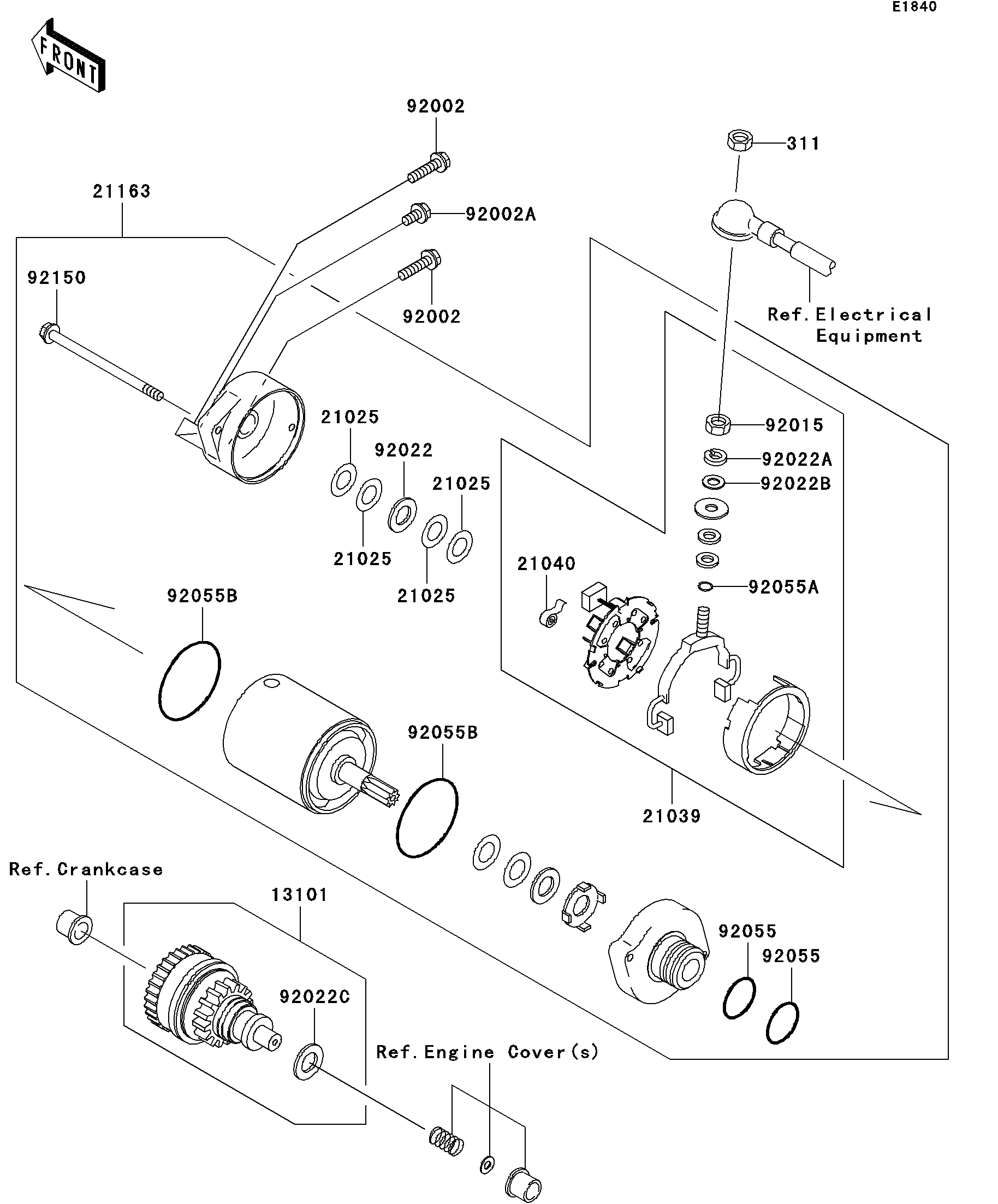

Parts Diagrams |
13101
21025
21025
21025
21025
21039
21040
21163
92002
92002
92002A
92015
92022
92022A
92022B
92022C
92055
92055
92055A
92055B
92055B
92150
311
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GEAR-ASSY | 13101 | 13101-3710 | 1 | ||
WASHER,9.1X18X0.2 | 21025 | 21025-011 | AR | ||
BRUSH,CARBON | 21039 | 21039-3703 | 1 | ||
SPRING-BRUSH | 21040 | 21040-1055 | 4 | ||
STARTER-ELECTRIC | 21163 | 21163-3721 | 1 | ||
BOLT,6X25 | 92002 | 92002-3714 | 2 | ||
BOLT,6X12 | 92002A | 92002-3763 | 1 | ||
NUT,6MM | 92015 | 92015-3710 | 1 | ||
WASHER,9.1X18X0.8 | 92022 | 92022-1132 | 1 | ||
WASHER,6MM | 92022A | 92022-3711 | 1 | ||
WASHER,6MM | 92022B | 92022-3713 | 1 | ||
WASHER,12X24X1.0 | 92022C | 92022-3731 | 1 | ||
RING-O | 92055 | 92055-1276 | 2 | ||
RING-O,4.5X2.0 | 92055A | 92055-1370 | 1 | ||
RING-O,STARTER MOTOR | 92055B | 92055-1381 | 2 | ||
BOLT | 92150 | 92150-3772 | 2 | ||
NUT-HEX,6MM | 311 | 311R0600 | 1 |
