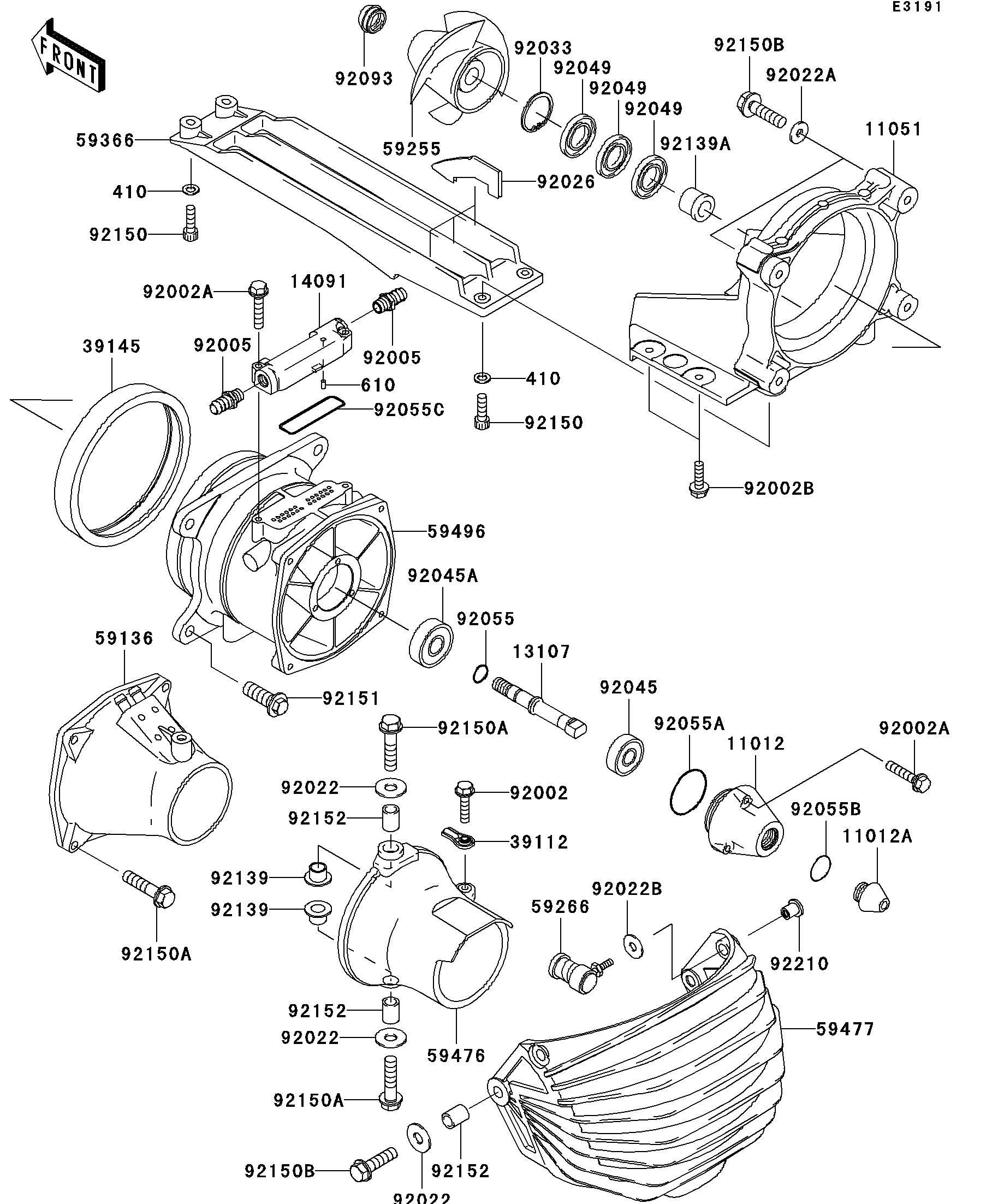

Parts Diagrams |
11012
11012
11012A
11012A
11051
11051
13107
13107
14091
14091
39112
39112
39145
39145
59136
59136
59255
59255
59266
59266
59366
59366
59476
59476
59477
59477
59496
59496
92002
92002
92002A
92002A
92002A
92002A
92002B
92002B
92005
92005
92005
92005
92022
92022
92022
92022
92022
92022
92022A
92022A
92022B
92022B
92026
92026
92033
92033
92045
92045
92045A
92045A
92049
92049
92049
92049
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92093
92093
92139
92139
92139
92139
92139A
92139A
92150
92150
92150
92150
92150A
92150A
92150A
92150A
92150A
92150A
92150B
92150B
92150B
92150B
92151
92151
92152
92152
92152
92152
92152
92152
92210
92210
410
410
410
410
610
610
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-3785 | 1 | ||
| CAP | 11012A | 11012-3786 | 1 | ||
| BRACKET | 11051 | 11051-3763 | 1 | ||
| SHAFT,JETPUMP | 13107 | 13107-3752 | 1 | ||
| COVER,VANE GUIDE | 14091 | 14091-3817 | 1 | ||
| RODEND-TIE | 39112 | 39112-3703 | 1 | ||
| TRIM-SEAL | 39145 | 39145-3742 | 1 | ||
| NOZZLE-PUMP | 59136 | 59136-3760 | 1 | ||
| IMPELLER-COMP | 59255 | 59255-3729 | 1 | ||
| JOINT-BALL | 59266 | 59266-3707 | 1 | ||
| GRATE | 59366 | 59366-3719 | 1 | ||
| NOZZLE-STRG | 59476 | 59476-3743 | 1 | ||
| BUCKET-REVERSE | 59477 | 59477-3712 | 1 | ||
| VANE-GUIDE | 59496 | 59496-3756 | 1 | ||
| BOLT,6X25 | 92002 | 92002-3714 | 1 | ||
| BOLT,6X30 | 92002A | 92002-3726 | 5 | ||
| BOLT,6X20 | 92002B | 92002-3755 | 4 | ||
| FITTING | 92005 | 92005-3714 | 2 | ||
| WASHER,PLAIN | 92022 | 92022-3026 | 4 | ||
| WASHER,8.4X23X2.5 | 92022A | 92022-3744 | 2 | ||
| WASHER | 92022B | 92022-567 | 1 | ||
| SPACER | 92026 | 92026-3742 | 3 | ||
| RING-SNAP | 92033 | 92033-3730 | 1 | ||
| BEARING-BALL,62022RD | 92045 | 92045-0112 | 1 | ||
| BEARING-BALL,6303R-6 | 92045A | 92045-3740 | 1 | ||
| SEAL-OIL | 92049 | 92049-3739 | 3 | ||
| RING-O,13.0X1.9 | 92055 | 92055-1011 | 1 | ||
| RING-O | 92055A | 92055-3741 | 1 | ||
| RING-O | 92055B | 92055-3744 | 1 | ||
| RING-O,70.2X74.0X1.90 | 92055C | 92055-3765 | 1 | ||
| SEAL | 92093 | 92093-3749 | 1 | ||
| BUSHING | 92139 | 92139-3701 | 2 | ||
| BUSHING | 92139A | 92139-3715 | 1 | ||
| BOLT,SOCKET,6X18 | 92150 | 92150-3775 | 4 | ||
| BOLT,8X35 | 92150A | 92150-3792 | 6 | ||
| BOLT,FLANGED,8X30 | 92150B | 92150-3803 | 4 | ||
| BOLT,10X30 | 92151 | 92151-3706 | 4 | ||
| COLLAR,8.2X11.8X15 | 92152 | 92152-3703 | 4 | ||
| NUT,6MM | 92210 | 92210-3789 | 1 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410S0600 | 4 | ||
| ROLLER,4X8 | 610 | 610A0408 | 1 |
