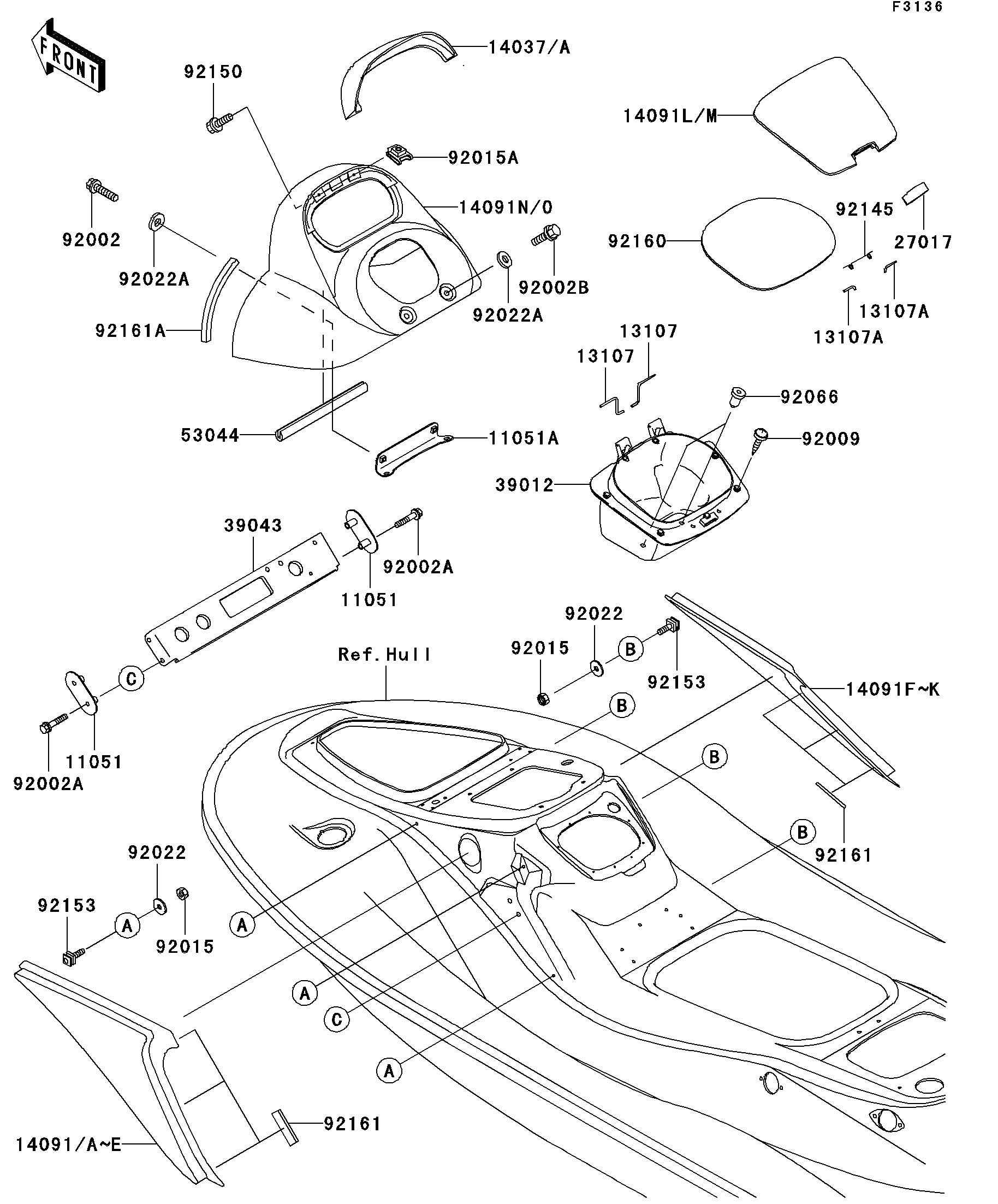

2007 STX-15F - Hull Middle Fittings

DOWNLOAD PDF
SELECT A NEW PART
11051
11051
11051
11051
11051A
11051A
13107
13107
13107
13107
13107A
13107A
13107A
13107A
14037A
14037A
14091B
14091B
14091H
14091H
14091M
14091M
14091O
14091O
27017
27017
39012
39012
39043
39043
53044
53044
92002
92002
92002A
92002A
92002A
92002A
92002B
92002B
92009
92009
92015
92015
92015
92015
92015A
92015A
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92066
92066
92145
92145
92150
92150
92153
92153
92153
92153
92160
92160
92161
92161
92161
92161
92161A
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CROSSMEMBER 11051 11051-3782 2
BRACKET 11051A 11051-3811 1
SHAFT 13107 13107-3761 2
SHAFT 13107A 13107-3769 2
SCREEN,METER,F.S.BLACK 14037A 14037-3709-378 1
COVER,SIDE,LH,M.N.BLUE 14091B 14091-3708-TK 1
COVER,SIDE,RH,M.N.BLUE 14091H 14091-3709-TK 1
COVER,CENTER STORAGE,J.WHITE 14091M 14091-3710-8C 1
COVER,HANDLE,F.S.BLACK 14091O 14091-3770-378 1
LOCK,CENTER STORAGE 27017 27017-3725 1
CASE-STORAGE 39012 39012-3735 1
CROSSMEMBER-COMP 39043 39043-3703 1
TRIM,L=180 53044 53044-3755 1
BOLT,6X25 92002 92002-3714 2
BOLT,6X30 92002A 92002-3726 4
BOLT,6X12 92002B 92002-3763 2
SCREW,TAPPING,5X20 92009 92009-3716 8
NUT,LOCK,5MM 92015 92015-3798 6
NUT,CLIP,5MM 92015A 92015-3830 2
WASHER,5X16X1.5 92022 92022-3041 6
WASHER,6.5X20X1.5 92022A 92022-3710 4
PLUG 92066 92066-3773 2
SPRING 92145 92145-3711 1
BOLT,5X16 92150 92150-3778 2
BOLT,5MM 92153 92153-3703 6
DAMPER 92160 92160-3933 1
DAMPER 92161 92161-3756 6
DAMPER 92161A 92161-3757 2
